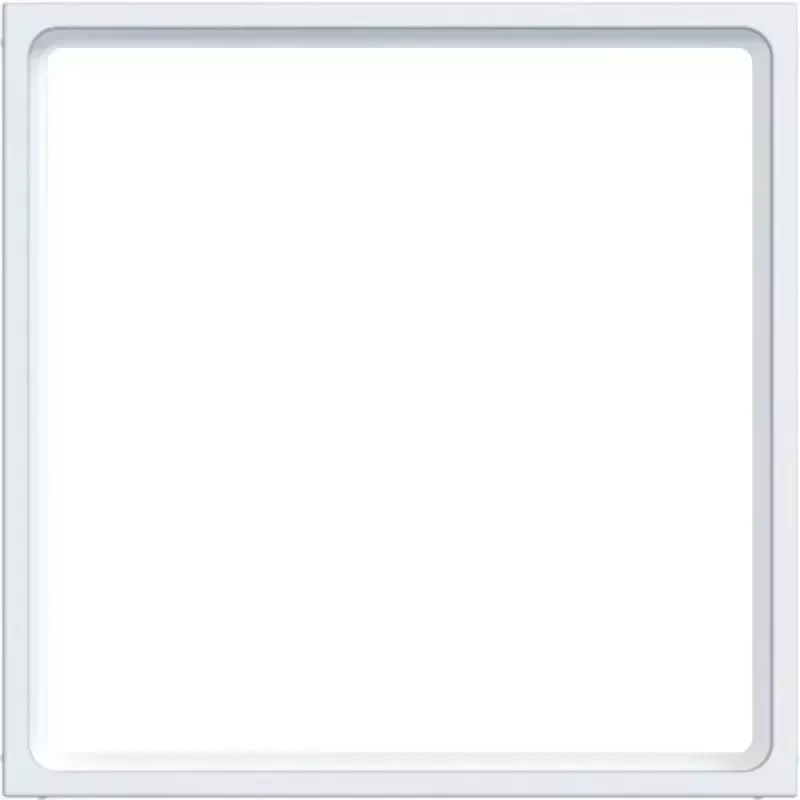

HAGER WAF7074WM anello intermedio placca centrale 51x51mm bianco polare

The HAGER WAF7074WM intermediate ring is a central plate designed for electrical installation in switch and socket systems. It provides a 51x51mm opening for a single module and fits into standard frames with clip-on mounting. Made of thermoplastic polycarbonate in polar white (RAL 9010), it offers a glossy, halogen-free, UV-resistant finish.

Key specifications

• Inner opening: 51 x 51 mm
• Outer frame: 71 x 71 mm
• Material: Thermoplastic (polycarbonate)
• Colour: Polar white (RAL 9010)
• Surface finish: Glossy
• Halogen-free: Yes
• UV-resistant: Yes
• Mounting: Clip-on
• Protection class: IP20
• Impact resistance: IK05
• Operating temperature: -5 to +45 °C
• Storage temperature: -25 to +55 °C
• Compatibility: Standard 50x50mm / 51x51mm modules
• Number of modules: 1
• Series: Hager WAF

Why choose it

This intermediate ring allows precise integration of a single module into a Hager WAF frame. Its robust thermoplastic construction and UV resistance ensure long-term durability in indoor installations.

Ideal use cases

• Residential electrical installations
• Commercial buildings
• Switch and socket systems requiring a 51x51mm central plate

Good to know

The ring is halogen-free and has an IP20 rating, suitable for dry indoor environments. It is designed for clip-on mounting without additional tools.
