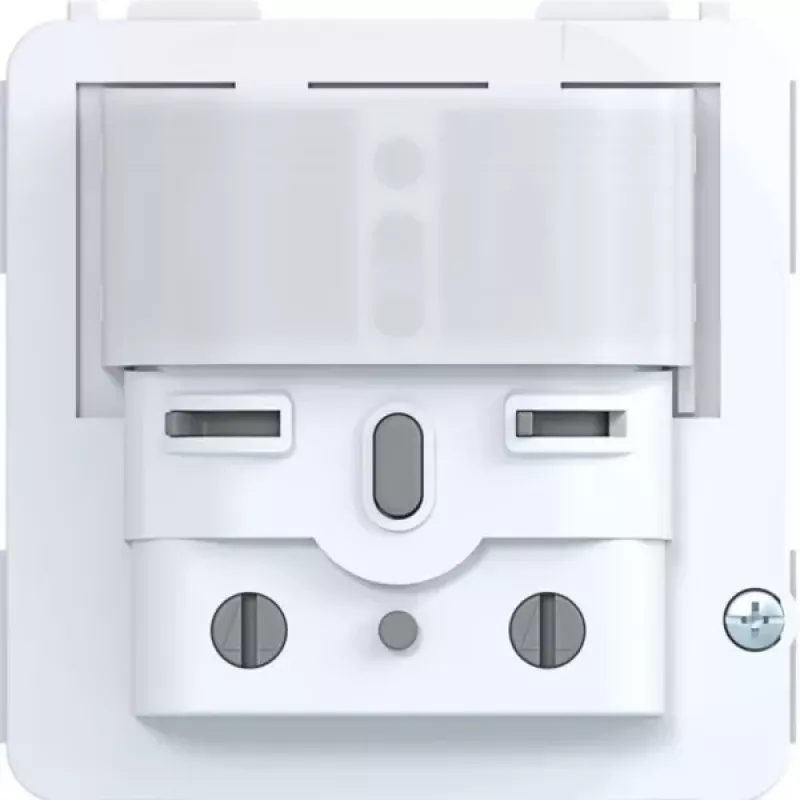

HAGER WAN1061 rilevatore di movimento da incasso, altezza di installazione 1,1 m, PIR, 180°, bianco

Automate lighting in corridors, stairwells, and utility rooms without complex wiring or unreliable detection. The HAGER WAN1061 motion detector uses passive infrared technology to switch lights based on presence and ambient brightness, reducing energy waste and improving convenience.

Who is it for

Electricians and building managers installing or upgrading lighting control in residential or commercial spaces. It suits flush-mounted boxes at a recommended height of 1.1 m, where a wide 180° detection angle covers typical room layouts.

Main features

• Passive infrared (PIR) sensor for reliable motion detection
• 180° detection angle with tangential range up to 10 m diameter
• Adjustable time delay from 5 seconds to 30 minutes
• Twilight setting from 5 to 1000 lux to prevent daytime activation
• Switches incandescent/halogen loads up to 2300 W or LED up to 400 W
• Flush-mounted design with UV-stabilized polycarbonate housing

Specifications

• Sensor technology: Passive Infrared (PIR)
• Mounting type: Flush-mounted
• Optimal installation height: 1.1 m
• Detection angle: 180°
• Detection range (tangential): 10 m diameter
• Detection range (radial): 6 m diameter
• Presence detection area at 1.1 m: 4 m diameter
• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching power incandescent/halogen: 2300 W
• Max. switching power LED: 400 W
• Max. switching current: 10 A (cos φ = 1)
• Time delay adjustment: 5 s – 30 min
• Twilight setting: 5 – 1000 lux
• International Protection (IP) code: IP20
• Operating temperature: -5 °C to +45 °C
• Product colour: White
• Housing material: UV-stabilized polycarbonate
• Halogen-free: Yes

Tips

For best coverage, install at exactly 1.1 m height and avoid pointing the sensor toward heat sources or reflective surfaces. Adjust the twilight setting after dark to match the desired ambient light threshold.
