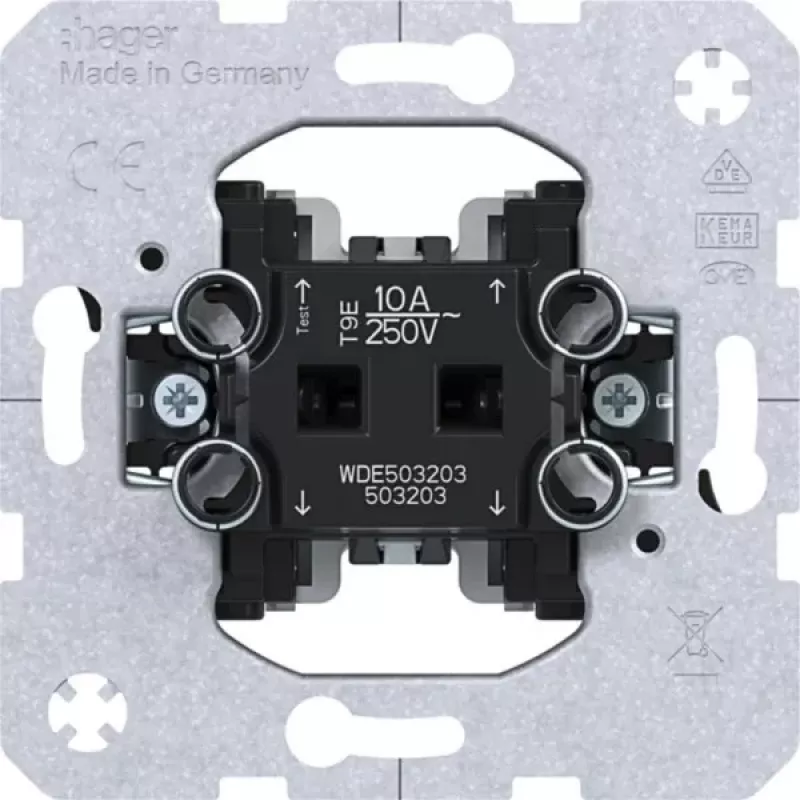

HAGER WDE503203 pulsante 1NO+1NC 10A 250V AC bianco polare

The HAGER WDE503203 combines a normally open and normally closed contact in a single push button module, simplifying two-function control in one flush-mounted unit. Its 10 A rating suits lighting and bell circuits without extra relays.

Highlights

• 1 NO + 1 NC contact configuration
• 10 A rated current at 250 V AC
• Momentary push button action
• Flush-mounted for Systo / WDE frames
• Polar white, halogen-free thermoplastic

In daily use

Press to close the NO contact and open the NC contact simultaneously, then release to return to rest. Screw terminals accept 1.5–2.5 mm² rigid conductors, and the IP20 rating suits indoor installations.

Full specifications

• Contact configuration: 1 NO + 1 NC
• Rated current: 10 A
• Rated voltage: 250 V AC
• Switch function: Momentary
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic, halogen-free
• Colour: Polar white
• Protection class: IP20
• Series: Hager Systo / WDE Design
• Operating temperature: -5 to +40 °C
• Terminal capacity: 1.5 - 2.5 mm² (rigid)
• Number of modules: 1
• Actuation type: Push button
• Compatibility: Hager Systo / WDE Design frames

Final note

A compact push button module for reliable switching in Hager Systo installations.
