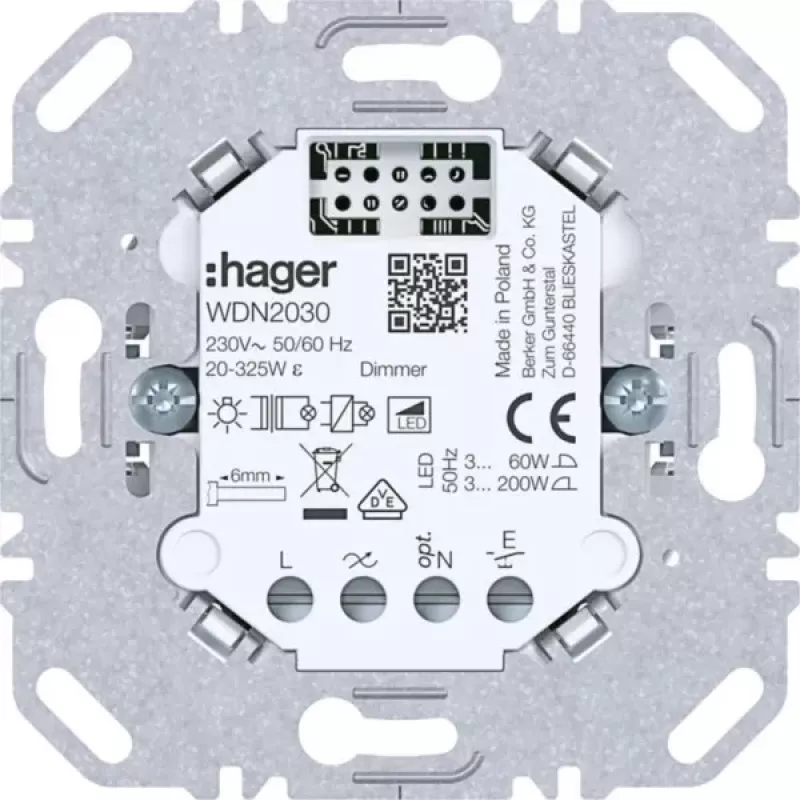

HAGER WDN2030 modulo dimmer universale, 1 posto, da incasso, 230V, 300W/100W LED

Controlling light intensity in a room often requires bulky external dimmers or incompatible modules. The HAGER WDN2030 is a flush-mounted universal dimmer insert that fits into standard Hager switch ranges A.x and C.x, enabling smooth dimming of incandescent, halogen, and dimmable LED/CFL lamps. It operates with a push-button (momentary switch) and uses leading/trailing edge phase-cut technology for broad compatibility.

Who is it for

Electricians and installers looking for a reliable dimming solution for residential or commercial projects where a clean, integrated look is required. It is also suitable for end users who want to upgrade their lighting control without replacing the entire switch system.

Main features

• Universal dimming: works with incandescent, HV halogen, LV halogen (electronic or conventional transformer), dimmable LED, and dimmable CFL.
• Flush-mounted design for use with Hager A.x and C.x switch ranges.
• 1-gang insert with push-button control (momentary switch).
• Leading and trailing edge dimming principle for compatibility with various load types.
• 2-wire connection (no neutral required).
• Protection against overload, short-circuit, and thermal issues.
• Rated voltage 230V AC, 50/60 Hz.

Specifications

• Product type: Universal Dimmer Insert
• Installation type: Flush-mounted (Unterputz)
• Dimming principle: Leading/Trailing Edge (Phase Cut)
• Number of channels: 1-gang
• Rated voltage: 230V AC
• Frequency: 50/60 Hz
• Max. power (incandescent/HV halogen): 300 W
• Max. power (LV halogen with electronic transformer): 300 VA
• Max. power (LV halogen with conventional transformer): 300 VA
• Max. power (dimmable LED): 100 W
• Max. power (dimmable CFL): 100 W
• Min. load: 20 W (incandescent/halogen), 3 W (LED/CFL)
• Control method: Push-button (Momentary Switch)
• Connection type: Screw terminals
• Wiring system: 2-wire (no neutral required)
• Protection features: Overload, short-circuit, thermal protection
• IP rating: IP20
• Compatibility: Hager switch ranges A.x, C.x
• Operating temperature: -5 to +45 °C

Tips

Ensure the connected load does not exceed the maximum ratings for the specific lamp type. For LED loads, a minimum of 3 W is required. The dimmer is designed for use with momentary push-buttons; do not connect to a standard toggle switch.
