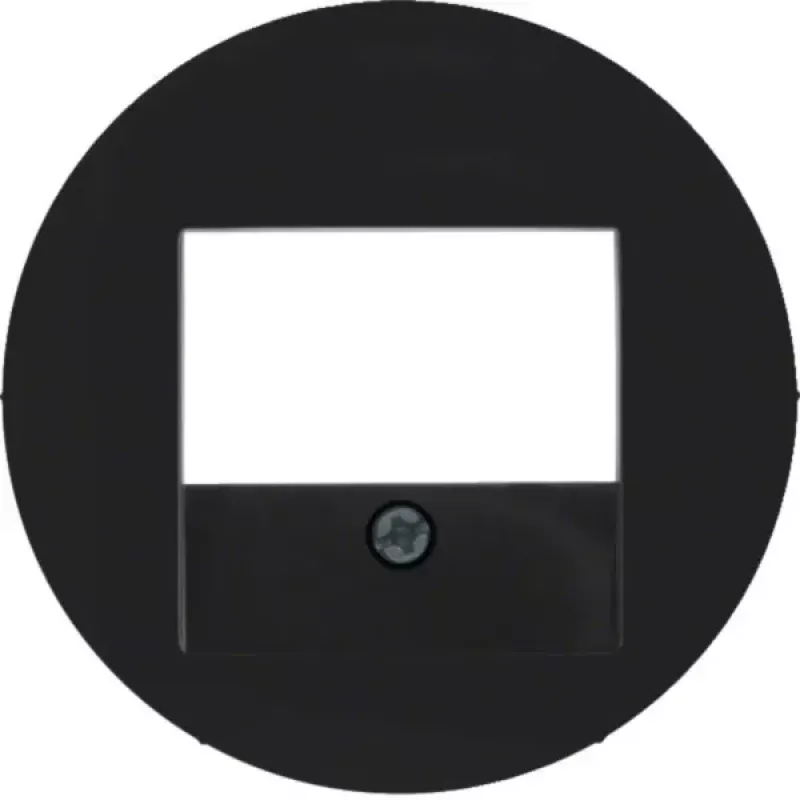

Hager WLF4000BG placca centrale con foro TAE, R.Classic, nero

The Hager WLF4000BG is a high-quality central plate designed for TAE (Telephone Connection) sockets, part of the System R.Classic design line. This black thermoplastic plate offers a sleek, matt finish and is ideal for modern residential and commercial installations.

Advantages

Durable and UV-resistant thermoplastic construction ensures long-lasting performance. The clamp mounting system allows for quick and secure snap-in installation. Halogen-free materials contribute to a safer environment.

Suitable for

• TAE socket inserts (3-pin, 6-pin)
• Use with Hager R.Classic frames
• Indoor applications requiring IP20 protection

Key specifications

• Product Type: Central Plate
• Application: TAE Socket
• Design Line: System R.Classic
• Colour: Black (RAL 9005)
• Material: Thermoplastic
• Surface Finish: Matt (Velvet Matt)
• Mounting Type: Clamp Mounting / Snap-in
• Number of Modules: 1
• Halogen-free: Yes
• UV-resistant: Yes
• Protection Class: IP20
• Impact Resistance: IK05
• Dimensions (Visible Area): 55 x 55 mm
• Overall Plate Dimensions: 71 x 71 mm
• Operating Temperature: -5 to +45 °C

Recommendations

For a complete installation, pair this central plate with a compatible Hager R.Classic frame and TAE insert. Ensure proper mounting for optimal performance.
