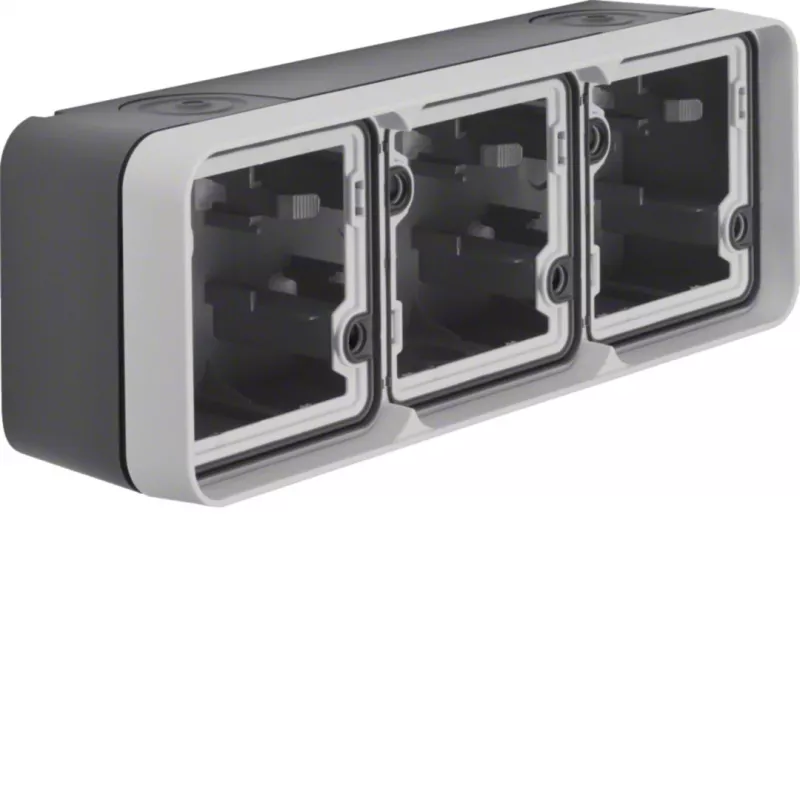

Hager WNA683 Contenitore da incasso a 3 posti orizzontale con cornice e passacavi, bianco puro

The Hager WNA683 is a high-quality surface-mounted housing base designed for the W.1 series, offering a 3-gang horizontal configuration with an integrated frame and cable entry. Manufactured from durable thermoplastic in polar white (RAL 9010), this unit provides reliable protection and a sleek finish for residential and commercial installations.

Advantages

This housing base ensures easy installation and secure fastening with screw mounting. Its IP44 rating protects against dust and splashing water, while IK07 impact resistance guarantees durability. The halogen-free material and UV resistance make it suitable for long-term use in various environments.

Suitable for

• Hager W.1 series flush-mounted inserts
• Surface-mounted electrical installations requiring 3-gang horizontal layout
• Indoor and outdoor applications where IP44 protection is needed

Key specifications

• Mounting Type: Surface-mounted (AP)
• Number of Units: 3-gang
• Orientation: Horizontal
• Material: Thermoplastic
• Colour: Polar White (RAL 9010)
• IP Protection Class: IP44
• IK Impact Resistance: IK07
• Halogen-Free: Yes
• With Frame: Yes
• With Cable Entry: Yes (integrated)
• Glow Wire Test: 850 °C
• Operating Temperature: -5 to +40 °C
• Storage Temperature: -25 to +50 °C
• Type of Fastening: Screw fastening
• Surface Finish: Matt
• UV Resistant: Yes

Recommendations

For optimal performance, pair this housing base with Hager W.1 series inserts. Ensure proper sealing for outdoor use to maintain IP44 protection.
