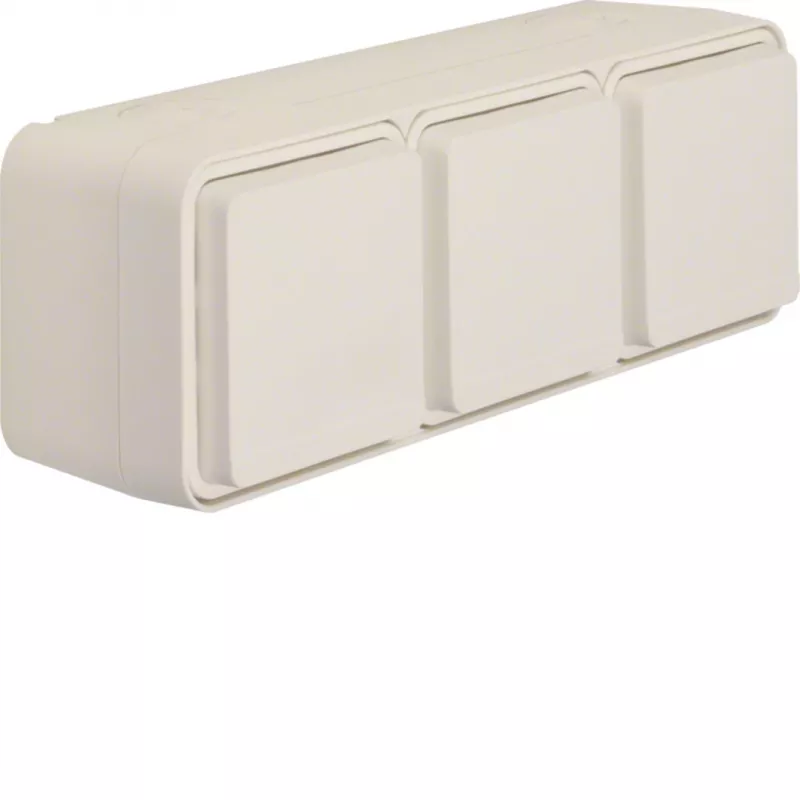

Hager WNC143B presa SCHUKO tripla da incasso, orizzontale, bianco polare

In surface-mounted installations where multiple devices need power from one point, a single socket is often not enough. The Hager WNC143B solves this by providing three Schuko sockets in a horizontal arrangement, eliminating the need for multiple separate outlets or trailing extension leads.

Who is it for

Electricians and installers working on surface-mounted wiring in residential, commercial, or light industrial environments. It suits renovation projects where chasing walls is impractical, as well as workshops, garages, and utility areas that require a robust triple power point.

Main features

• Three Schuko (Type F) sockets in a horizontal layout
• Surface-mounted (AP) design for easy installation on walls or panels
• Polar white thermoplastic housing, halogen-free
• Rated for 250 V AC, 16 A, 50/60 Hz
• Screw terminals for secure wiring
• IP20 protection, suitable for indoor use
• Impact resistance IK02
• Operating temperature range -5 to +40 °C

Specifications

• Brand: Hager
• Model: WNC143B
• MPN: WNC143B
• EAN: 3250610102251
• Socket type: Schuko (Type F)
• Sockets quantity: 3
• Mounting type: Surface-mounted
• Orientation: Horizontal
• Colour: Polar White
• Material: Thermoplastic
• Halogen-free: Yes
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Degree of protection: IP20
• Connection type: Screw terminals
• Impact resistance: IK02
• Operating temperature: -5 to +40 °C

Tips

Ensure the mounting surface is flat and stable. Use appropriate cable glands or conduits to maintain the IP20 rating. For installations requiring child protection, consider adding socket covers or selecting a model with increased touch protection.
