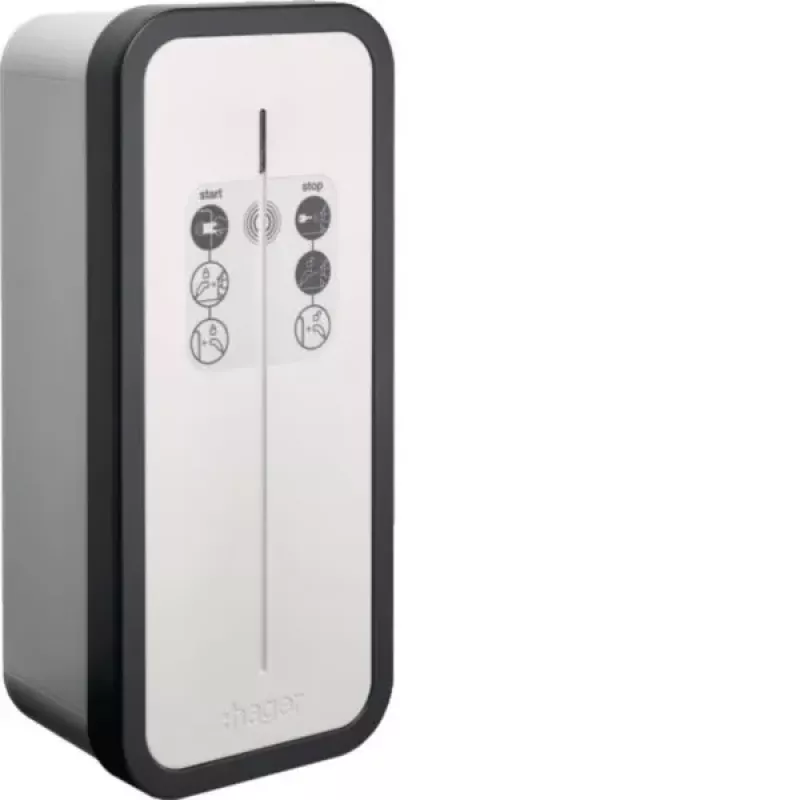

Hager XEV1R22T2ER Witty Share stazione di ricarica EV 22 kW OCPP RFID gestione dei carichi

The Hager XEV1R22T2ER Witty Share is a professional-grade electric vehicle charging station designed for commercial and residential use. With a maximum charging power of 22 kW and support for OCPP 1.6 J, it enables intelligent load management and RFID-based access control. The integrated MID-certified energy meter ensures accurate billing, while the robust IP55 and IK10 ratings guarantee durability in outdoor environments.

Advantages

This charging station offers dynamic load management (DLM) to optimize energy distribution, reducing grid strain and operational costs. The integrated 6mA DC fault current detection enhances safety. Its compact wall-mounted design and connectivity options (Ethernet, Wi-Fi) make it easy to integrate into existing networks.

Suitable for

• Commercial parking lots and fleet charging
• Apartment complexes and multi-dwelling units
• Office buildings with employee EV charging
• Public charging infrastructure

Key specifications

• Max. Charging Power: 22 kW
• Connector Type: Type 2 Socket
• Phases: 3-phase
• Max. Current: 32 A
• Nominal Voltage: 400 V AC
• Communication Protocol: OCPP 1.6 J
• Authentication: RFID
• Load Management: Dynamic Load Management (DLM)
• DC Fault Current Detection: 6 mA
• IP Protection: IP55
• IK Protection: IK10
• Installation: Wall-mounted
• Connectivity: Ethernet (RJ45), Wi-Fi
• Energy Meter: Integrated, MID certified
• Operating Temperature: -30°C to +50°C
• Housing Material: Polycarbonate
• Status Indicator: LED

Recommendations

For optimal performance, pair with a compatible OCPP backend system and ensure proper electrical installation by a certified electrician. The integrated load management is ideal for sites with multiple charging points.
