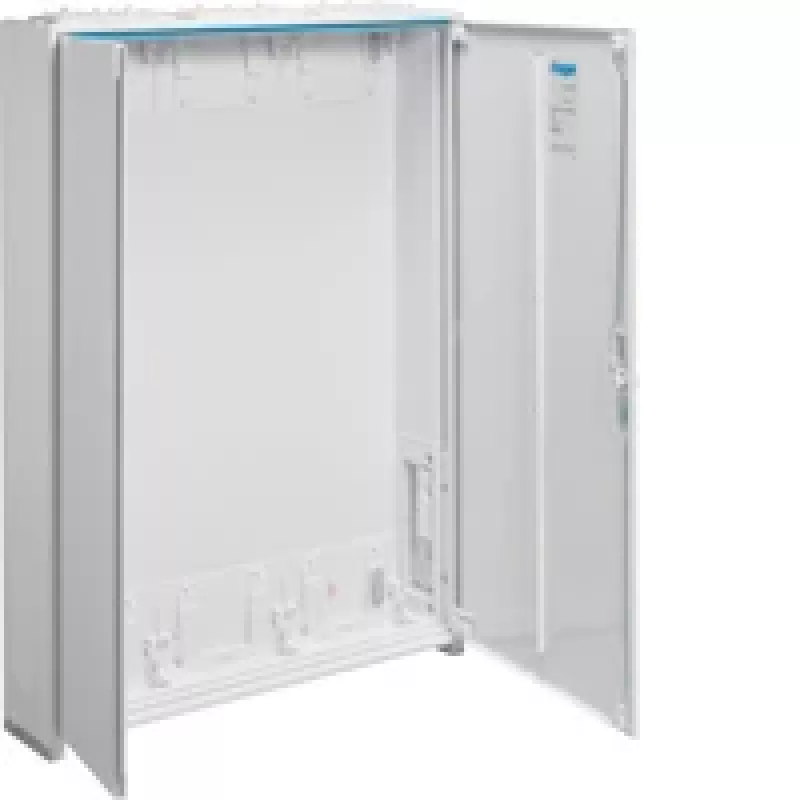

Hager ZB33ES quadro universale 800x160x1100 mm bianco IP44

The Hager ZB33ES is a high-quality universal distribution cabinet designed for electrical distribution, metering, and control systems. With dimensions of 800 mm width, 160 mm depth, and 1100 mm height, this cabinet offers ample space for organizing and protecting electrical components. Its robust steel sheet construction and IP44 protection class ensure durability and safety in various environments.

Advantages

This distribution cabinet provides reliable protection against dust and splashing water, making it suitable for indoor and outdoor installations. The steel door with a 180° opening angle allows easy access, while the standard double-bit lock ensures security. The cabinet can be surface-mounted or flush-mounted, offering flexibility in installation.

Suitable for

• Electrical distribution panels
• Metering cabinets
• Control systems in commercial and industrial buildings

Key specifications

• Brand: Hager
• Model: ZB33ES
• EAN: 3250617620673
• Dimensions: 800 x 160 x 1100 mm (WxDxH)
• Material: Steel sheet
• Colour: White (RAL 9010)
• Protection class: IP44
• Impact resistance: IK09
• Number of doors: 2
• Rated voltage: 400 V AC
• Rated current: Up to 250 A
• Standards: IEC 61439-1/-2/-3, DIN VDE 0603-1

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This cabinet is ideal for use in commercial and industrial settings where robust protection and easy access are required.
