HAGER ZH32ES campo contatore completo, 1 campo, eHZ, altezza 1050mm

Complete metering field with 63 A 5-pole busbar and 3×12 module distribution rows, built for electronic household meters (eHZ) in residential and commercial applications.

Overview

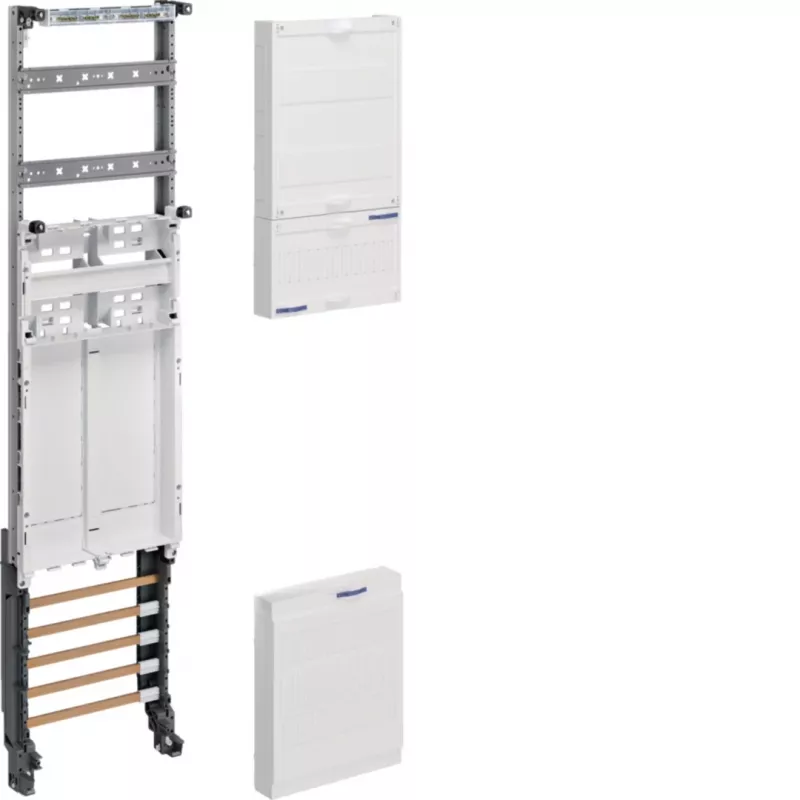

The HAGER ZH32ES is a single-field complete metering field designed for integration into meter cabinets. It accommodates one electronic household meter (eHZ) and provides a reserve space, with a total height of 1050 mm. The enclosure is made of sheet steel with a pure white RAL 9010 finish.

What stands out

• Rated current of 63 A on a 5-pole busbar system supports demanding residential and commercial loads.
• Three distribution rows of 12 modules each offer ample space for circuit breakers and other devices.
• Upper connection space of 150 mm and meter space of 450 mm ensure comfortable wiring and meter installation.
• Complies with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4100 for reliable metering installations.

Technical details

• Product type: Complete metering field
• Number of fields: 1
• Meter type compatibility: Electronic household meter (eHZ)
• Reserve space: Yes
• Rated current (busbar): 63 A
• Busbar system: 5-pole
• Number of meter places: 1
• Distribution rows: 3 × 12 modules
• Material: Sheet steel
• Colour: RAL 9010 (pure white)
• Upper connection space height: 150 mm
• Meter space height: 450 mm
• Lower connection/distribution space height: 450 mm
• Mounting type: Internal component for meter cabinets
• Application: Residential and commercial metering

Our verdict

A robust and compliant metering field that simplifies eHZ installations, with generous space and a clean white finish.
