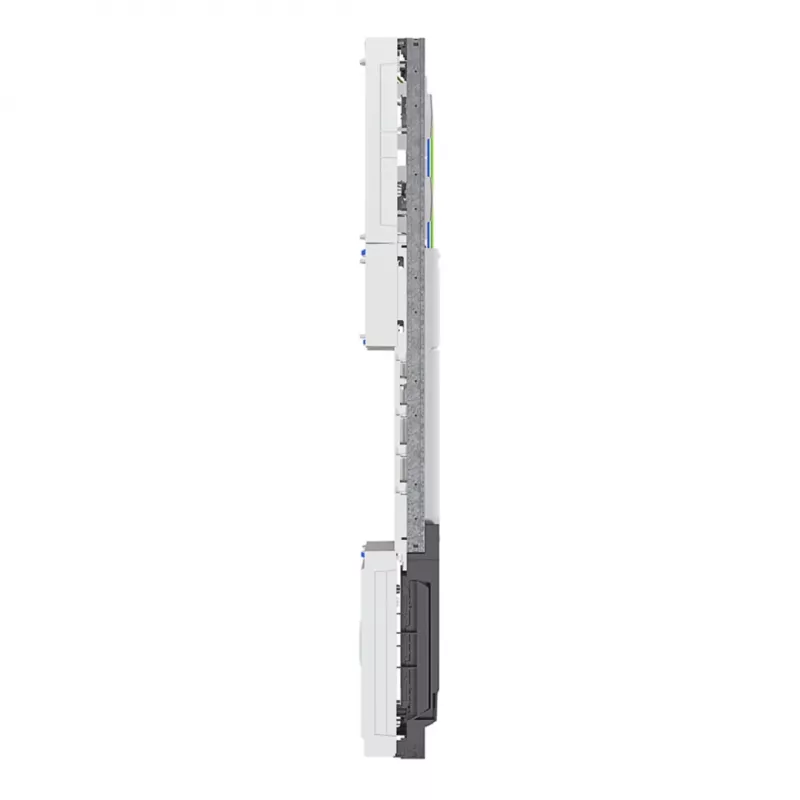

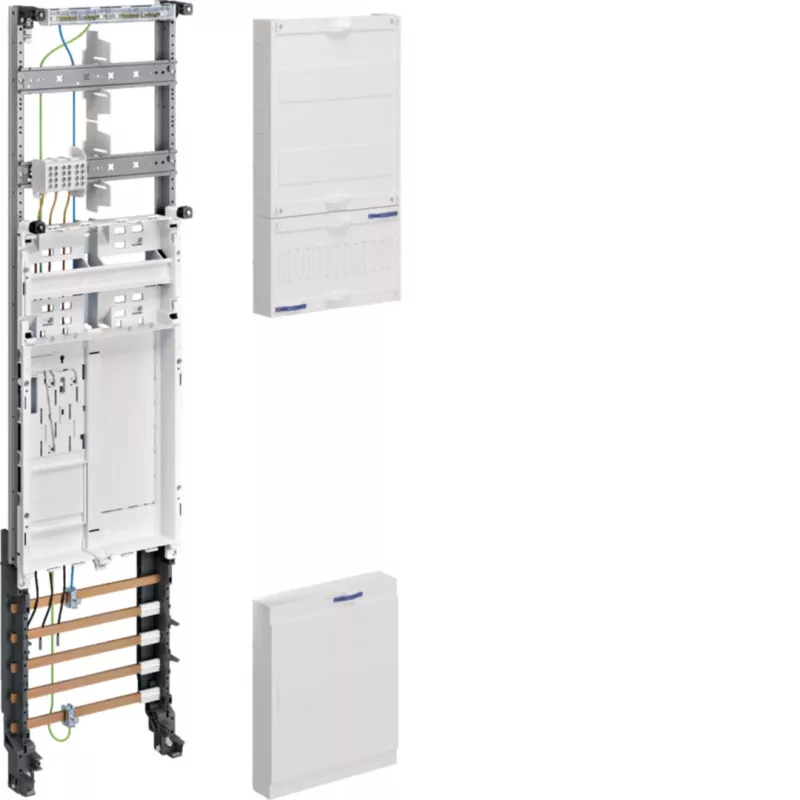

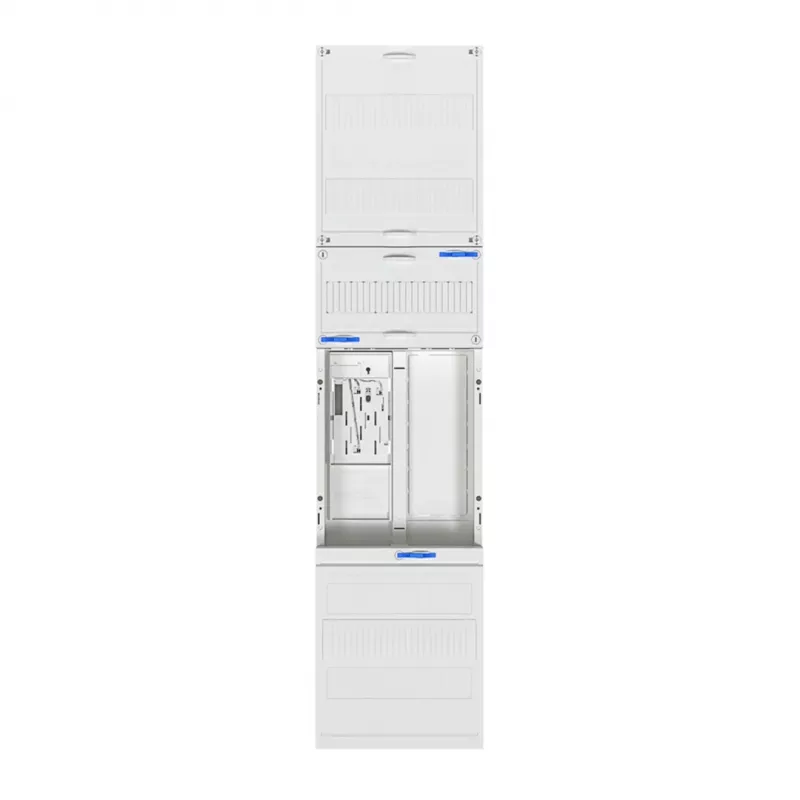

HAGER ZH3EN27 quadro contatore completo, 1 posto contatore, BKE-I, Universal Z, 1 campo, altezza 1050 mm

Electricians and panel builders installing a residential or commercial metering point will find the HAGER ZH3EN27 complete meter panel a practical, ready-to-wire solution. This 1-field panel is pre-configured for a single eHZ electronic household meter using the BKE-I mounting system, with a universal Z distribution layout and a height of 1050 mm.

Key specifications

• Number of meter positions: 1
• Meter mounting system: BKE-I (for eHZ electronic household meters)
• Panel width: 1-field (250 mm)
• Panel height: 1050 mm
• Installation depth: 120 mm
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Busbar system: 5-pole
• Pre-wired for meter connection: Yes
• Material: Sheet steel, powder-coated
• Cable entry: Top and bottom
• Protection class (internal): IP2XC

Why choose it

The panel arrives pre-wired for the meter connection, reducing on-site assembly time. Its universal Z design suits standard residential and commercial metering applications, and the BKE-I system allows quick installation of eHZ meters without additional adapters.

Ideal use cases

• New residential service entrances requiring a single eHZ meter position
• Commercial sub-metering points with a 63 A supply
• Retrofit projects where a complete, pre-wired panel simplifies replacement

Good to know

The steel enclosure is powder-coated for durability, with cable entry from both top and bottom to accommodate different installation layouts. Internal protection class IP2XC provides basic protection against contact with live parts.
