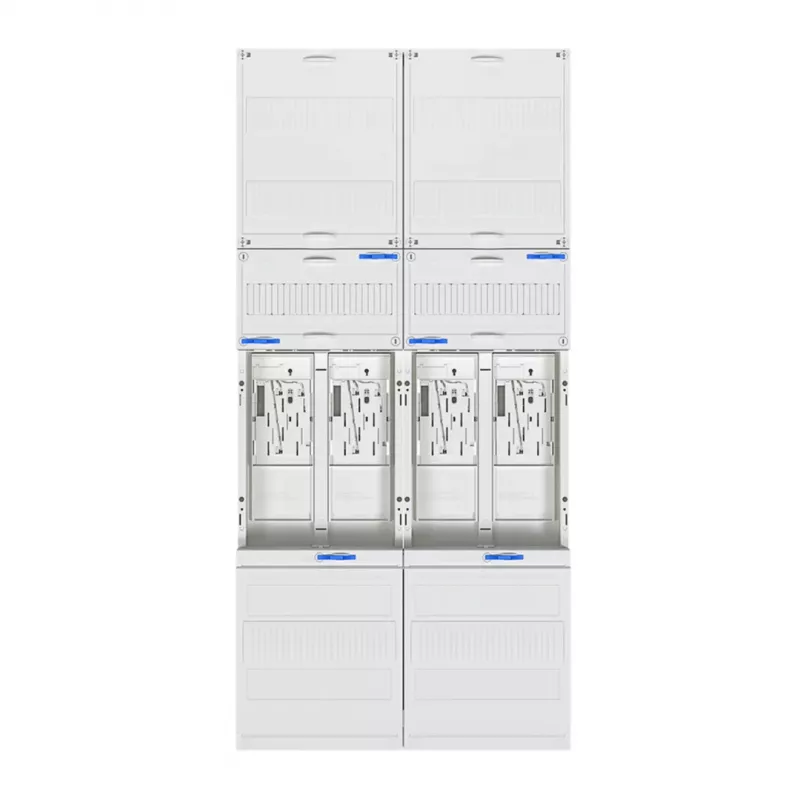

HAGER ZK3EN24 cablaggio universale Z quadro contatore completo, 4 posti contatore, BKE-I, larghezza 2 campi, 1050mm

The HAGER ZK3EN24 complete metering field stands out with its universal Z-wiring and four BKE-I mounting positions for electronic household meters, all in a compact two-field-wide enclosure. This configuration simplifies installation in residential and commercial meter cabinets, providing a ready-to-wire solution that reduces on-site assembly time.

Highlights

• Four metering positions with BKE-I brackets for eHZ meters
• Universal Z-wiring design for flexible connection
• Two-field wide, 1050 mm high sheet steel enclosure
• 5-pole busbar system included
• Rated voltage 230/400 V AC, current up to 63 A

In daily use

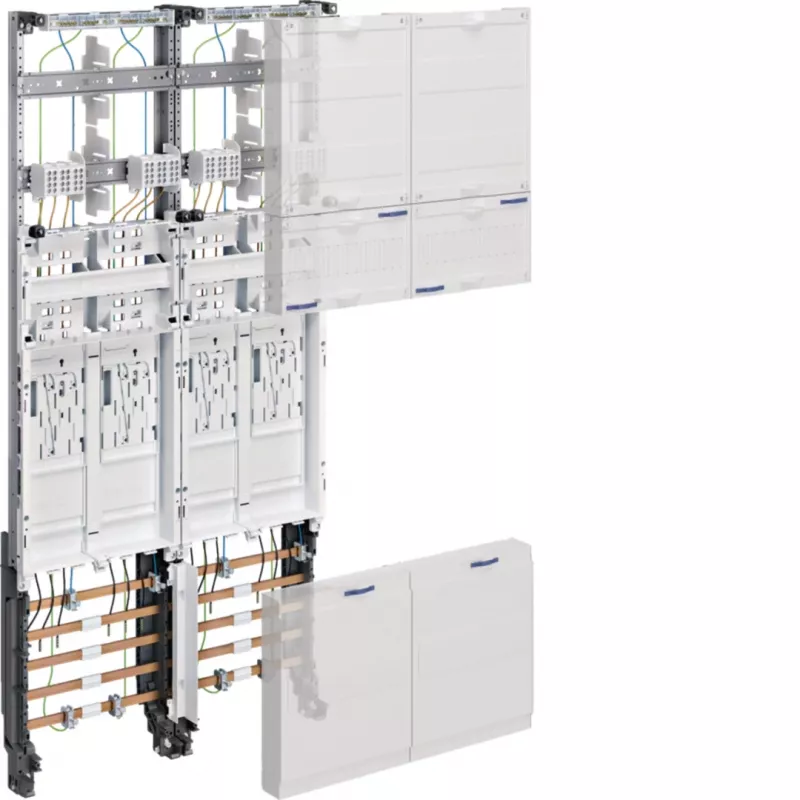

The field integrates into standard meter cabinets, offering a clean layout for multiple meters. The Z-wiring allows straightforward connection of incoming and outgoing circuits, while the included PE/N terminals and screw-type main terminals ensure secure wiring. The white RAL 9010 finish matches common distribution enclosures.

Full specifications

• Product type: Complete metering field
• Number of metering positions: 4
• Meter mounting type: BKE-I
• Wiring design: Universal Z-wiring
• Number of fields: 2-field wide
• Height: 1050 mm
• Width: 500 mm
• Depth: 125 mm
• Material: Sheet steel
• Colour: RAL 9010 (pure white)
• Rated voltage: 230/400 V AC
• Rated current: up to 63 A
• Busbar system: 5-pole busbar included
• Main incoming terminal type: Screw terminals
• PE/N terminals: Included

Final note

The HAGER ZK3EN24 provides a complete, pre-wired metering field solution for efficient installation in modern electrical distribution systems.
