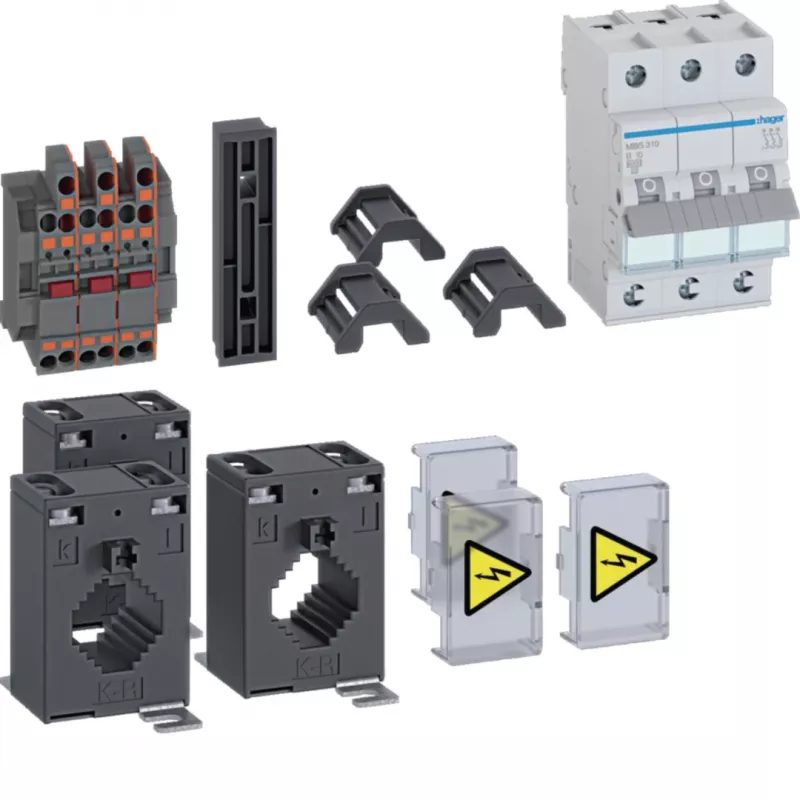

HAGER ZY2505LM set trasformatore di corrente 250/5 A, classe 1, 2,5 VA

Current transformer kit for load management and energy measurement, delivering a 250 A primary to 5 A secondary ratio with Class 1 accuracy. This HAGER ZY2505LM is engineered for reliable current monitoring in electrical distribution systems.

Advantages

Designed for DIN rail or screw mounting, this transformer features a 20.5 mm pass-through opening for easy installation. It operates at 50/60 Hz with a 2.5 VA rated burden, ensuring stable performance in demanding environments.

Suitable for

• Load management applications
• Energy measurement systems
• Electrical distribution panels

Key specifications

• Primary current: 250 A
• Secondary current: 5 A
• Accuracy class: Class 1
• Rated power: 2.5 VA
• Max operating voltage: 0.72 kV
• Insulation voltage: 3 kV
• Frequency: 50/60 Hz
• Mounting: DIN rail, screw mounting
• Pass-through opening diameter: 20.5 mm
• Number of CTs included: 1
• Connection type: Screw terminals
• Operating temperature: -5 to +50 °C
• Protection class: IP20
• Standard compliance: IEC 61869-2

Recommendations

Ideal for professionals needing accurate current measurement in compact spaces, this kit offers straightforward integration with existing metering systems.
