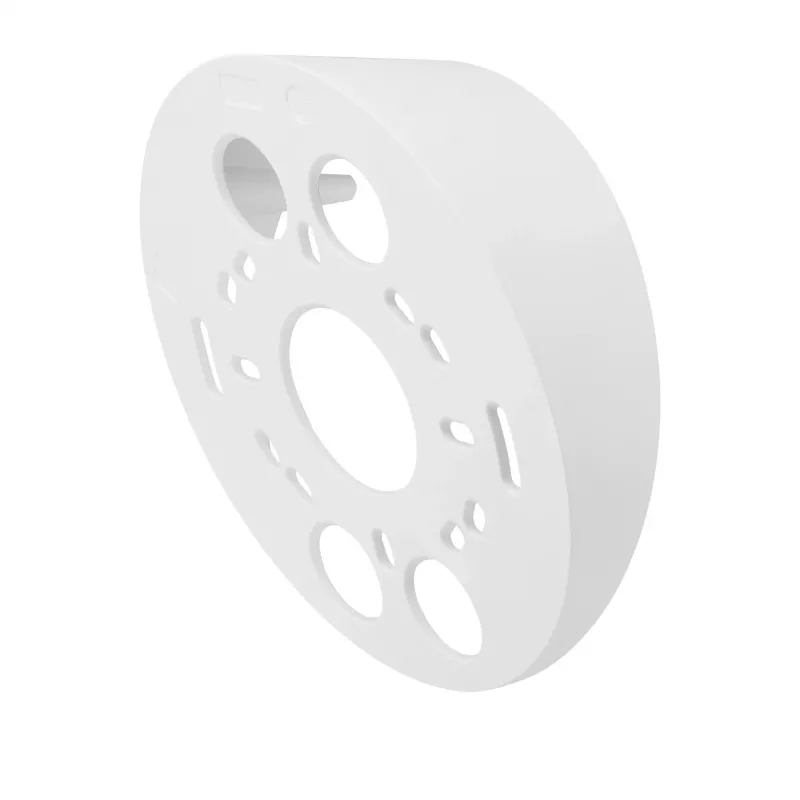

Hanwha Vision SBP-160TMW1 adattatore di montaggio inclinato, bianco

Adjusting the viewing angle of a dome camera on a pendant or wall mount often requires a dedicated adapter. The Hanwha Vision SBP-160TMW1 Tilted Mount Adapter provides a 15° tilt to position compatible Hanwha Vision Wisenet dome cameras precisely where needed.

Who is it for

Installers and integrators working with Hanwha Vision Wisenet X, P, Q, or L series dome cameras who need to angle the camera downward or upward on a pendant or wall mount for optimal coverage.

Main features

• 15° tilt angle for flexible camera positioning
• Die-cast aluminum construction with white RAL9003 finish
• 1.5" NPT thread for secure connection to standard mounts
• Suitable for indoor and outdoor use
• Operating temperature range: -50°C to +55°C

Specifications

• Product Type: Tilted Mount Adapter
• Compatibility: Hanwha Vision Wisenet X / P / Q / L series Dome Cameras
• Mounting Type: For Pendant Mounts, Wall Mounts
• Tilt Angle: 15°
• Material: Die-cast Aluminum
• Color: White (RAL9003)
• Connection Thread: 1.5" NPT
• Application Environment: Indoor / Outdoor
• Operating Temperature: -50°C to +55°C
• Operating Humidity: 0% to 90% RH (non-condensing)
• Dimensions (Diameter x Height): Ø160 x 48.5 mm
• Weight: 220 g

Tips

Ensure the mount you are attaching to has a matching 1.5" NPT thread. The adapter is designed for use with compatible Hanwha Vision brackets; verify compatibility with your specific camera model before installation.
