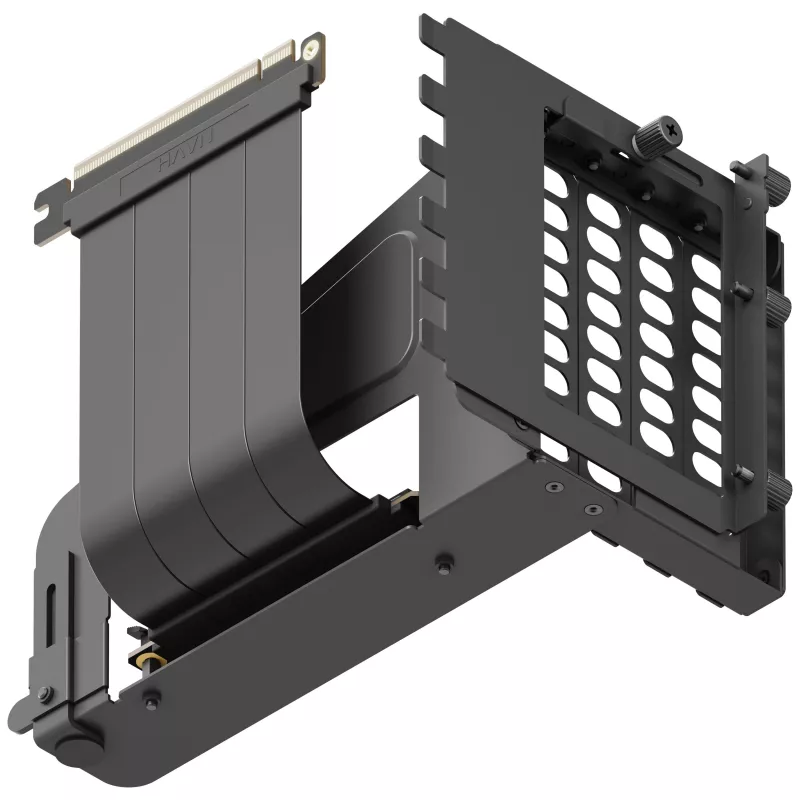

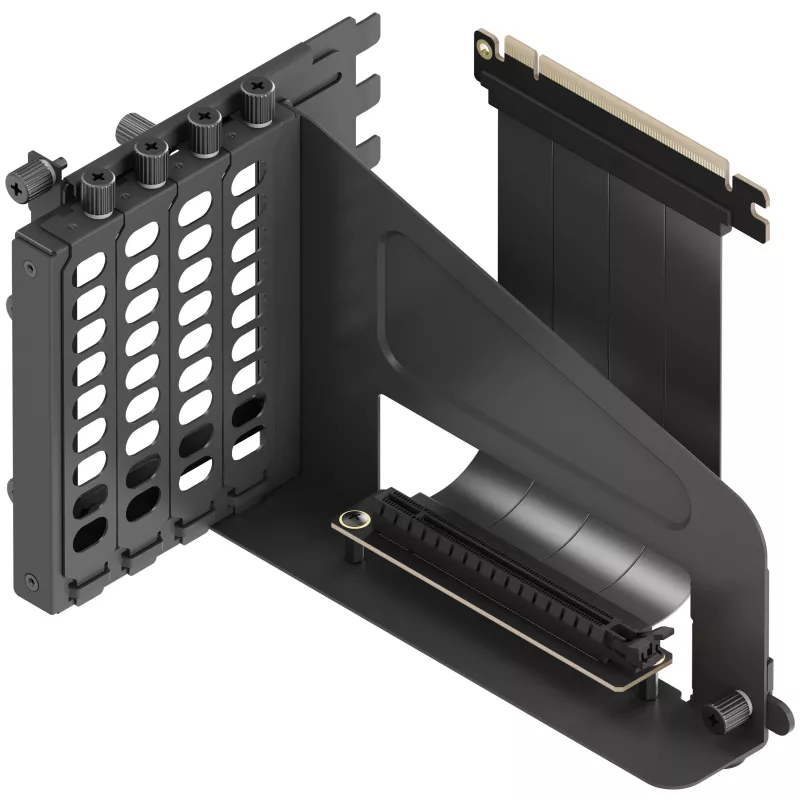

HAVN Universal Vertical GPU Kit - nero

The HAVN Universal Vertical GPU Kit allows you to mount your graphics card vertically, showcasing its design and improving airflow within your PC case. This kit includes a sturdy steel bracket and a high-quality PCIe 4.0 x16 riser cable for optimal performance.

Advantages

Vertical mounting enhances GPU aesthetics and can improve cooling by directing airflow away from the side panel. The PCIe 4.0 riser cable ensures full bandwidth for modern graphics cards, while the universal design fits most ATX cases with seven free PCIe slots.

Suitable for

• Gamers and PC enthusiasts looking to display their GPU
• Users with ATX cases that have at least seven PCIe slots
• Builds requiring a PCIe 4.0 riser cable for maximum data transfer

Key specifications

• Product Type: Vertical GPU Mounting Kit
• Color: Black
• Material: Steel (bracket), FPC (riser cable)
• PCIe Standard: PCIe 4.0 x16
• Riser Cable Length: 200 mm
• Required PCIe Slots: 7 (full-height)
• Compatibility: Universal, ATX cases with 7 free PCIe slots and sufficient internal space
• Mounting Orientation: Vertical
• GPU Support: Up to 3-slot GPUs
• Installation Type: Screw-in
• Included Components: Vertical GPU bracket, PCIe 4.0 x16 riser cable, mounting screws
• Riser Cable Type: Flat ribbon cable
• Connector Type: PCIe x16 Male to PCIe x16 Female
• Max Data Transfer Rate: 64 GB/s (PCIe 4.0 x16)
• Backward Compatibility: PCIe 3.0, PCIe 2.0, PCIe 1.0
• Design Features: Sturdy construction, optimized for airflow

Recommendations

For best results, ensure your case has adequate clearance for vertical GPU mounting and that the riser cable is securely connected. This kit is ideal for showcasing RGB GPUs or improving airflow in compact builds.
