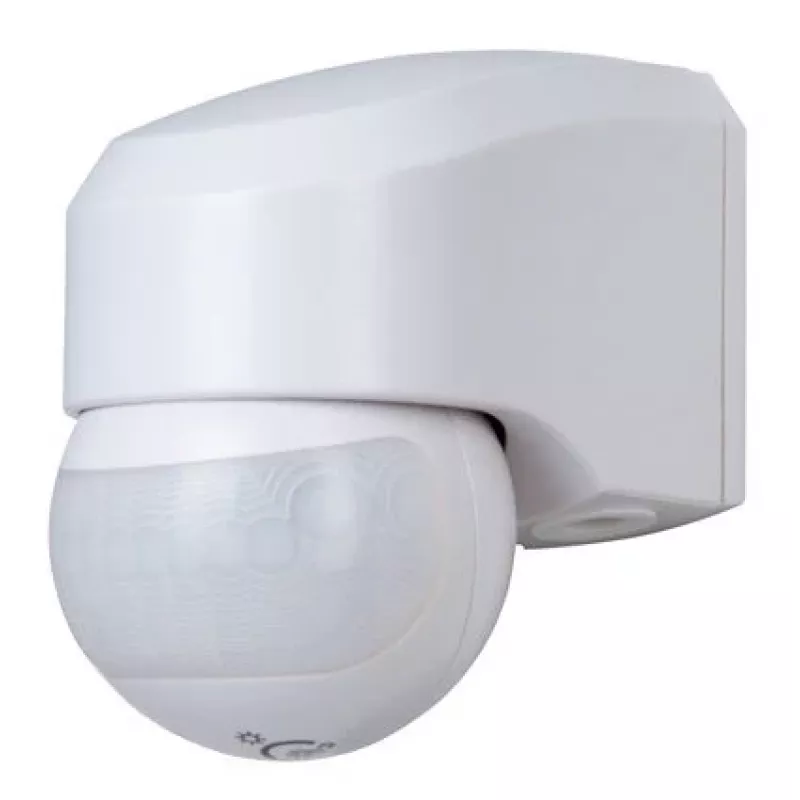

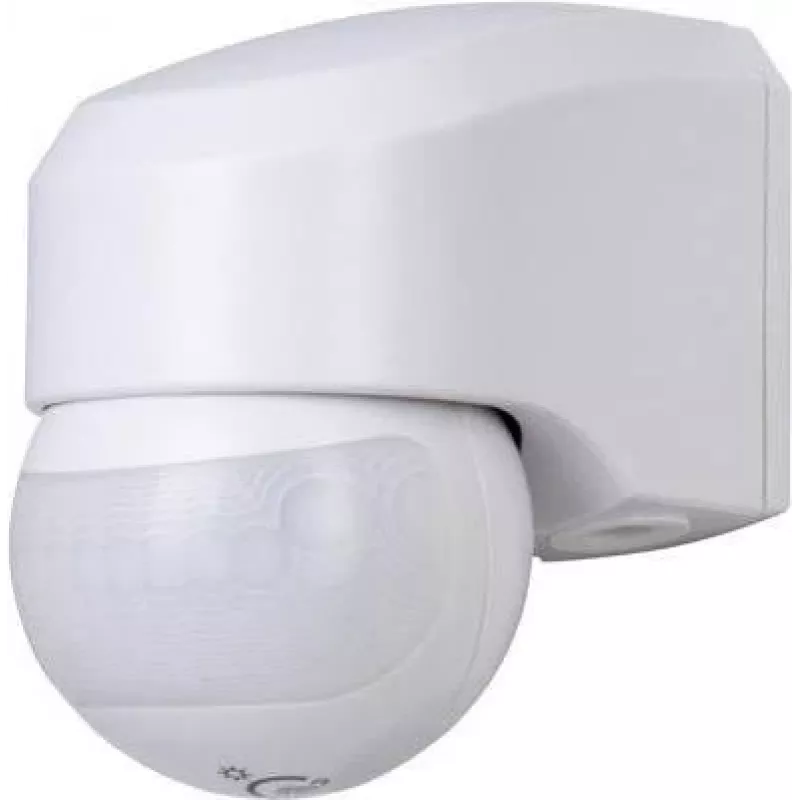

HEINRICH KOPP 823802014 rilevatore di movimento PIR, cablato, montaggio a parete, bianco

The Kopp 823802014 stands out for its wide 180° detection angle and 12 m reach, making it suitable for both indoor and outdoor use without needing extra sensors. Its UV-resistant housing and IP44 rating handle covered outdoor spots, while the adjustable twilight and time settings let you fine-tune when lights switch on.

Highlights

• Passive infrared (PIR) sensor with 180° detection angle
• Adjustable time delay from 10 seconds to 15 minutes
• Twilight threshold adjustable from 3 to 2000 lux
• Switching capacity up to 1200 W (incandescent), 300 W LED/fluorescent
• IP44 protection for indoor and covered outdoor use

In daily use

Mount the sensor at 1.8–2.5 m height on a wall. It connects directly to 230 V AC and switches lighting loads based on movement and ambient light. The time and twilight dials let you prevent false triggers during daylight and keep lights on only as long as needed.

Full specifications

• Sensor type: Passive Infrared (PIR)
• Connectivity: Wired
• Mounting: Wall, surface-mounted
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity: 1200 W resistive, 300 W LED/fluorescent
• Detection angle: 180°
• Detection range: 12 m
• IP rating: IP44
• Time setting: 10 s – 15 min
• Twilight setting: 3 – 2000 lux
• Recommended installation height: 1.8 – 2.5 m
• Housing material: UV-resistant plastic
• Protection class: II
• Operating temperature: -20 °C to +40 °C
• Dimensions (W x H x D): 80 x 80 x 55 mm

Final note

A practical wired motion detector for automatic lighting control in hallways, entrances, and outdoor areas.
