HEINRICH KOPP deviatore 10A 250V AC da incasso morsetti a vite IP20 termoplastica bianco per HK05 HK07 serie alluminio 503600006

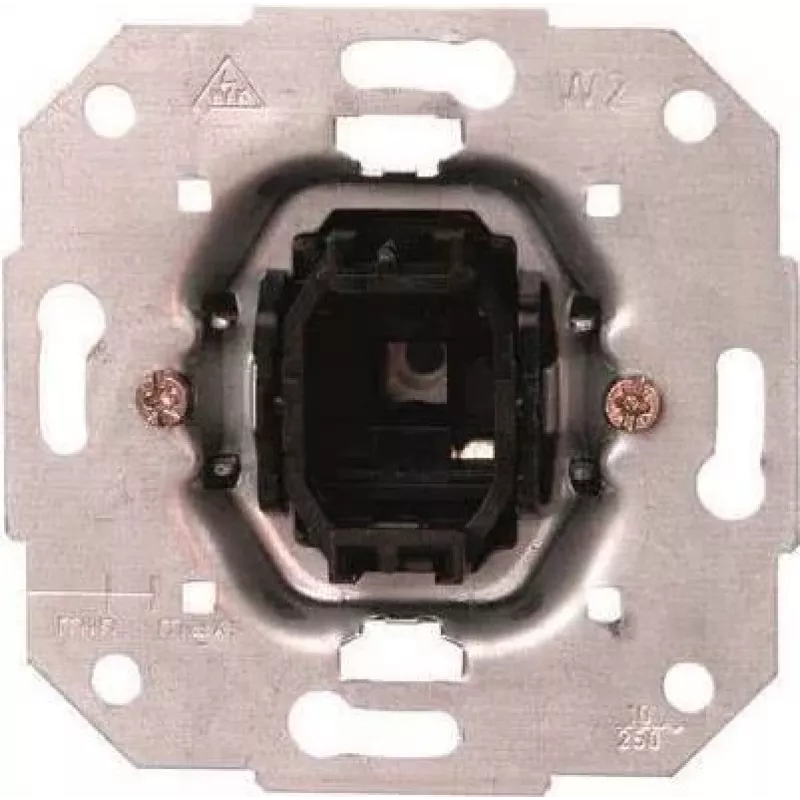

The HEINRICH KOPP 503600006 is a high-quality changeover switch (two-way switch) designed for flush-mounted installation. It is part of the Kopp HK05 and HK07 series, compatible with the Aluminium aesthetic rocker/frame range. This switch features a single-pole double-throw (SPDT) switching function, rated for 10 A at 250 V AC, and is built with a thermoplastic housing in white. It uses screw terminals for secure connections and is suitable for indoor dry rooms. The switch is halogen-free, VDE and CE certified, and offers an installation depth of approximately 32 mm.

Advantages

Reliable SPDT switching for versatile control of lighting circuits. Flush-mounted design for a clean, integrated look. Screw terminals ensure stable and durable connections. Thermoplastic housing provides good insulation and durability. Halogen-free construction meets modern environmental standards. VDE and CE certifications guarantee safety and quality.

Suitable for

• Indoor lighting control in residential and commercial buildings
• Two-way switching applications (e.g., staircases, corridors)
• Integration with Kopp HK05/HK07 series rockers and frames
• Flush-mounted installations in dry rooms

Key specifications

• Switch Type: Changeover Switch (Two-Way Switch)
• Switching Function: SPDT (Single Pole Double Throw)
• Number of Poles: 1-pole
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Mounting Type: Flush-mounted (Unterputz)
• Connection Type: Screw Terminals
• Series Compatibility: Kopp HK05, Kopp HK07
• Material (Housing): Thermoplastic
• Color (Insert): White
• Aesthetic Series Name: Aluminium (for compatible rockers/frames)
• Number of Rockers: 1
• Protection Class: IP20
• Halogen-free: Yes
• Terminal Capacity: Up to 2.5 mm² (solid conductors)
• Installation Depth: Approx. 32 mm
• Operating Method: Rocker/Toggle
• Application Area: Indoor, Dry Rooms
• Certification: VDE, CE

Recommendations

For optimal performance, use with compatible Kopp HK05 or HK07 series rockers and frames. Ensure proper installation by a qualified electrician. This switch is ideal for new installations or replacements in existing flush-mounted systems.
