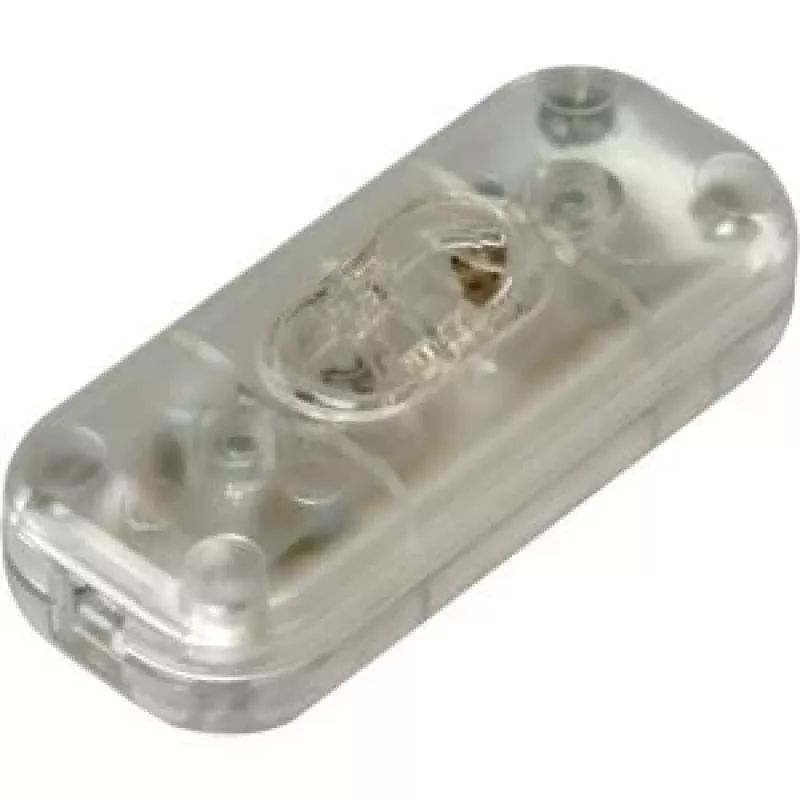

HEINRICH KOPP interruttore intermedio per cavo con scarico di trazione, trasparente, 1 polo ON/OFF, 2 A, 250 V 191310089

In-line cord switch for flexible cables, featuring integrated strain relief and a transparent housing. It provides simple ON/OFF control for lamps and small electrical appliances.

Advantages

The transparent design allows visual inspection of the internal switching mechanism. Integrated strain relief protects the cable connection from pulling forces, ensuring reliable operation. Screw terminals enable secure and straightforward installation.

Suitable for

• Lamps
• Small electrical appliances
• Flexible cables with a maximum diameter of 6 mm

Key specifications

• Switching function: 1-pole ON/OFF (SPST)
• Rated current: 2 A
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Max. cable cross-section: 2x0.75 mm²
• Max. cable diameter: 6 mm
• Material: Plastic (polycarbonate)
• Colour: Transparent

Recommendations

For safe and durable switching of small loads, ensure the cable diameter does not exceed 6 mm and the conductors are properly secured in the screw terminals.
