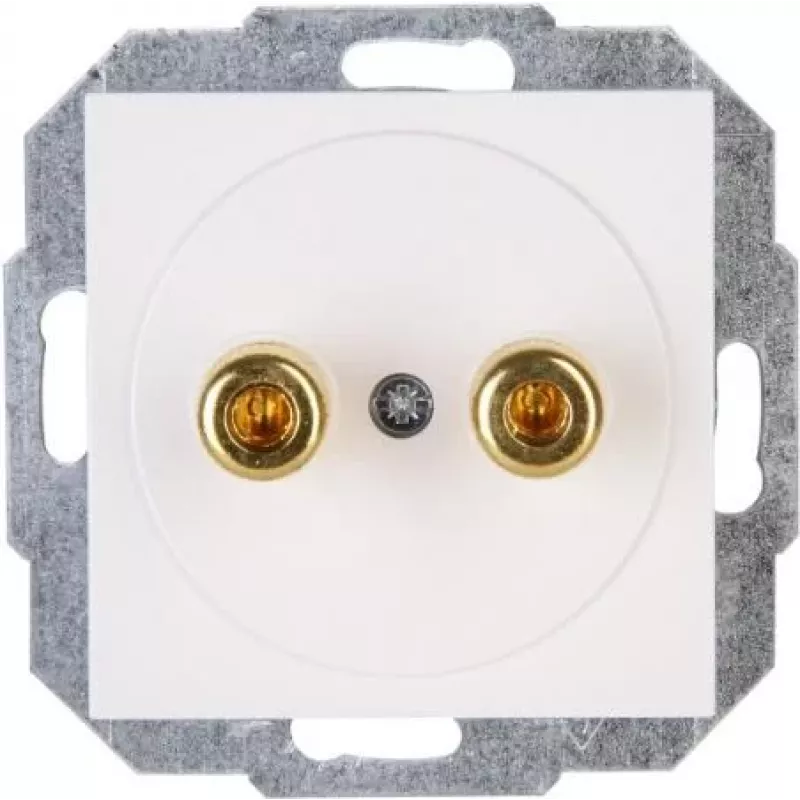

HEINRICH KOPP presa banana 4mm bianco da incasso 16A 30V AC/DC 951629004

The Kopp 951629004 banana socket stands out with its fully insulated white plastic housing and flush-mount design, making it a clean choice for panel installations where both safety and appearance matter. Unlike generic banana jacks, it is rated for 16 A and 30 V AC/DC, with a solder terminal for secure connections.

Highlights

• 4 mm banana jack, single pole
• Flush mount (panel mount) with 12 mm mounting hole
• Rated current 16 A, rated voltage 30 V AC/DC
• Solder terminal connection
• Fully insulated plastic housing in white

In daily use

This banana socket is suited for test and measurement setups, audio connections, and low voltage power applications. The solder terminal allows a permanent, low-resistance connection, while the compact front bezel (approx. 15 mm diameter) keeps the panel face tidy.

Full specifications

• Product Type: Banana Socket
• Connector Type: 4mm Banana Jack
• Colour: White
• Mounting Type: Flush Mount (Panel Mount)
• Number of Poles: 1 (Single)
• Connection Method: Solder Terminal
• Rated Current: 16 A
• Rated Voltage: 30 V AC/DC
• For Banana Plug Diameter: 4 mm
• Contact Material: Brass
• Insulation Material: Plastic
• Housing Material: Plastic
• Insulation: Fully Insulated
• Mounting Hole Diameter: 12 mm
• Overall Length (incl. terminal): Approx. 30 mm
• Front Bezel Diameter: Approx. 15 mm
• Typical Application: Test & Measurement, Audio, Low Voltage Power

Final note

A reliable flush-mount banana socket for professional and hobbyist panels, combining a high current rating with a clean white finish.
