HEINRICH KOPP presa Schuko da parete, 3 posti, bianco artico 100502000

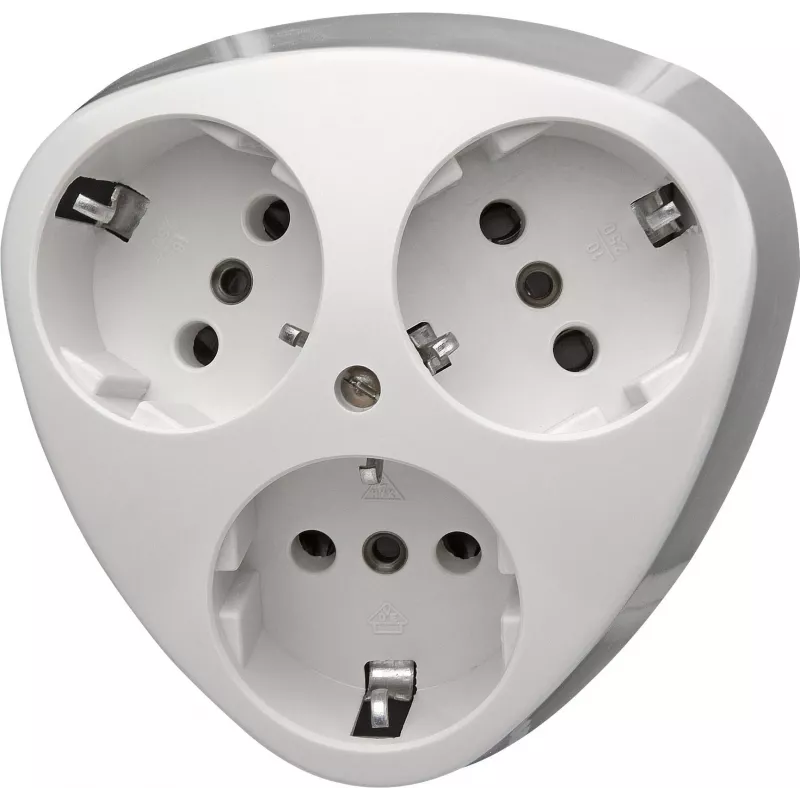

Need to add three grounded power outlets where only a surface-mounted solution will work? This HEINRICH KOPP 3-way Schuko socket outlet in Arctic White provides exactly that, with a clean, functional design for indoor installation.

Who is it for

Electricians and DIYers installing or extending power in homes, workshops, or utility rooms where flush-mounting is not possible or practical.

Main features

• Three Type F (Schuko) sockets in one compact unit
• Surface-mounted (Aufputz) design for easy installation on walls or panels
• Arctic White thermoplastic housing blends with most interiors
• Rated for 250 V AC, 16 A, suitable for standard household and light commercial loads
• Screw terminals accept rigid conductors up to 2.5 mm²
• Rear and side cable entry for flexible wiring options

Specifications

• Socket type: Type F (Schuko)
• Number of sockets: 3
• Mounting type: Surface-mounted
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• IP protection class: IP20
• Material: Thermoplastic
• Colour: Arctic White
• Connection type: Screw terminals
• Halogen-free: Yes
• Suitable for: Indoor use
• Cable entry: Rear and side
• Terminal capacity: Up to 2.5 mm² (rigid conductors)
• Product series: Standard
• Orientation: Horizontal

Tips

Ensure the supply is disconnected before installation. Use rigid conductors up to 2.5 mm² for secure screw terminal connections.
