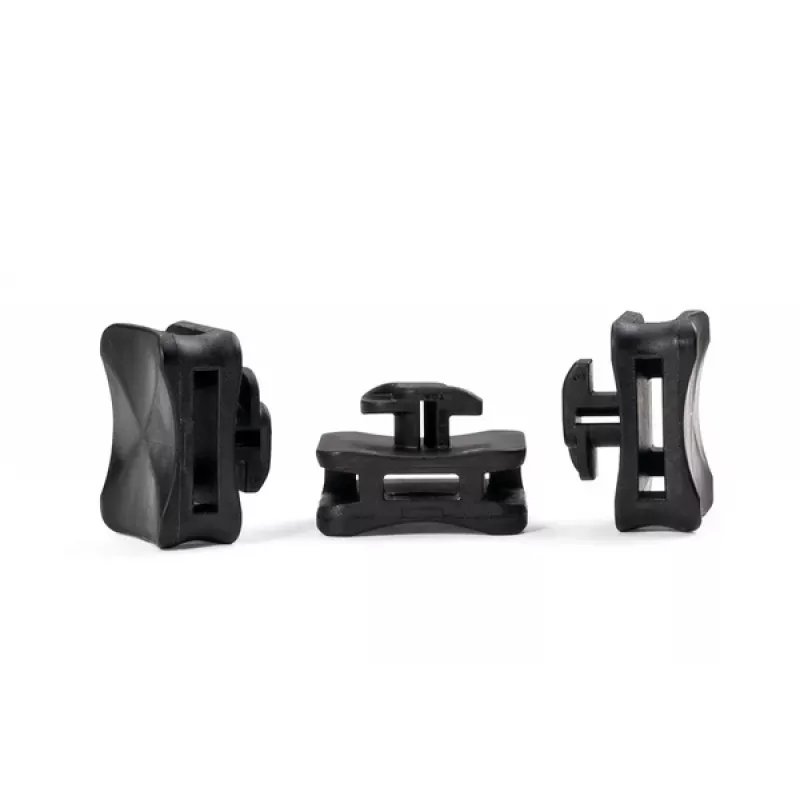

HellermannTyton ACFM8W6.2PT3-PA66/6HIRHS-BK supporto per fascette per guide profilate, termostabilizzato, resistente agli urti, nero, 25 pz. 151-03249

Industrial electricians and panel builders use this cable tie mount to secure wiring harnesses onto 6.2 mm profile rails inside control cabinets and machinery. The mount clicks into the rail slot and accepts cable ties up to 8 mm wide, providing a stable anchor point without drilling.

Key specifications

• Mounting method: for profile rails (C-rail, U-rail)
• Compatible rail slot width: 6.2 mm
• Maximum cable tie width: 8.0 mm
• Material: Polyamide 6.6 (PA66HIRHS), high impact resistant, heat stabilized
• Colour: black
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistant: Yes
• Pack quantity: 25 pieces

Why choose it

The heat-stabilized, impact-resistant PA66HIRHS material withstands mechanical stress and temperature fluctuations in demanding industrial environments. Its halogen-free composition and UV resistance make it suitable for outdoor or safety-critical installations.

Ideal use cases

• Securing cable bundles on DIN rails in control panels
• Routing wires along machine frames with existing profile rails
• Organizing cables in solar installations exposed to sunlight

Good to know

The mount is designed for quick installation without tools—simply press it into the rail slot. It is part of the HellermannTyton ACFM series and is RoHS compliant.
