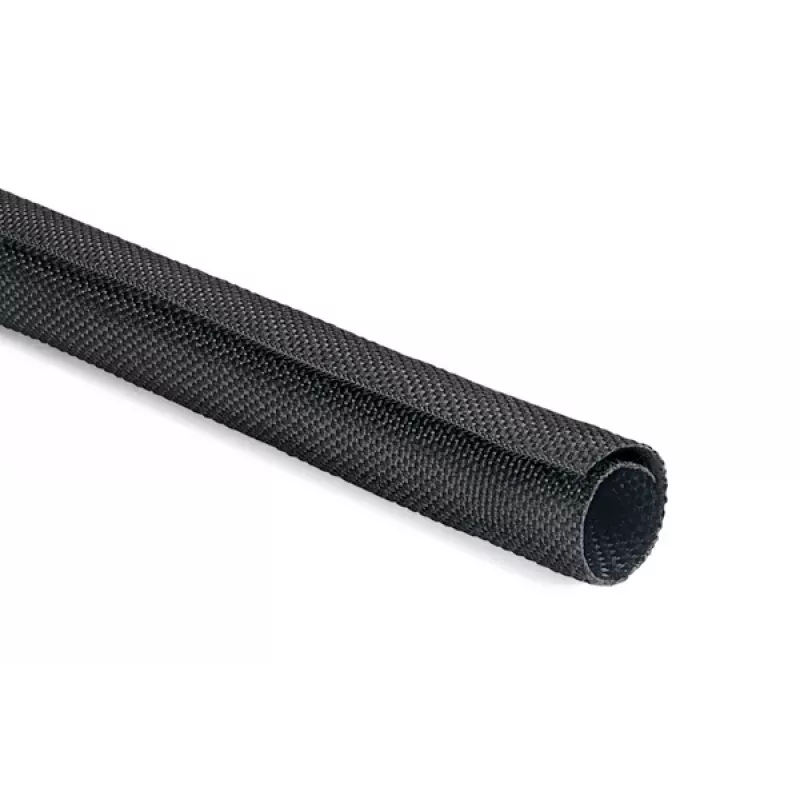

HellermannTyton Helagaine Twist-In Guaina a treccia, diametro fascio 4-5 mm, 5 m, nera 170-01011

The Helagaine Twist-In braided sleeve from HellermannTyton offers a self-wrapping solution for bundling and protecting cables. Its open-weave polyester monofilament construction allows the sleeve to be wrapped around existing cable bundles without disconnecting connectors, and it can be reopened for maintenance or modifications.

Highlights

• Self-wrapping design – no need to remove connectors
• Re-openable for easy access to cables
• High flexibility and very good abrasion resistance
• Halogen-free and flame retardant (UL94 V0)
• Wide operating temperature range: -50 °C to +150 °C

In daily use

The Twist-In sleeve is ideal for organising cables in control cabinets, machinery, or automotive applications. Its black polyester monofilament provides a clean, professional finish while protecting against abrasion and UV exposure. The sleeve can be cut to length and wrapped around bundles with a diameter of 4 to 5 mm.

Full specifications

• Product type: Braided Sleeve
• Series: Helagaine Twist-In
• Nominal diameter: 5 mm
• Bundle diameter range: 4 - 5 mm
• Length: 5 m
• Material: Polyester (PET) Monofilament
• Colour: Black
• Operating temperature: -50 °C to +150 °C
• Short-term temperature: +200 °C
• Flame retardancy: UL94 V0 (self-extinguishing)
• Halogen-free: Yes
• UV resistance: Good
• Abrasion resistance: Very good
• Chemical resistance: Good
• Flexibility: High
• Standards/Approvals: RoHS Compliant

Final note

The Helagaine Twist-In sleeve is a reliable choice for cable management where re-access and protection are equally important.
