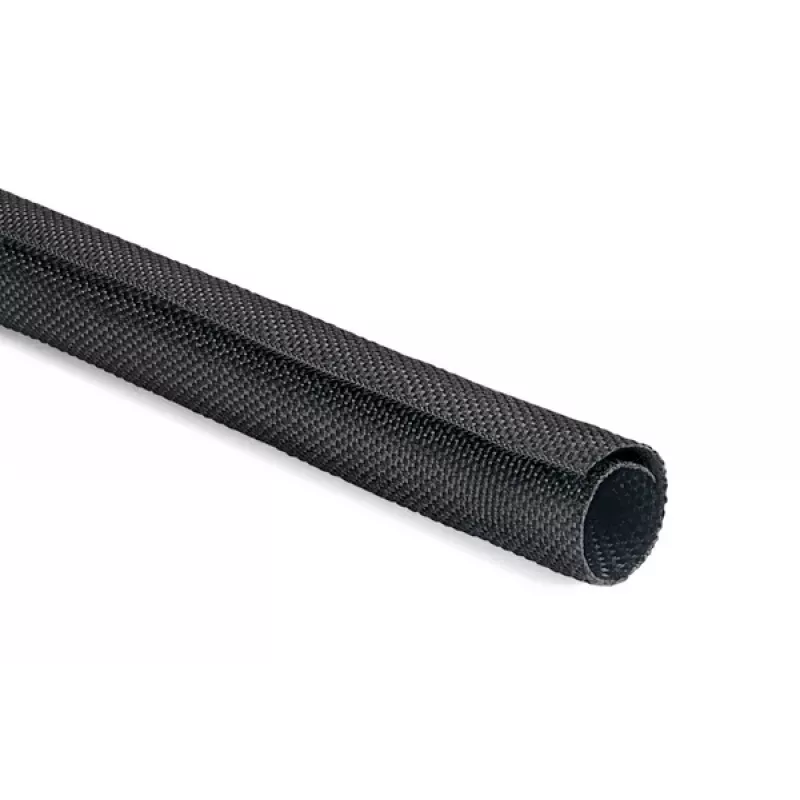

HellermannTyton Helagaine Twist-In guaina intrecciata autoavvolgente, diametro fascio 29-32 mm, 2 m, nero 170-01017

Self-wrapping braided sleeve for cable bundling and protection, suitable for bundle diameters from 29 to 32 mm. Made of halogen-free polyester (PET) with UL94 V0 flammability rating and UV resistance. Operating temperature range: -50 °C to +150 °C. Length: 2 m. Colour: Black.

Overview

The HellermannTyton Helagaine Twist-In is a self-wrapping braided sleeve designed for bundling and protecting cables, hoses, and wires. It features a unique open-weave construction that allows for easy installation over existing bundles without disconnecting connectors. The sleeve can be wrapped around the bundle and secured by overlapping, providing a snug fit.

What stands out

• Self-wrapping design enables retrofitting and maintenance without removing cables.
• Halogen-free polyester material meets UL94 V0 flammability standards.
• Excellent abrasion resistance and UV resistance for harsh environments.
• Wide operating temperature range from -50 °C to +150 °C.
• Reusable and adjustable, allowing for changes in bundle configuration.

Technical details

• Product type: Self-Wrapping Braided Sleeve
• Series: Helagaine Twist-In
• Material: Polyester (PET)
• Bundle diameter (min): 29 mm
• Bundle diameter (max): 32 mm
• Nominal diameter: 32 mm
• Length: 2 m
• Colour: Black
• Operating temperature range: -50 °C to +150 °C
• Flammability rating: UL94 V0
• Halogen-free: Yes
• UV resistance: Yes
• Abrasion resistance: Excellent
• Installation type: Self-wrapping, side entry
• Reusability: Yes
• Application: Cable bundling, protection, retrofitting, maintenance

Our verdict

A versatile and durable solution for cable management in demanding environments, offering easy installation and high performance.
