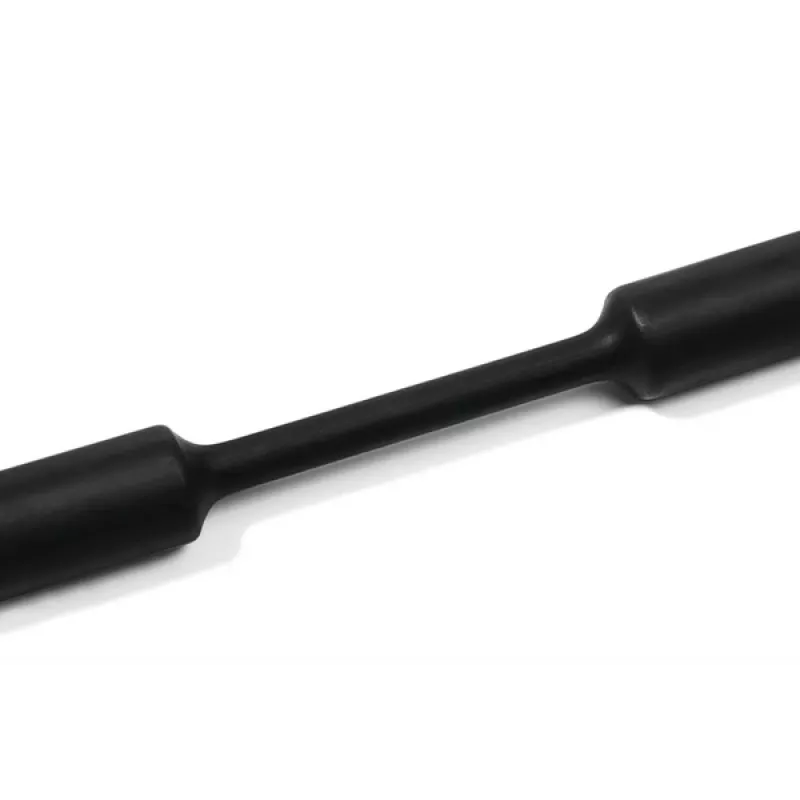

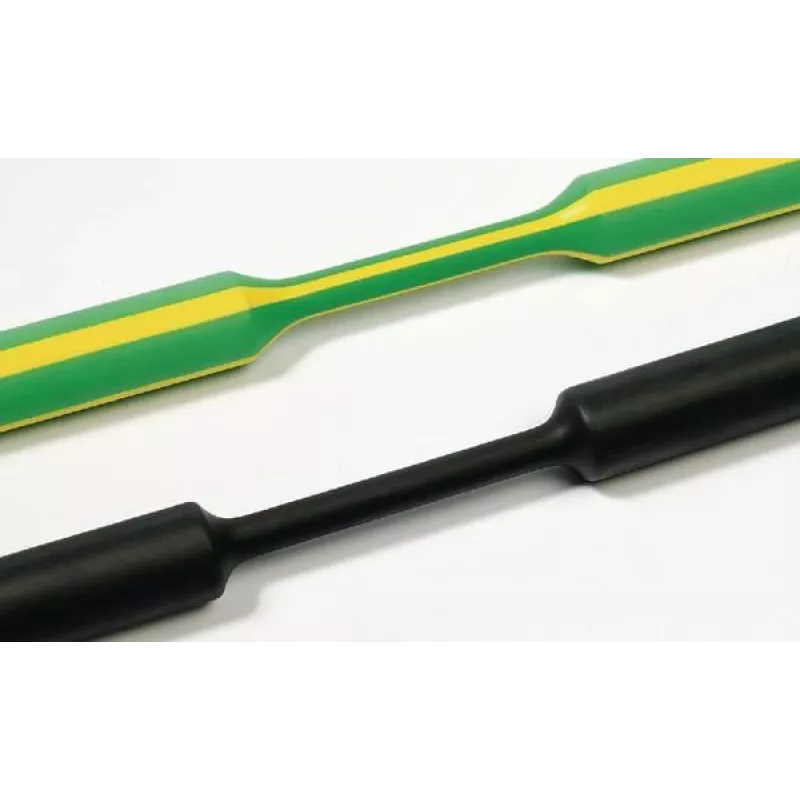

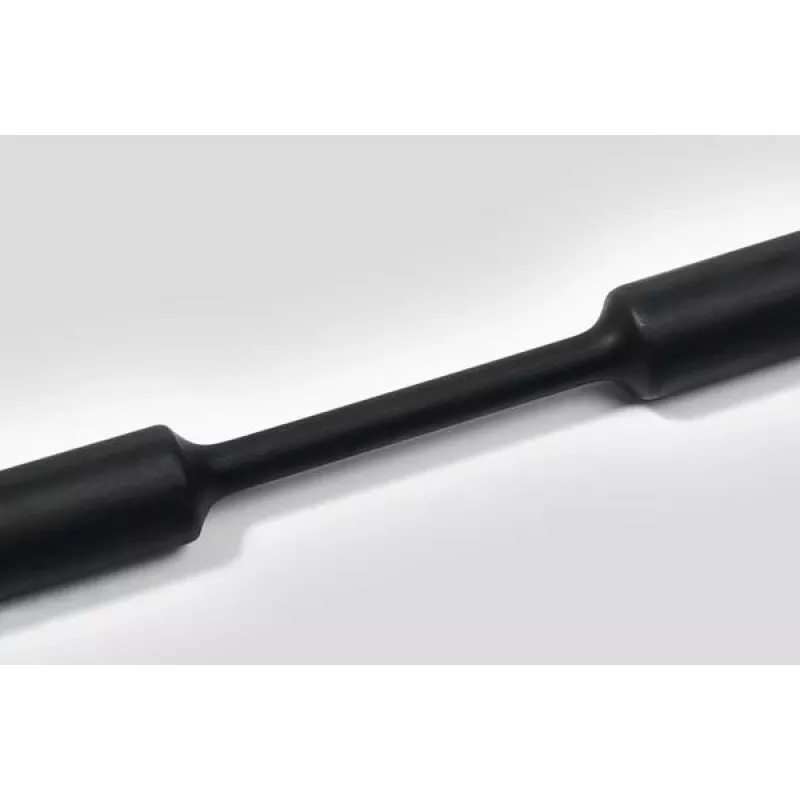

HellermannTyton HelaShrink 319 guaina termorestringente 2:1, 1,2 mm diametro di fornitura, nero, 1 m di lunghezza, 10 pz. (319-01200)

Heat shrink tubing provides reliable electrical insulation and mechanical protection for wire connections, splices, and cable bundles. This HelaShrink 319 tubing shrinks to half its supplied diameter when heated, creating a tight, durable seal that resists abrasion, chemicals, and UV exposure.

Advantages

Made from cross-linked polyolefin, the tubing is halogen-free and self-extinguishing, making it safe for use in sensitive environments. Its 2:1 shrink ratio ensures a snug fit over irregular shapes, while the wide operating temperature range from -55 °C to +125 °C suits demanding applications.

Suitable for

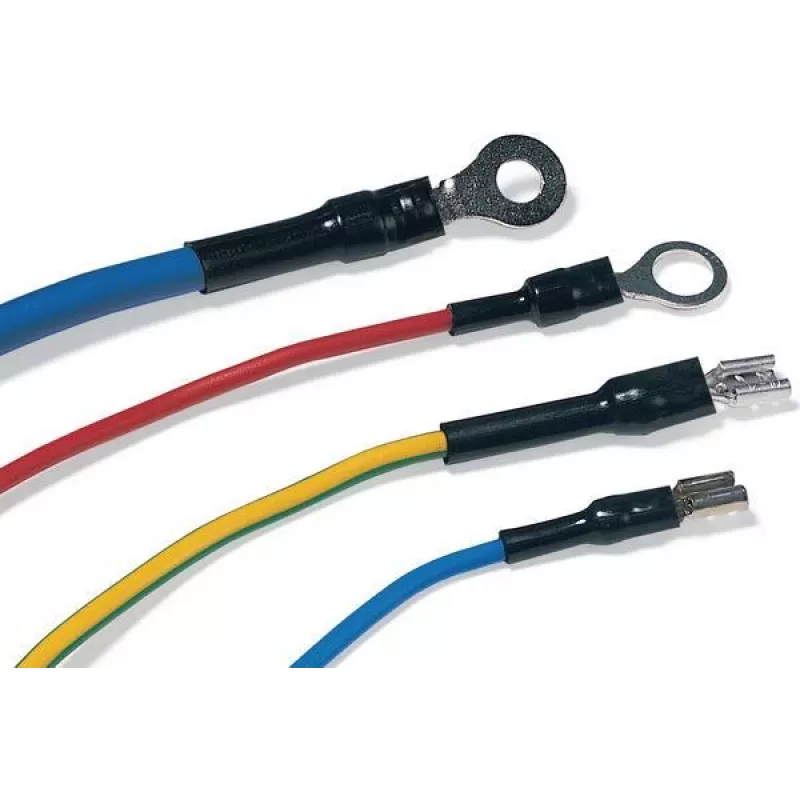

• Insulating and protecting electrical splices and terminations
• Strain relief for cables and wires
• Bundling and organising wire harnesses
• Mechanical protection against abrasion and impact

Key specifications

• Supplied diameter: 1.2 mm
• Recovered diameter: 0.6 mm
• Recovered wall thickness: 0.45 mm
• Length per piece: 1 m
• Colour: Black
• Material: Cross-linked polyolefin (PO)
• Shrink ratio: 2:1
• Operating temperature: -55 °C to +125 °C
• Minimum shrink temperature: +90 °C
• Dielectric strength: > 20 kV/mm
• Tensile strength: > 10.4 MPa
• Flammability: Self-extinguishing
• Halogen-free: Yes
• UV resistant: Yes
• Pack quantity: 10 pieces

Recommendations

For best results, use a heat gun or oven set to at least 90 °C. Ensure the tubing is centred over the area to be protected before shrinking. Store in a cool, dry place away from direct sunlight.
