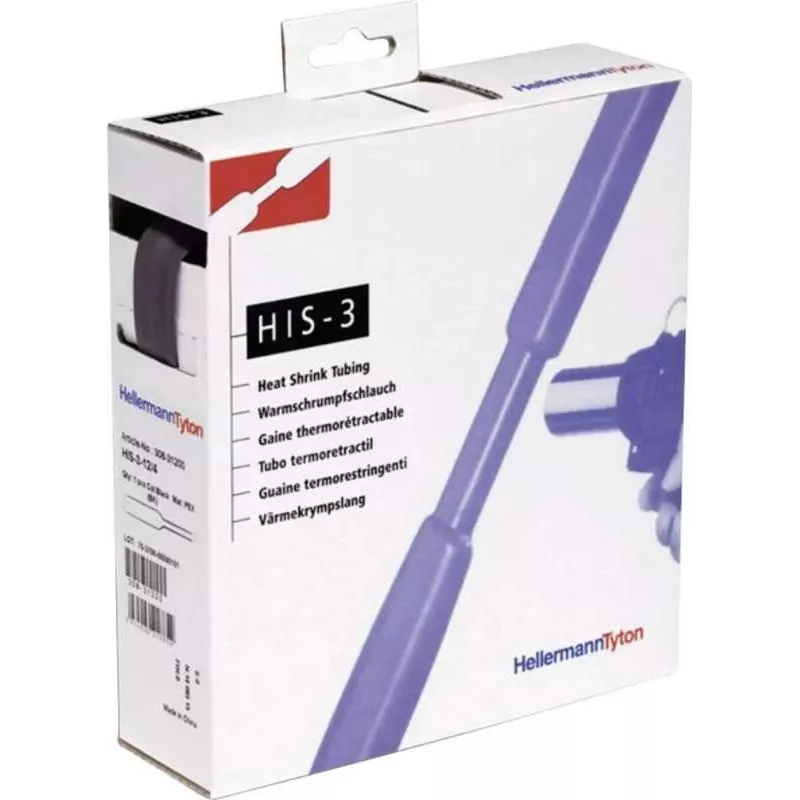

HellermannTyton HIS-3 Guaina termorestringente dispenser 3:1 6 mm/2 mm 5 m nero (308-30600)

The HellermannTyton HIS-3 heat shrink tubing in a convenient dispenser box offers a reliable solution for insulating, protecting, and bundling wires and cables. With a 3:1 shrink ratio, it shrinks to one-third of its supplied diameter, ensuring a tight fit over irregular shapes and connectors. This black polyolefin tubing is flexible, halogen-free, and RoHS compliant, making it suitable for a wide range of electrical and electronic applications.

Advantages

High shrink ratio of 3:1 accommodates varying substrate sizes. Dispenser box keeps tubing organized and tangle-free. Excellent dielectric strength and flame retardancy (UL224 VW-1) ensure safety. Good chemical and UV resistance for long-lasting performance. Flexible material conforms to complex geometries.

Suitable for

• Insulating electrical connections and terminals
• Protecting cables from abrasion and environmental stress
• Bundling and organizing wire harnesses
• Strain relief for connectors and splices
• Color-coding and identification of cables

Key specifications

• Product Type: Heat Shrink Tubing
• Packaging: Dispenser Box
• Material: Cross-linked Polyolefin
• Shrink Ratio: 3:1
• Internal Diameter (Supplied): 6 mm
• Internal Diameter (Recovered): 2 mm
• Length: 5 m
• Colour: Black
• Operating Temperature: -55°C to +125°C
• Minimum Shrink Temperature: +90°C
• Dielectric Strength: 20 kV/mm
• Flammability Rating: UL224 VW-1
• Wall Thickness (Recovered): 0.6 mm
• Tensile Strength: 10.4 MPa
• Longitudinal Shrinkage: Max. ±5%
• Halogen-free: Yes

Recommendations

For best results, use a heat gun or hot air blower to apply uniform heat. Ensure the tubing is fully recovered before cooling. Store in a cool, dry place away from direct sunlight.
