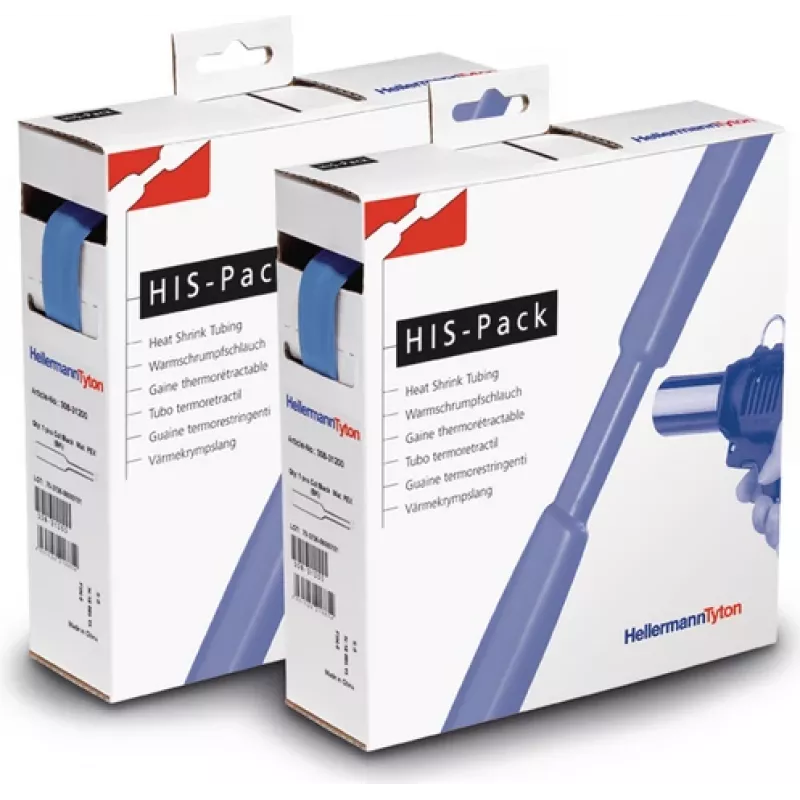

HellermannTyton HIS-PACK-19.1/9.5-PO-X-BU guaina termorestringente blu 19,1mm x 9,5mm x 5m scatola dispenser

The HellermannTyton HIS-PACK-19.1/9.5-PO-X-BU is a high-quality heat shrink tubing kit in blue, supplied in a convenient dispenser box. Made from flexible polyolefin (PO) with a 2:1 shrink ratio, it provides reliable electrical insulation, bundling, mechanical protection, and color coding for a wide range of applications. The tubing expands to 19.1 mm and recovers to 9.5 mm, with a total length of 5 meters. It operates in temperatures from -55°C to +125°C and shrinks at a minimum temperature of +90°C. This product is flame retardant (UL224 VW-1), RoHS compliant, and offers good chemical resistance against common fluids.

Advantages

This heat shrink tubing offers excellent dielectric strength (20 kV/mm) and is easy to install with a standard heat gun. The dispenser box ensures tidy storage and convenient dispensing, reducing waste and saving time. Its blue color is ideal for color coding wires and cables, enhancing organization and safety in electrical installations.

Suitable for

• Electrical insulation of wires and cables
• Bundling and organizing cable harnesses
• Mechanical protection against abrasion and environmental stress
• Color coding for identification of circuits or phases
• Repair and maintenance of electrical equipment

Key specifications

• Product Type: Heat Shrink Tubing
• Material: Polyolefin (PO)
• Shrink Ratio: 2:1
• Supplied Diameter (Expanded): 19.1 mm
• Recovered Diameter: 9.5 mm
• Length: 5 m
• Color: Blue
• Operating Temperature Range: -55°C to +125°C
• Minimum Shrink Temperature: +90°C
• Dielectric Strength: 20 kV/mm
• Flame Retardant: Yes (UL224 VW-1)
• Halogen-Free: No
• UV Resistant: No
• Chemical Resistance: Good against common fluids
• Standard Compliance: RoHS, UL224 VW-1, CSA
• Packaging Type: Dispenser Box
• Wall Type: Thin-wall

Recommendations

For best results, use a heat gun with adjustable temperature and ensure the tubing is fully heated until it conforms tightly to the substrate. Allow to cool before handling. Suitable for indoor applications; not recommended for direct UV exposure.
