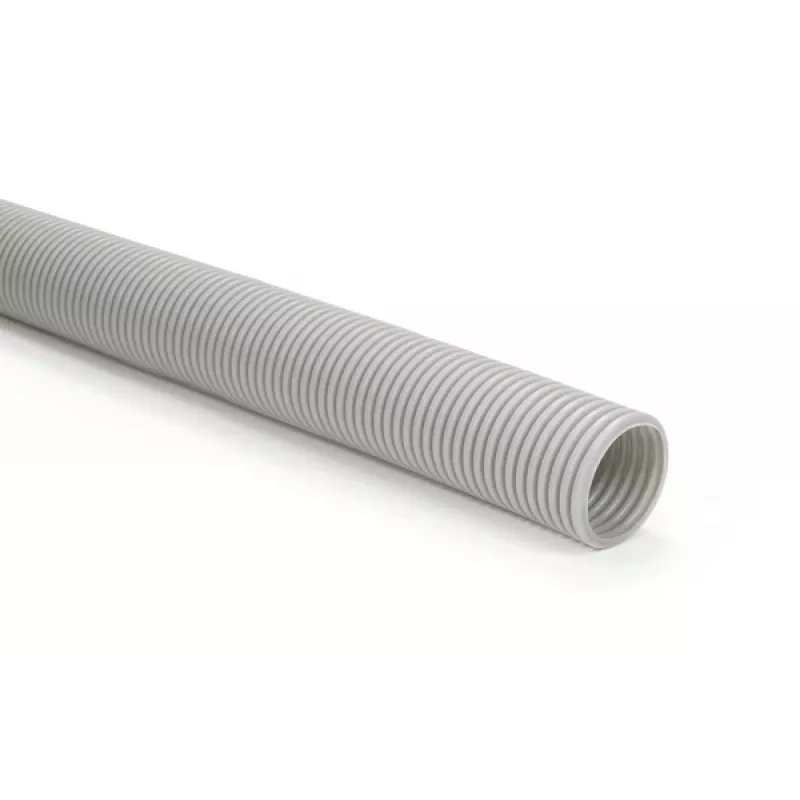

HellermannTyton IWS50-PE-GY 25 tubo corrugato, PE, grigio, 50 mm, 25 m

The HellermannTyton IWS50-PE-GY 25 is a high-quality corrugated conduit designed for reliable cable protection in industrial and outdoor applications. Made from flexible polyethylene (PE), this conduit offers excellent chemical and UV resistance, ensuring long-lasting performance in demanding environments.

Advantages

This conduit provides robust mechanical protection with medium compression and impact resistance (Class 3). Its pliable nature allows for easy installation around corners and obstacles. The halogen-free material enhances safety in case of fire, and the wide operating temperature range (-20°C to +90°C static) suits various climates.

Suitable for

• Industrial machinery wiring
• Outdoor installations
• General cable protection in harsh environments
• Automation and control systems

Key specifications

• Material: Polyethylene (PE)
• Colour: Grey (RAL 7031)
• Nominal Diameter: 50 mm
• Outer Diameter: 54.5 mm
• Inner Diameter: 42.5 mm
• Length: 25 m
• Operating Temperature (Static): -20°C to +90°C
• Operating Temperature (Dynamic): -5°C to +60°C
• Flame Retardancy: Not flame retardant
• UV Resistance: Good
• Chemical Resistance: Good
• Compression Strength: Medium (Class 3, >320 N / 5 cm)
• Impact Resistance: Medium (Class 3, >2 J at -5°C)
• Standard: EN 61386-22
• Halogen-free: Yes

Recommendations

For optimal performance, ensure the conduit is properly supported and secured. Suitable for use with compatible fittings and connectors. Always follow local installation guidelines.
