HellermannTyton kit di giunzione per cavi termorestringente con connettori a vite 380-04013 1 set

The HellermannTyton Heat Shrink Cable Joint Kit 380-04013 is a professional-grade solution for straight jointing of polymeric insulated cables without armour. Designed for 4-core low voltage cables (0.6/1 kV) with conductor cross-sections from 1.5 to 6 mm², this kit provides a watertight, UV-resistant, and chemically resistant insulation system. The kit includes mechanical screw connectors (shear bolt type) and heat shrink tubing with hot-melt adhesive lining, ensuring a reliable and durable joint for underground, submersible, outdoor, and indoor applications.

Advantages

• Watertight and submersible – suitable for underground and outdoor use
• UV resistant and chemically resistant – long-lasting performance
• Easy installation with heat gun – no special tools required
• Mechanical screw connectors ensure secure conductor connection
• Complies with VDE 0278 standards for safety and reliability

Suitable for

• Low voltage power cables (0.6/1 kV) with polymeric insulation (PVC, PE, VPE)
• 4-core cables without armour
• Underground, outdoor, indoor, and submersible installations
• Straight joint applications in industrial, commercial, and utility networks

Key specifications

• Product Type: Heat Shrink Cable Joint Kit
• Joint Type: Straight Joint
• Number of Cores: 4
• Conductor Cross-Section: 1.5 - 6 mm²
• Voltage Rating: 0.6/1 kV
• Connector Type: Mechanical Screw Connectors (Shear Bolt)
• Material: Cross-linked Polyolefin (Heat Shrink)
• Colour: Black
• Operating Temperature: -30°C to +90°C
• Standards: VDE 0278

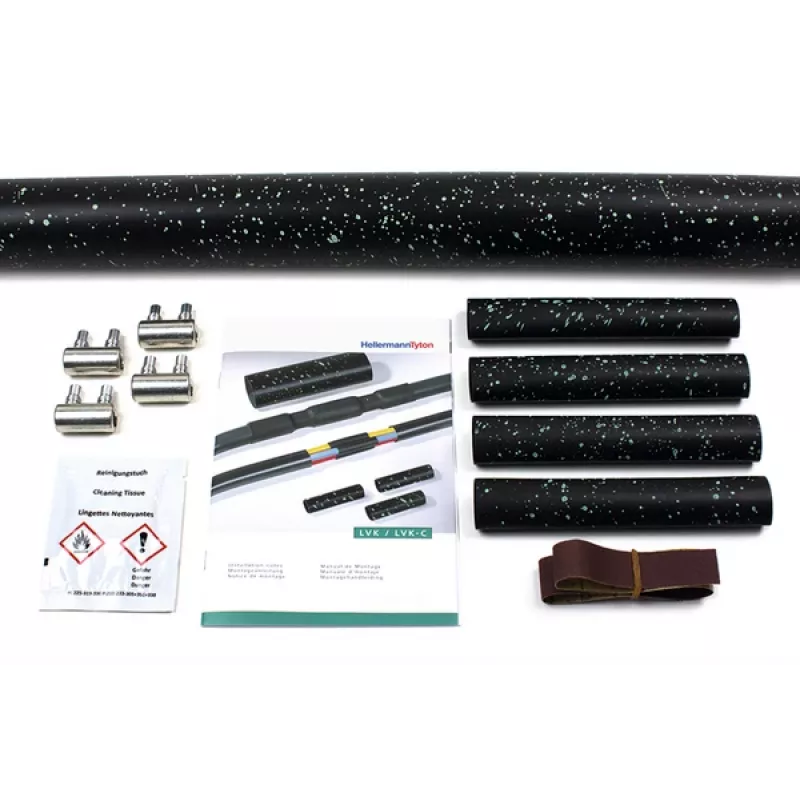

• Kit Contents: Outer heat shrink tube, 4 inner heat shrink tubes, 4 mechanical screw connectors, cleaning wipe, abrasive cloth, installation instructions
• Quantity per Pack: 1 Set (1 joint)

Recommendations

For best results, use a professional heat gun with temperature control. Ensure cables are clean and dry before installation. Follow the included installation instructions carefully.
