HellermannTyton Kit di giunzione termorestringente LVK 5x1.5-16 PO-X BK, 1 set (380-04006)

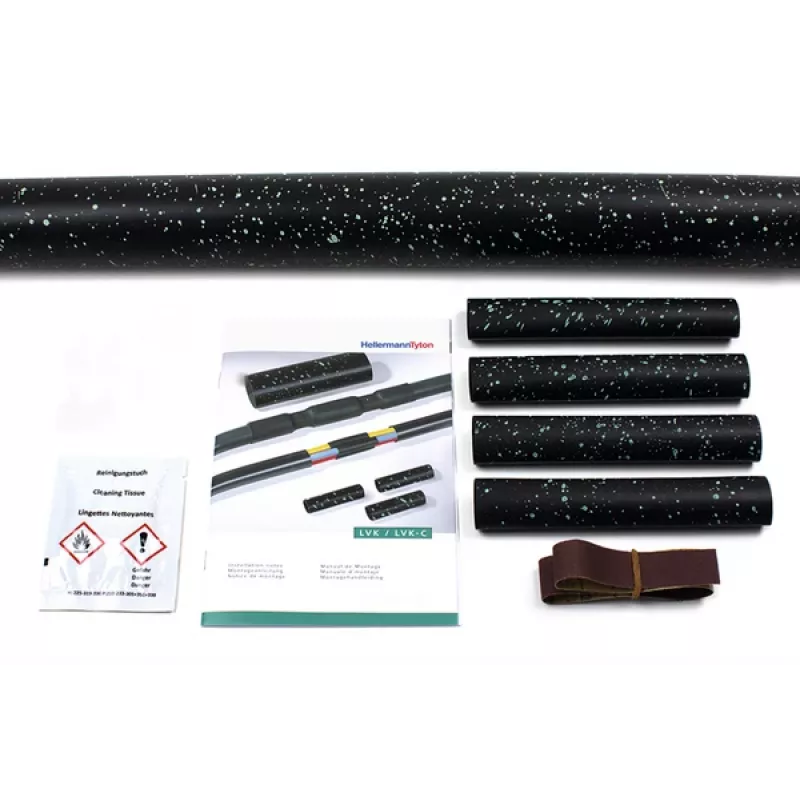

The HellermannTyton LVK 5x1.5-16 PO-X BK is a high-quality heat shrinkable jointing kit designed for low voltage cable joints up to 1 kV. This kit provides reliable insulation, mechanical protection, and moisture sealing for 5-core cables with cross-sections from 1.5 to 16 mm². The cross-linked polyolefin material offers excellent electrical properties and UV resistance, making it suitable for indoor and outdoor applications.

Advantages

• Shrink ratio up to 4:1 for versatile cable size coverage
• Halogen-free and environmentally friendly
• UV resistant for long-term outdoor use
• Waterproof protection against moisture ingress
• Easy installation with wide operating temperature range

Suitable for

• Low voltage cable jointing in power distribution networks
• Industrial electrical installations
• Underground and overhead cable connections
• Repair and maintenance of cable systems

Key specifications

• Product Type: Heat Shrinkable Jointing Kit
• Series: LVK
• Number of Cores: 5
• Cable Cross-Section Range: 1.5 - 16 mm²
• Shrink Ratio: Up to 4:1
• Voltage Class: Up to 1 kV
• Material: Cross-linked Polyolefin (PO-X)
• Colour: Black
• Halogen-free: Yes
• UV Resistant: Yes
• Waterproof: Yes
• Operating Temperature: -30°C to +90°C
• Installation Temperature: -5°C to +50°C
• Contents: 1 Set (for 1 joint)

Recommendations

For optimal performance, ensure cables are clean and dry before installation. Follow manufacturer instructions for heating and cooling cycles. Suitable for use with HellermannTyton heat shrink tools.
