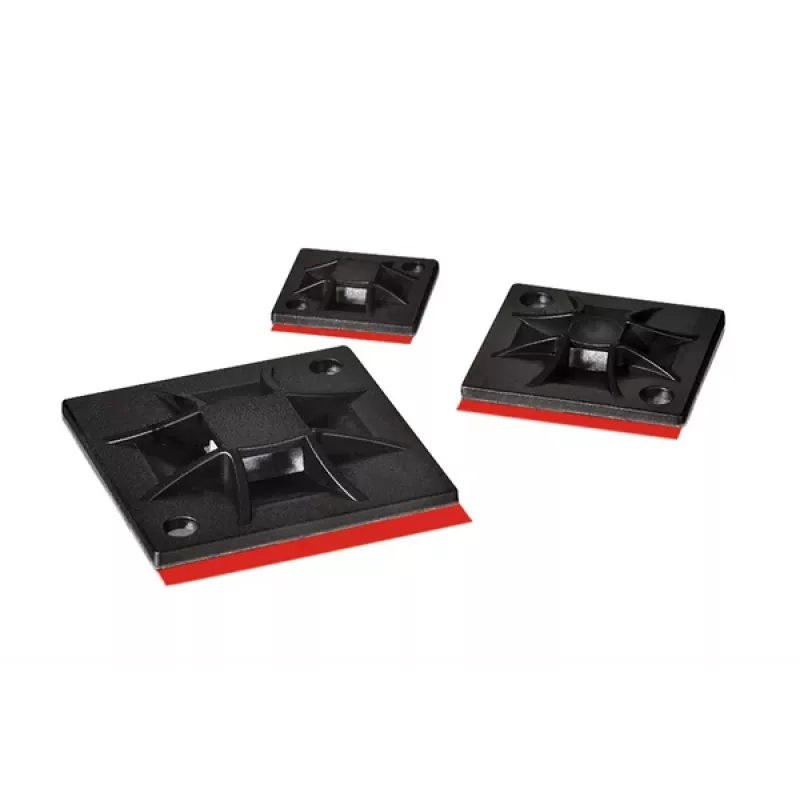

HellermannTyton QM30APT-A-PA66-BK fissaggio adesivo 30x30mm nero (confezione da 100 pz.)

The HellermannTyton QM30APT-A-PA66-BK is a high-quality adhesive mount designed for securing cable ties to smooth surfaces. Part of the QM series, this mount provides a reliable and durable fixing point for cable management applications. With a compact 30x30mm base and a low profile of 6.5mm, it is ideal for use in confined spaces. The mount is made from polyamide 6.6 (PA66) with a black colour finish, offering excellent mechanical strength and resistance to environmental factors.

Advantages

This adhesive mount offers a quick and easy installation without the need for tools or drilling. The strong acrylic adhesive ensures a secure bond on smooth surfaces such as metal, glass, and plastic. The PA66 material provides high temperature resistance and mechanical stability, making it suitable for a wide range of indoor and outdoor applications. The mount is halogen-free and has a UL94 V-2 flammability rating, ensuring safety and compliance with industry standards.

Suitable for

• Securing cable ties in electrical cabinets and control panels
• Managing cables in automotive and transportation applications
• Organising wiring in telecommunications and data centres
• Mounting cable ties on smooth walls, ceilings, and floors
• General cable management in industrial and commercial environments

Key specifications

• Product Type: Cable Tie Adhesive Mount
• Base Dimensions (L x W): 30 x 30 mm
• Height: 6.5 mm
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Mounting Method: Adhesive
• Adhesive Type: Acrylic
• Max. Cable Tie Width Compatibility: 5.4 mm
• Operating Temperature Range: -40°C to +85°C
• Flammability Rating: UL94 V-2
• Halogen-free: Yes
• Quantity per Pack: 100
• Manufacturer Article Number: 151-02974
• Series: QM Series

Recommendations

For best results, ensure the mounting surface is clean, dry, and free of grease or dust before applying the adhesive mount. Press firmly for a few seconds to achieve optimal bond strength. Suitable for use with HellermannTyton cable ties up to 5.4 mm width.
