HellermannTyton SPIRAFIX spirale per cavi, trasparente, PE, 10mm, 25m 161-41203

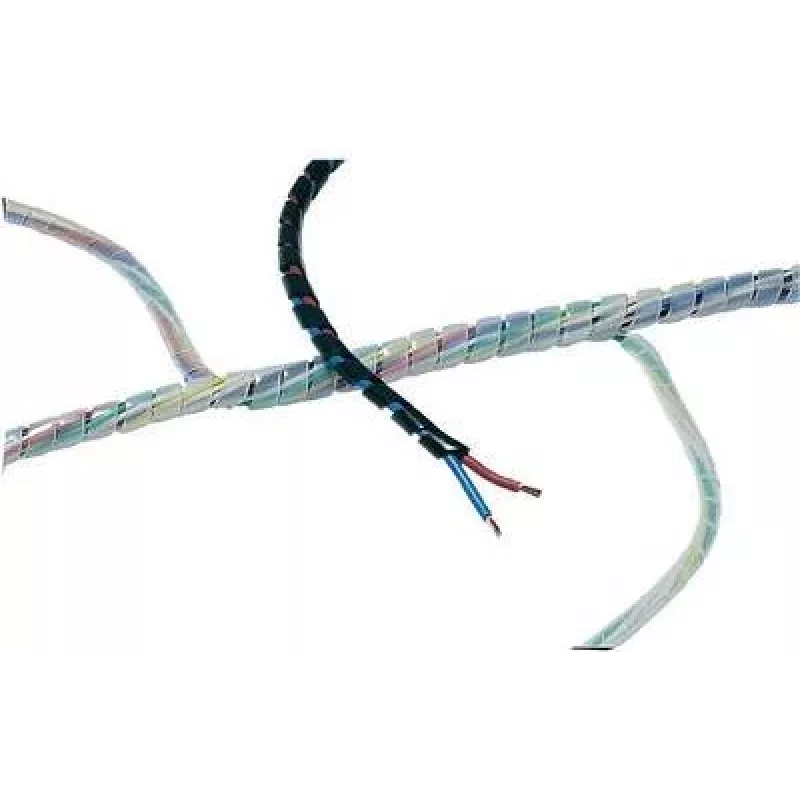

Spiral wrap for cable bundling and protection, made of transparent polyethylene (PE) with high flexibility and reusability. It accommodates bundle diameters from 8 mm to 12 mm and operates from -60 °C to +80 °C. The SPIRAFIX series offers a halogen-free solution with UL94 HB flammability rating and good chemical resistance.

Advantages

Transparent PE material allows visual inspection of bundled cables. High flexibility simplifies installation around tight bends. Reusable design permits easy rework or addition of cables. Wide temperature range suits demanding environments.

Suitable for

• Organizing and protecting cables in control panels
• Bundling wires in automotive and machinery applications
• Managing cables in harsh temperature conditions

Key specifications

• Material: Polyethylene (PE)
• Colour: Transparent
• Nominal diameter: 10 mm
• Bundle diameter range: 8–12 mm
• Length: 25 m
• Operating temperature: -60 °C to +80 °C
• Flammability rating: UL94 HB
• Halogen-free: Yes
• UV resistant: No
• Chemical resistance: Good
• Reusable: Yes
• Flexibility: High
• Wall thickness: 1 mm
• Pitch: 10 mm

Recommendations

For best results, select the appropriate spiral wrap diameter based on your bundle size. Cut to desired length with standard scissors. Overlap wraps slightly for full coverage.
