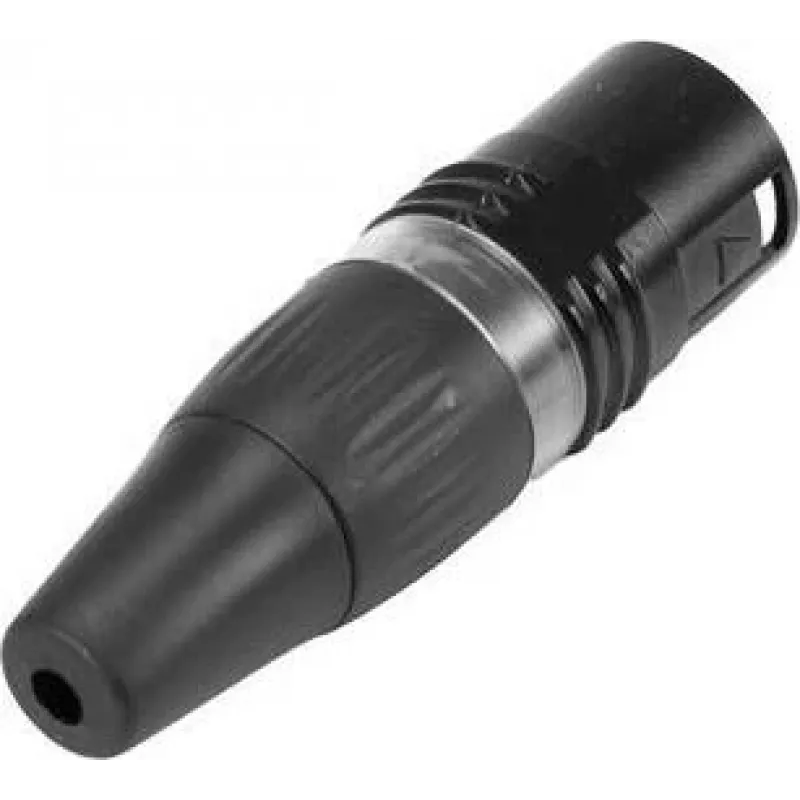

HICON HI-X5CM-B connettore maschio XLR a 5 poli, connessione a saldare, pressofusione di zinco, nero 30200514

The HICON HI-X5CM-B is a 5-pin male XLR connector built with a die-cast zinc housing and silver-plated contacts. It is intended for audio and DMX lighting control applications where a reliable, solder-terminated connection is required. The chuck-type strain relief accepts cable diameters from 3.5 mm to 8.0 mm, and the latch lock keeps the connection secure.

Highlights

• 5-pin male XLR configuration
• Solder termination for permanent, field-serviceable connections
• Die-cast zinc housing with black finish
• Silver-plated contacts for low contact resistance
• Chuck-type strain relief for cable diameters 3.5–8.0 mm
• Rated for 7.5 A per contact at 50 V
• Operating temperature range -30 °C to +80 °C
• Over 1000 mating cycles

In daily use

This connector is a practical choice for building or repairing 5-pin XLR cables used in professional audio and DMX lighting setups. The solder cups provide a secure termination, and the die-cast housing withstands the rigors of stage and studio environments. The latch lock prevents accidental disconnection, while the chuck strain relief protects the cable from bending stress.

Full specifications

• Connector type: XLR
• Gender: Male
• Number of pins: 5
• Termination method: Solder
• Housing material: Die-cast zinc
• Contact plating: Silver
• Colour: Black
• Series: HICON HI-X
• Cable O.D. range: 3.5 - 8.0 mm
• Rated current per contact: 7.5 A
• Rated voltage: 50 V
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ
• Contact resistance: < 3 mΩ
• Temperature range: -30 °C to +80 °C
• Mating cycles: > 1000
• Strain relief: Chuck type
• Locking mechanism: Latch lock
• Standard compliance: IEC 61076-2-103
• Application: Audio, DMX (Lighting Control)

Final note

The HI-X5CM-B combines a rugged zinc housing with silver-plated contacts, making it a dependable choice for 5-pin XLR cable assemblies in demanding environments.
