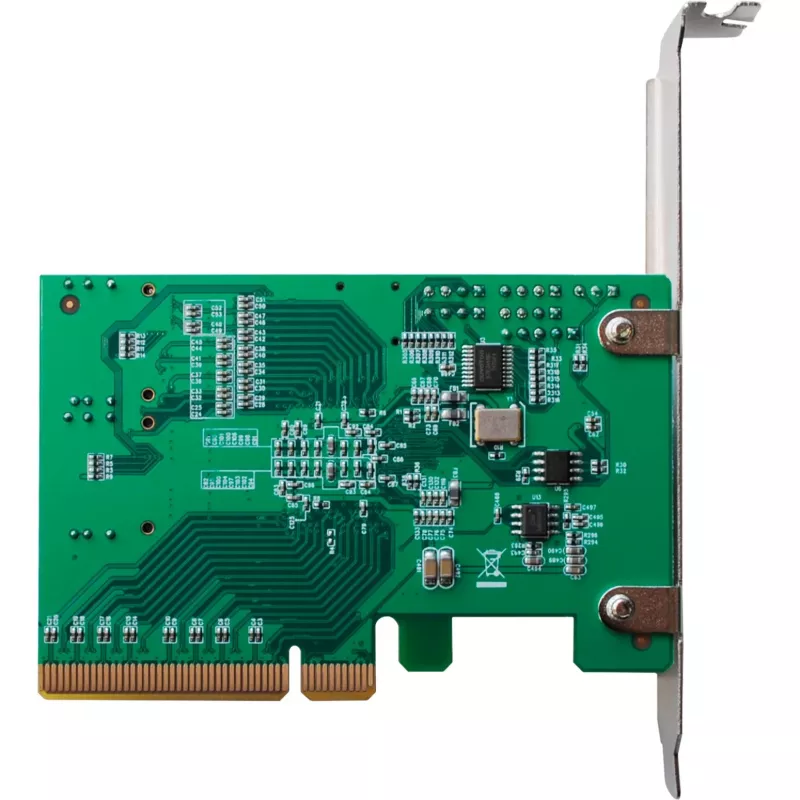

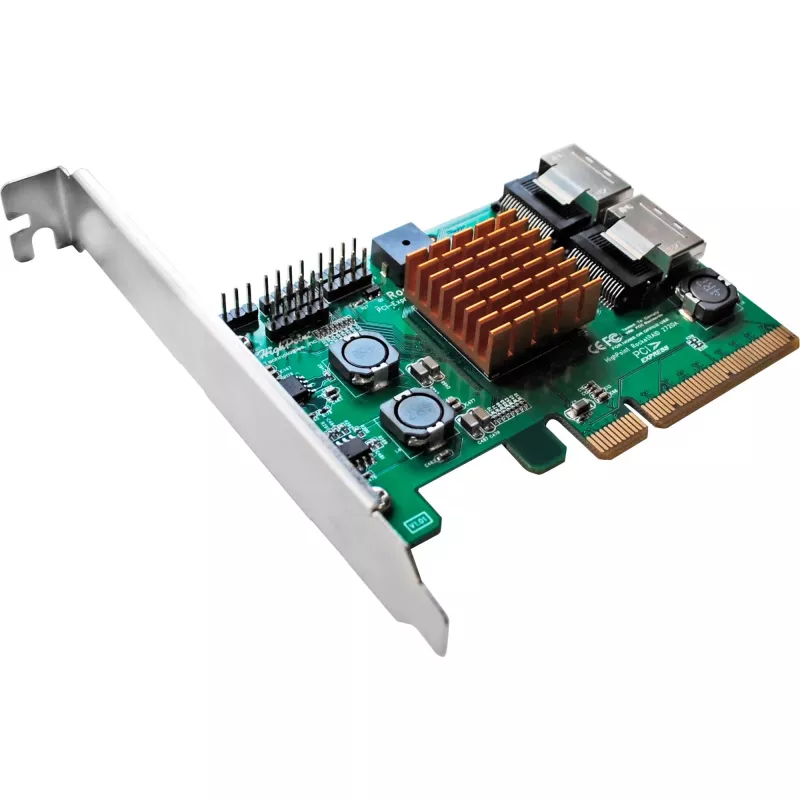

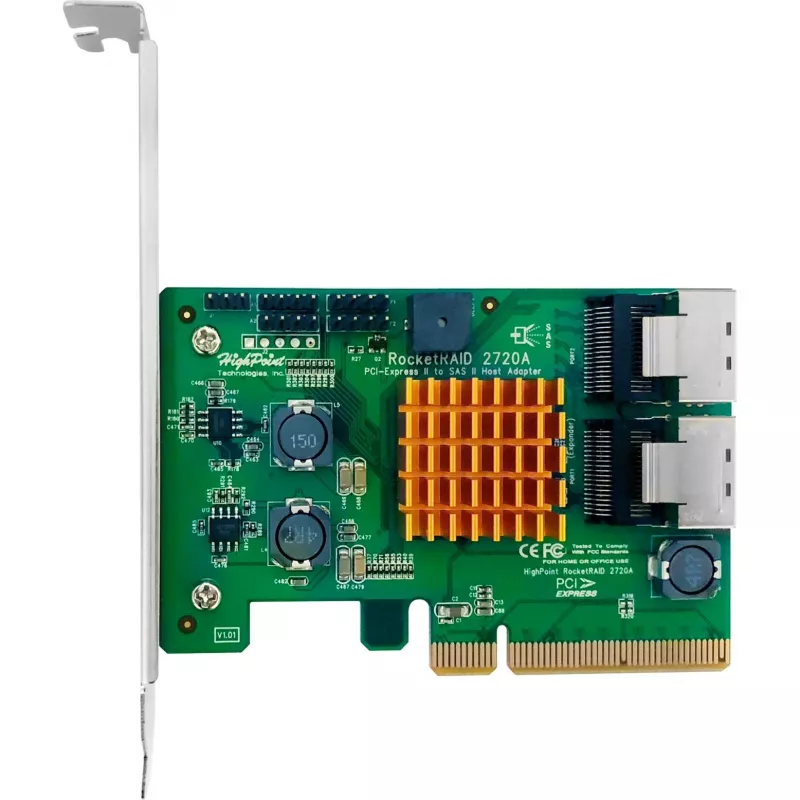

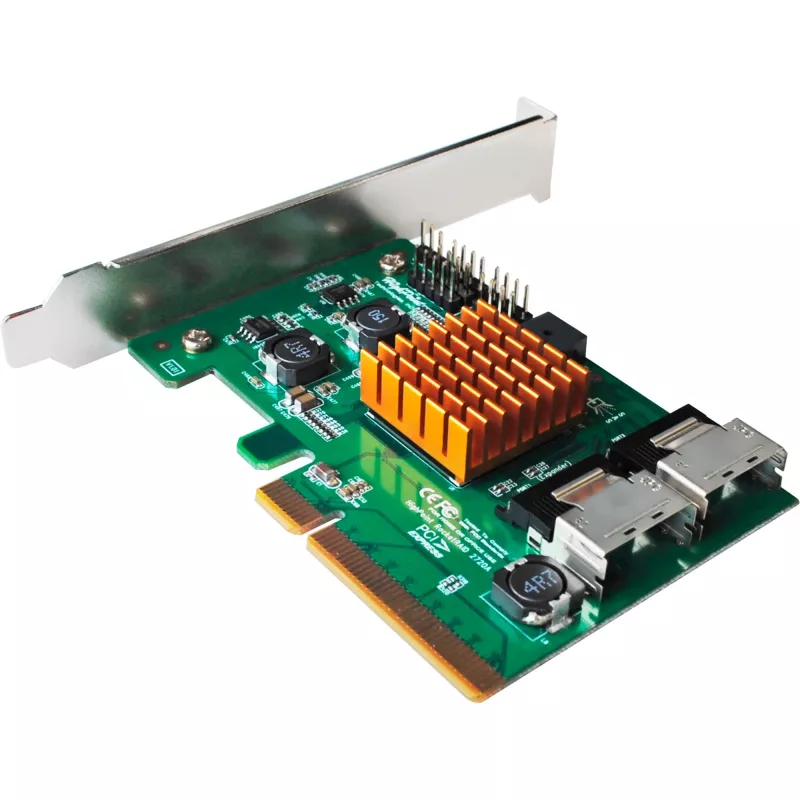

HIGHPOINT RocketRAID 2720A Controller RAID PCIe 2.0 x8 SAS/SATA 6Gb/s

The HIGHPOINT RocketRAID 2720A is a high-performance RAID controller designed for demanding storage environments. Featuring a PCI-Express 2.0 x8 interface and eight internal SAS/SATA 6Gb/s ports, it delivers exceptional data transfer speeds and reliable RAID protection for up to eight drives. Ideal for workstations and entry-level servers, this controller supports a wide range of RAID levels and advanced features such as online capacity expansion and RAID level migration.

Advantages

With the Marvell 88SE9485 chipset and 512MB DDR2 cache, the RocketRAID 2720A ensures fast and stable data processing. Its low-profile form factor fits into various chassis, and the included full-height bracket offers flexibility. Hot-swap support and bad sector reallocation enhance data integrity and uptime.

Suitable for

• Workstations requiring high-speed internal storage
• Entry-level servers with up to eight SAS or SATA drives
• Video editing, surveillance, and data backup applications

Key specifications

• Interface: PCI-Express 2.0 x8
• Internal Ports: 8 x SAS/SATA 6Gb/s
• Connectors: 2 x SFF-8087 Mini-SAS
• RAID Levels: 0, 1, 5, 10, 50, JBOD
• Chipset: Marvell 88SE9485
• Cache: 512MB DDR2
• Max Drives: 8

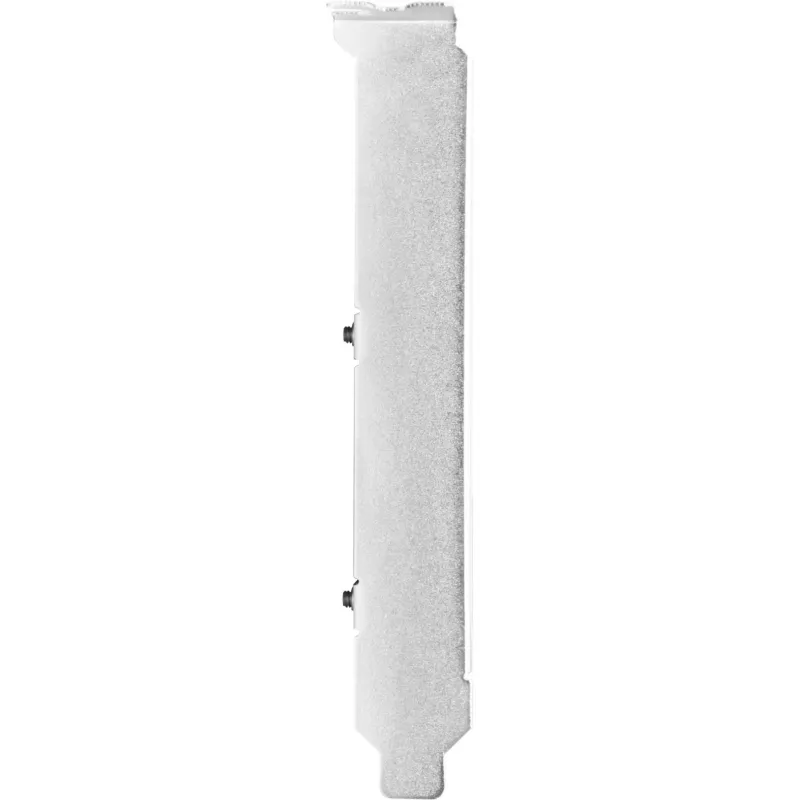

• Form Factor: Low-profile (full-height bracket included)
• OS Support: Windows, Linux, FreeBSD, macOS

Recommendations

For optimal performance, use enterprise-grade SAS or SATA SSDs/HDDs. Ensure your system has an available PCIe 2.0 x8 or higher slot. The controller supports UEFI and Legacy BIOS.
