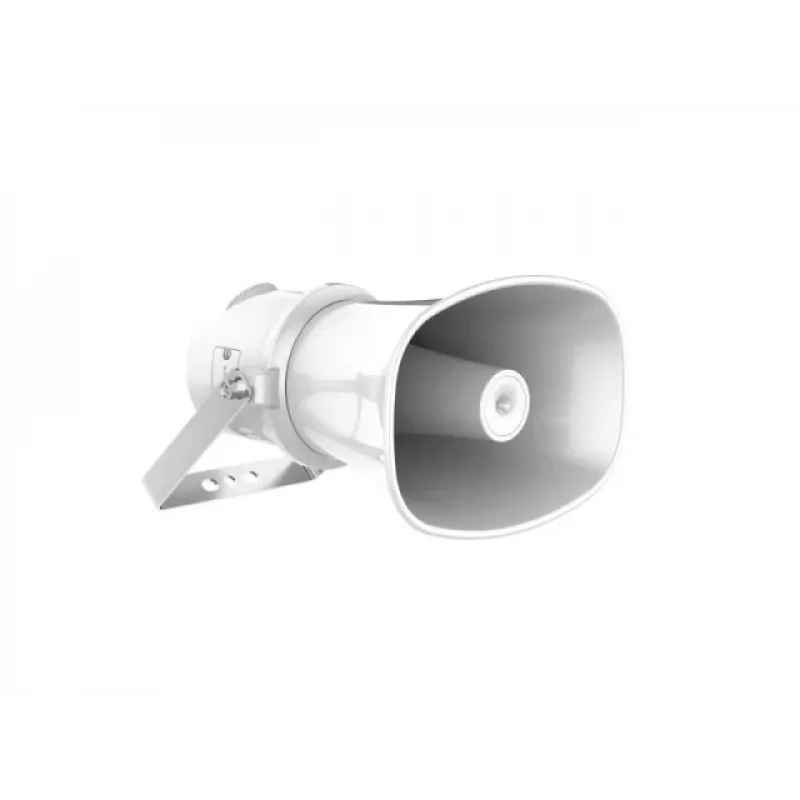

Hikvision altoparlante a tromba di rete 7W (DS-QAZ1307G1-E(C))

The Hikvision Network Horn Speaker 7W (DS-QAZ1307G1-E(C)) is a high-performance IP speaker designed for clear audio broadcasting in security and public address systems. With a maximum output of 7W and a sound pressure level of 100 dB at 1 meter, it ensures audibility over long distances. Its rugged design with IP66 and IK10 ratings makes it suitable for outdoor and harsh environments.

Advantages

This network horn speaker offers seamless integration with Hikvision systems and supports PoE for easy installation. It delivers high-quality audio with multiple compression formats and includes alarm inputs/outputs for event-triggered announcements. The wide operating temperature range (-40°C to 60°C) ensures reliable performance in extreme conditions.

Suitable for

• Outdoor security and surveillance systems
• Industrial facilities and warehouses
• Public address in parking lots, stadiums, and campuses
• Emergency notification and evacuation systems

Key specifications

• Speaker Type: Network Horn Speaker
• Max. Output Power: 7 W
• Max. SPL: 100 dB (1m)
• Frequency Response: 300 Hz – 10 kHz
• Network Interface: 1x RJ45 10/100M Ethernet
• PoE: IEEE 802.3af, Class 3
• Power Supply: 12 VDC, 0.8 A / PoE
• Power Consumption: Max. 10 W
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, MP2L2, G.729, PCM
• Audio Input: 1-ch (Line in, 3.5 mm)
• Audio Output: 1-ch (Line out, 3.5 mm)
• Alarm Input: 1-ch
• Alarm Output: 1-ch
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Operating Temperature: -40 °C to 60 °C
• Material: Aluminum Alloy, PC
• Mounting: Wall Mount
• Network Protocols: IPv4/IPv6, HTTP, HTTPS, FTP, RTSP, RTCP, NTP, UPnP, SNMP, DHCP, PPPoE, DNS, DDNS, ONVIF (Profile S, G, T), ISAPI, SDK, 802.1x, QoS, Bonjour, SMB, NFS, CIFS

Recommendations

For optimal performance, use with Hikvision NVRs or compatible ONVIF devices. Ensure proper mounting and weatherproofing for outdoor installations. The speaker supports both PoE and DC power; choose based on your setup.
