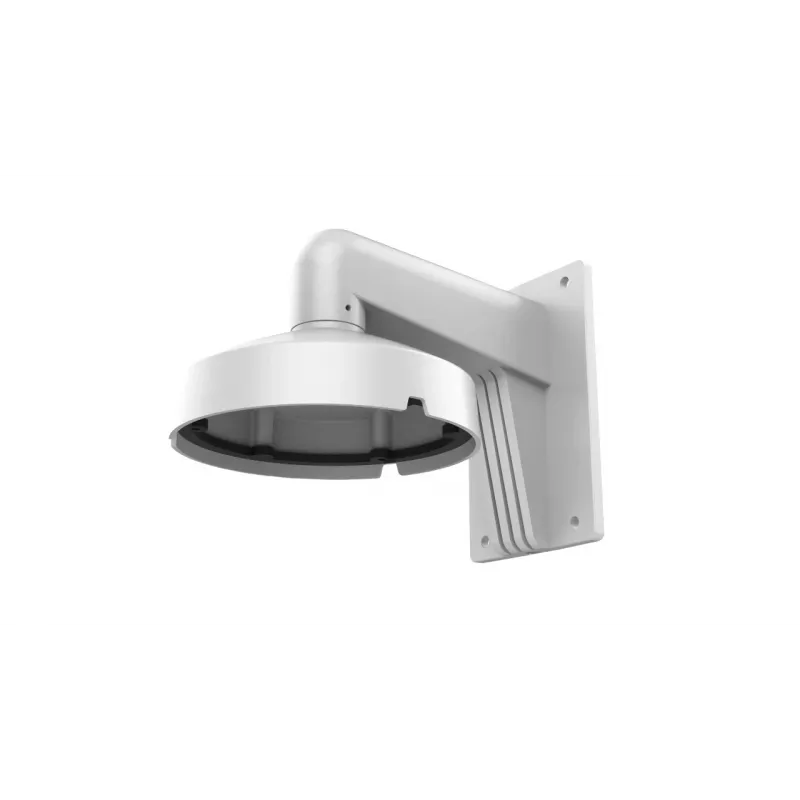

Hikvision DS-1273ZJ-DM25(M1) staffa a parete per telecamere dome, bianco, lega di alluminio

The Hikvision DS-1273ZJ-DM25(M1) is a robust wall mount bracket designed for Hikvision dome cameras. Constructed from high-quality aluminum alloy with a white surface spray treatment, this bracket provides a secure and durable mounting solution for both indoor and outdoor environments. It features an integrated cable routing channel for neat cable management and a junction box functionality for easy cable termination. With a load capacity of 4.5 kg and a wide operating temperature range, it ensures reliable performance in various conditions.

Advantages

This wall mount bracket offers exceptional durability and corrosion resistance, making it suitable for long-term outdoor use. The integrated cable management system protects cables from damage and tampering, while the junction box design simplifies installation and maintenance. Its compatibility with multiple Hikvision dome camera series ensures versatility across different surveillance setups.

Suitable for

• Hikvision DS-2CD21xx series dome cameras
• Hikvision DS-2CE56xx series dome cameras
• Hikvision DS-2CE76xx series dome cameras
• Other Hikvision dome cameras with compatible base

Key specifications

• Mount Type: Wall Mount Bracket
• Material: Aluminum Alloy
• Color: Hik White
• Load Capacity: 4.5 kg (10 lb)
• Mount Base Diameter: 120 mm
• Height: 170 mm
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Application Environment: Indoor/Outdoor
• Surface Treatment: Surface spray treatment
• Installation Method: Screw fixing to wall
• Corrosion Resistance: Yes
• Mounting Hole Pattern: Standardized for compatible Hikvision dome cameras
• Cable Protection: Yes

Recommendations

For optimal performance and security, ensure the mounting surface is solid and capable of supporting the bracket and camera weight. Use appropriate screws and anchors for the wall type. This bracket is ideal for professional surveillance installations requiring a reliable and discreet mounting solution.
