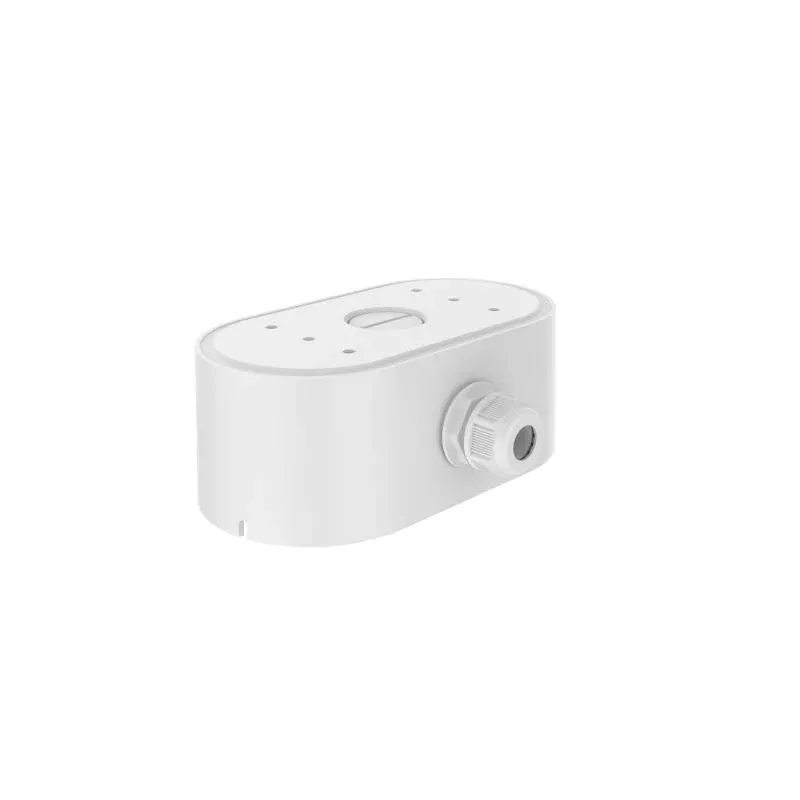

Hikvision DS-1280ZJ-DE7 scatola di collegamento per telecamera

The Hikvision DS-1280ZJ-DE7 is a high-quality junction box designed for secure and reliable cable management in surveillance camera installations. Crafted from durable aluminum alloy with a sleek white finish, this junction box provides IP66-rated waterproof protection, making it suitable for both indoor and outdoor environments. It is compatible with a wide range of Hikvision dome cameras, including DS-2CD21xx, DS-2CE56xx, and DS-2CE76xx series, ensuring a seamless integration into your security system.

Advantages

This junction box offers robust construction and easy wall mounting, providing a safe enclosure for cable connections. Its integrated cable management system helps maintain a tidy installation, while the spray-painted surface treatment ensures long-lasting durability. With a load capacity of 4.5 kg, it can support the weight of compatible cameras securely.

Suitable for

• Hikvision dome cameras (DS-2CD21xx, DS-2CE56xx, DS-2CE76xx series)
• Indoor and outdoor surveillance installations
• Applications requiring waterproof cable management

Key specifications

• Material: Aluminum Alloy
• Color: Hik White
• Mounting Type: Wall Mount
• Ingress Protection: IP66
• Load Capacity: 4.5 kg (9.9 lb)
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Diameter: 137 mm (5.39")
• Height: 42 mm (1.65")
• Surface Treatment: Spray Painting
• Installation Environment: Indoor/Outdoor
• Design Feature: Waterproof

Recommendations

For optimal performance, ensure that the junction box is properly sealed after installation to maintain its IP66 rating. Use appropriate cable glands for external cable entry.
