Hikvision DS-2CD20166G3-IUY/SL(2,8mm)(eF) Telecamera IP 16MP

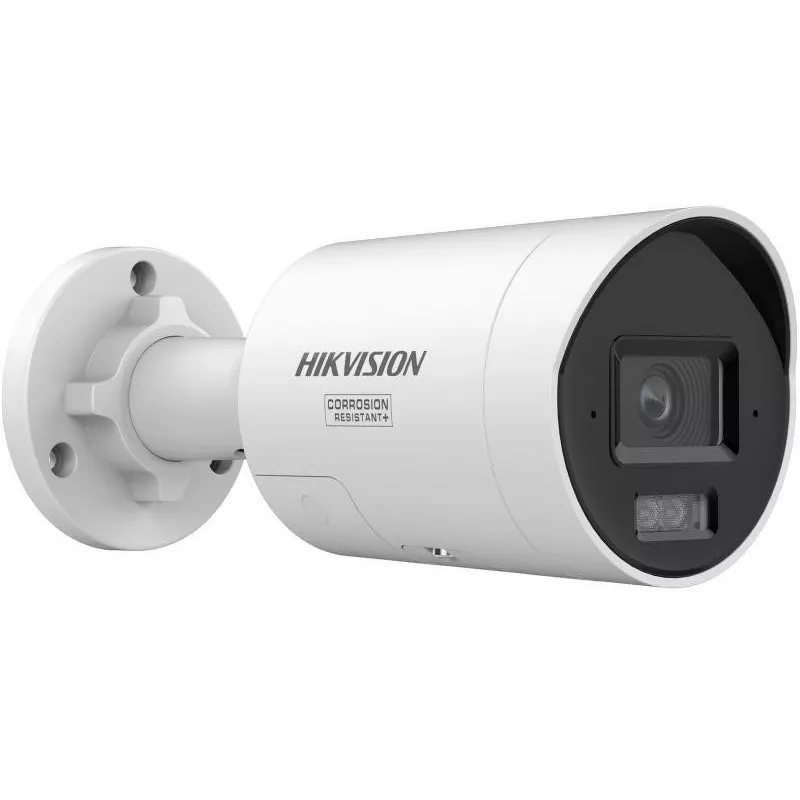

The Hikvision DS-2CD20166G3-IUY/SL(2.8mm)(eF) is a high-performance 16MP fixed bullet network camera designed for professional surveillance. Featuring AcuSense technology for accurate human and vehicle classification, this camera delivers exceptional image quality with 16MP resolution and 130 dB WDR. Ideal for outdoor use with IP67 rating and IR night vision up to 40m.

Advantages

Ultra-high 16MP resolution provides detailed images for large areas. AcuSense smart detection reduces false alarms by distinguishing humans and vehicles. Robust IP67 housing ensures reliable operation in harsh weather conditions.

Suitable for

• Perimeter security for commercial and industrial sites
• Parking lots and outdoor facilities requiring high detail
• Critical infrastructure monitoring

Key specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max Resolution: 16 MP (4608 × 3456)
• Lens: 2.8 mm fixed, F1.6
• Horizontal FoV: 108°
• IR Range: Up to 40 m
• WDR: 130 dB
• Video Compression: H.265+/H.265/H.264+/H.264
• Max Frame Rate: 20 fps @ 16MP, 30 fps @ 4K
• Smart Features: AcuSense (Human/Vehicle), Motion Detection 2.0, Line Crossing, Intrusion
• Audio: Built-in mic, 1-ch input, 1-ch output
• Alarm: 1-ch input, 1-ch output
• Local Storage: MicroSD up to 512 GB
• Network: 1x RJ45 10/100M Ethernet
• Power: 12 VDC, PoE (802.3af)
• Power Consumption: Max 9.5 W (PoE), 8.5 W (12 VDC)
• IP Rating: IP67
• Operating Temperature: -30 °C to 60 °C

Recommendations

For optimal performance, use with Hikvision NVRs and PoE switches. Ensure proper mounting for best field of view.
