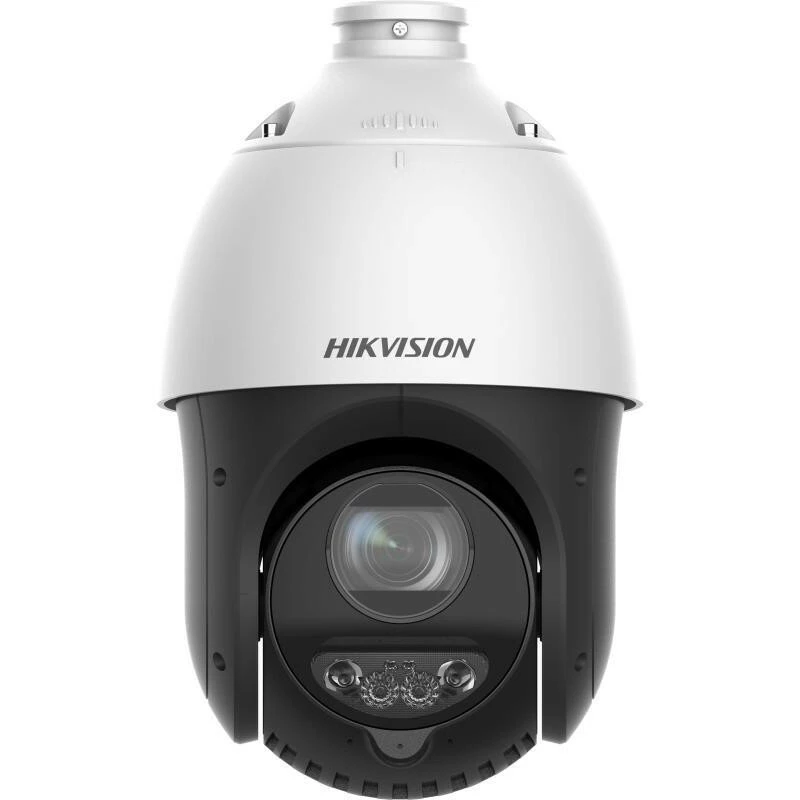

Hikvision DS-2DE4225IWG1-E telecamera dome PTZ IP 2MP 25x IR

The Hikvision DS-2DE4225IWG1-E is a high-performance 2MP IR network PTZ dome camera designed for demanding surveillance applications. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers crisp 1920x1080 resolution at 25/30 fps. With 25x optical zoom (4.8-120mm) and 16x digital zoom, it captures fine details over long distances. The camera provides 360° endless pan, -15° to 90° tilt with auto flip, and up to 100m IR night vision. It supports H.265+/H.265/H.264+/H.264 compression for efficient bandwidth and storage. Smart features include line crossing, intrusion detection, region entrance/exit, object removal, unattended baggage, and face detection. The camera is IP66-rated for outdoor use and IK10-rated for vandal resistance. It supports PoE+ (802.3at) and 12VDC power, with a maximum consumption of 18W. Local storage is available via microSD/SDHC/SDXC up to 256GB. Audio and alarm I/O are included for integration.

Advantages

Exceptional 25x optical zoom with 100m IR range ensures clear images day and night. Smart analytics reduce false alarms and enhance security. Robust IP66/IK10 construction withstands harsh environments. PoE+ simplifies installation with single-cable power and data.

Suitable for

• Perimeter surveillance for commercial and industrial sites
• City surveillance and traffic monitoring
• Large area monitoring such as parking lots, airports, and stadiums
• Critical infrastructure protection

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 2 MP (1920x1080)
• Optical Zoom: 25x (4.8-120mm)
• Digital Zoom: 16x
• IR Range: Up to 100m
• Pan Range: 360° endless
• Tilt Range: -15° to 90° (auto flip)
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: 25/30 fps @ 1080p
• Network: 1x RJ45 10/100M Ethernet
• Power: 12VDC, PoE+ (802.3at), max 18W
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Local Storage: microSD up to 256GB
• Audio I/O: 1-ch input, 1-ch output
• Alarm I/O: 2-ch input, 1-ch output
• Operating Temperature: -30°C to 65°C
• Smart Features: Line crossing, intrusion, region entrance/exit, object removal, unattended baggage, face detection

Recommendations

For optimal performance, use a PoE+ switch or injector. Ensure the mounting surface can support the camera's weight. For outdoor installations, verify proper sealing of connections.
