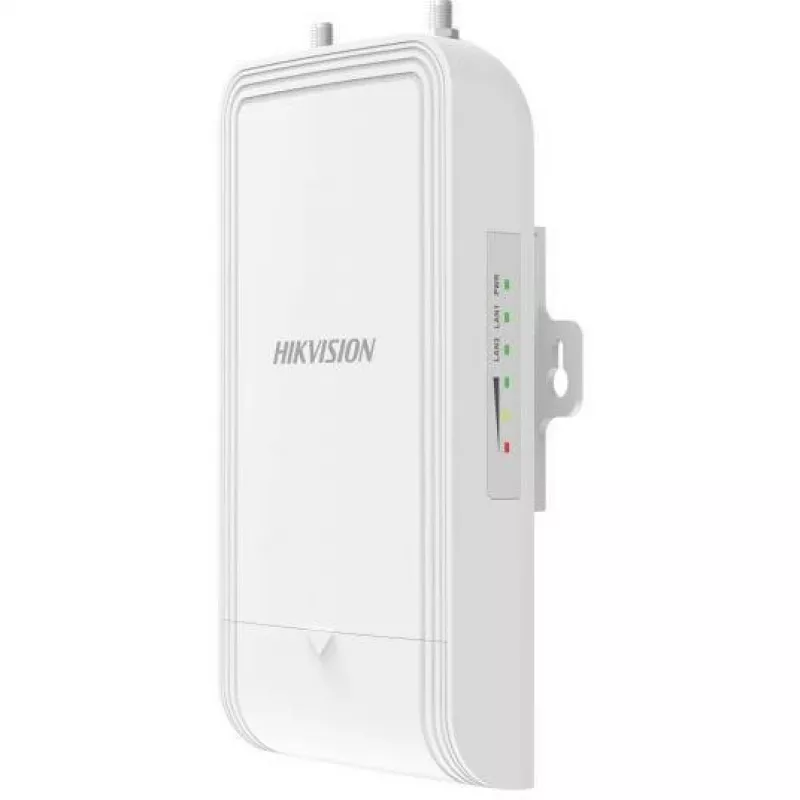

Hikvision DS-3WFB-EI-5ACG bridge WLAN outdoor 5GHz (300Mbps, 16dBi, IP65)

The Hikvision DS-3WFB-EI-5ACG is a rugged 5 GHz outdoor wireless bridge that delivers dependable long-range connectivity for video surveillance, industrial networks, and campus-wide backhaul. With an integrated 16 dBi dual-polarized directional antenna, this single Radio Link can span up to 5 kilometres while sustaining 300 Mbps wireless throughput under clear line-of-sight conditions.

Overview

Purpose-built for outdoor installation, the DS-3WFB-EI-5ACG combines high-gain antennas and a weatherproof IP65 enclosure to ensure stable operation in harsh environments. It supports multiple operational modes—Access Point, Station, and WDS Repeater—allowing you to create flexible point-to-point or point-to-multipoint network links without complex wiring. The device is powered via 24V passive PoE, simplifying deployment and enabling remote power injection over standard Ethernet cabling.

What stands out

• Long-range connectivity: up to 5 km point-to-point
• 300 Mbps wireless speed on the clean 5 GHz band
• Integrated 16 dBi directional antenna with dual polarization
• IP65 weatherproof housing for outdoor durability
• Flexible AP, Station, and Repeater (WDS) operation modes
• 24V passive PoE for simple single-cable installation

Technical details

• Networking standards: IEEE 802.11a/n/ac
• Frequency band: 5 GHz
• Max throughput: 300 Mbps
• Antenna gain: 16 dBi
• Ethernet ports: 1 × 10/100 RJ45
• PoE: passive 24V, 0.5A
• Security: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
• Operating temperature: -30°C to 65°C
• IP rating: IP65
• Max power consumption: <6W

Our verdict

The DS-3WFB-EI-5ACG is a solid choice for IT professionals needing a reliable, cost-effective wireless bridge for outdoor links. Its high-gain antenna and weatherproof build make it a dependable backbone for surveillance and network extension projects.
