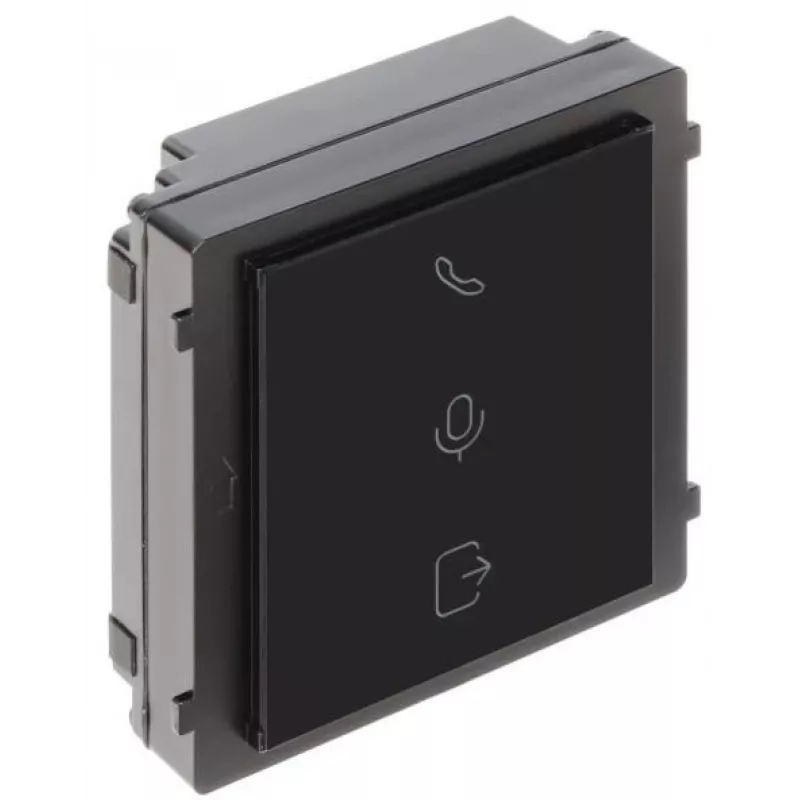

Hikvision DS-KD-IN Modulo indicatore

The Hikvision DS-KD-IN Indicator Module displays call, door open, and two-way communication status. It features backlight compensation and is easy to expand.

Key features

• Indicates status: call, door open, and two-way communication
• Backlight compensation
• Easy to expand

Specifications

• Brand: Hikvision
• Model: DS-KD-IN
• Processor: built-in MCU processor
• Module connection: 2 (1 input, 1 output)
• DIP switch: 8
• Input power: 12 VDC
• Output power: 12 VDC
• Power consumption: ≤2W
• Operating temperature: -40°C to +60°C
• Humidity: 10% to 95%
• Protection rating: IP65
• Mounting: surface and flush mount
• Dimensions: 98.5 mm × 100 mm × 33.7 mm
