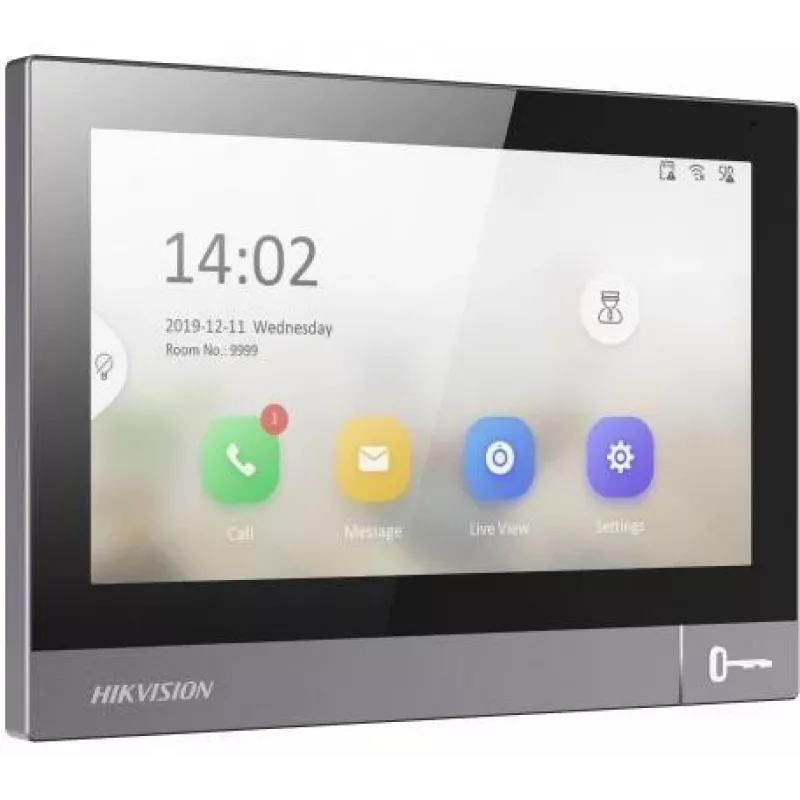

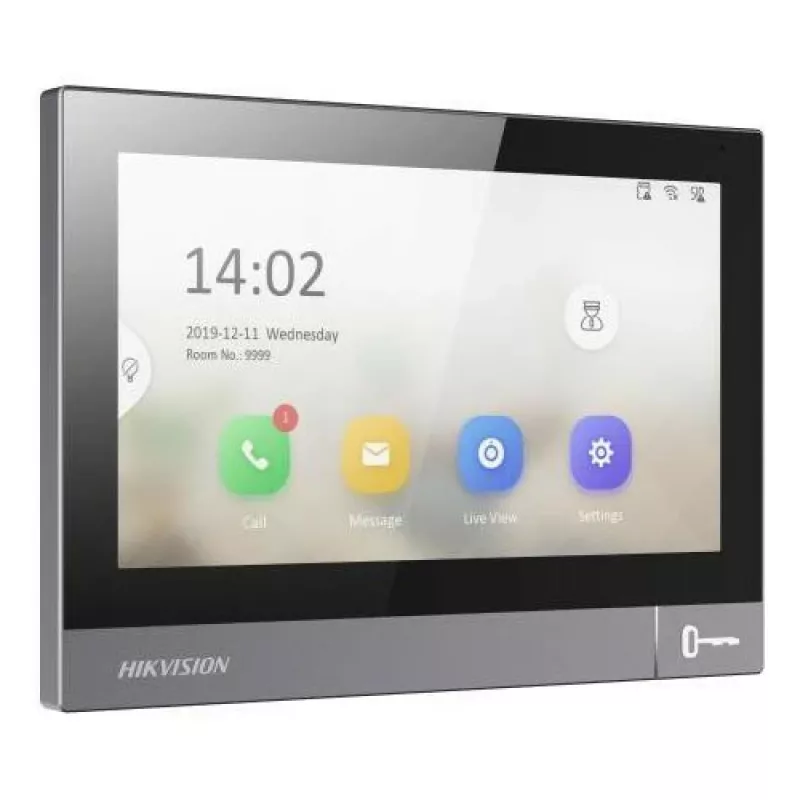

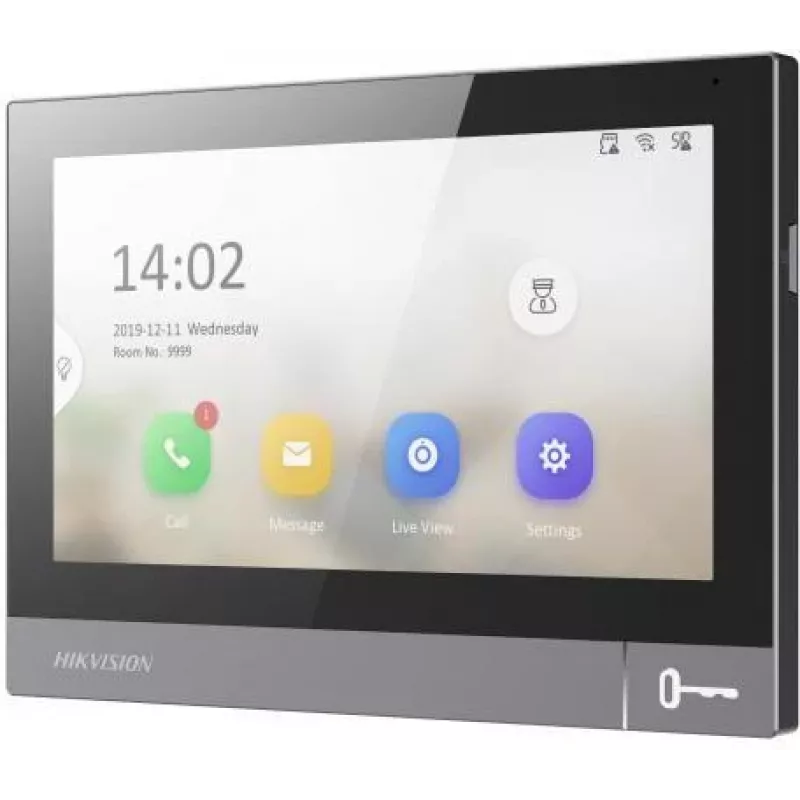

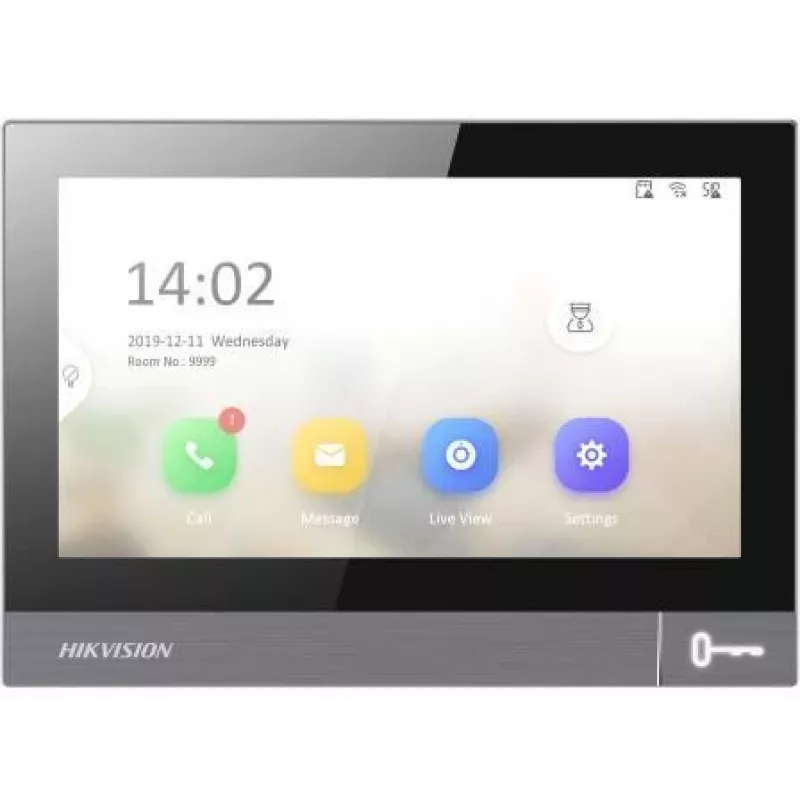

Hikvision DS-KH8381-TE1 Monitor interno citofono video IP 7 pollici touchscreen

The Hikvision DS-KH8381-TE1 is a premium IP video intercom indoor monitor designed for modern residential and commercial access control systems. Featuring a 7-inch TFT LCD capacitive touch screen with 1024×600 resolution, this sleek wall-mounted station delivers crystal-clear video and two-way audio communication. Powered by embedded Linux, it supports Wi-Fi (2.4 GHz) and PoE for flexible installation. With 8 alarm inputs, 2 relay outputs, and RS-485 interfaces, it integrates seamlessly into larger security ecosystems. The aluminum alloy front panel ensures durability and a sophisticated look.

Advantages

High-resolution 7-inch touch screen for intuitive operation; built-in microphone and speaker for hands-free communication; supports remote unlocking and message reception; flexible power options (12 VDC or PoE); expandable storage via TF card up to 128 GB; robust aluminum front panel for long-lasting performance.

Suitable for

• Residential apartment buildings
• Office complexes
• Gated communities
• Smart home automation systems

Key specifications

• Display: 7-inch TFT LCD capacitive touch screen, 1024×600
• Operating System: Embedded Linux
• Audio: Built-in omnidirectional microphone and loudspeaker, G.711 U/A compression
• Network: 1× RJ45 10/100 Mbps Ethernet, Wi-Fi 802.11b/g/n (2.4 GHz)
• Alarm: 8 inputs, 2 relay outputs
• RS-485: 2-channel
• Power: 12 VDC or PoE (IEEE 802.3af), max 6 W
• Storage: TF card up to 128 GB (not included)
• Material: Aluminum alloy front panel, plastic rear panel
• Installation: Wall mounting (surface or flush)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the TF card is purchased separately if local recording is required. This monitor is best paired with Hikvision outdoor stations for a complete video intercom solution.
