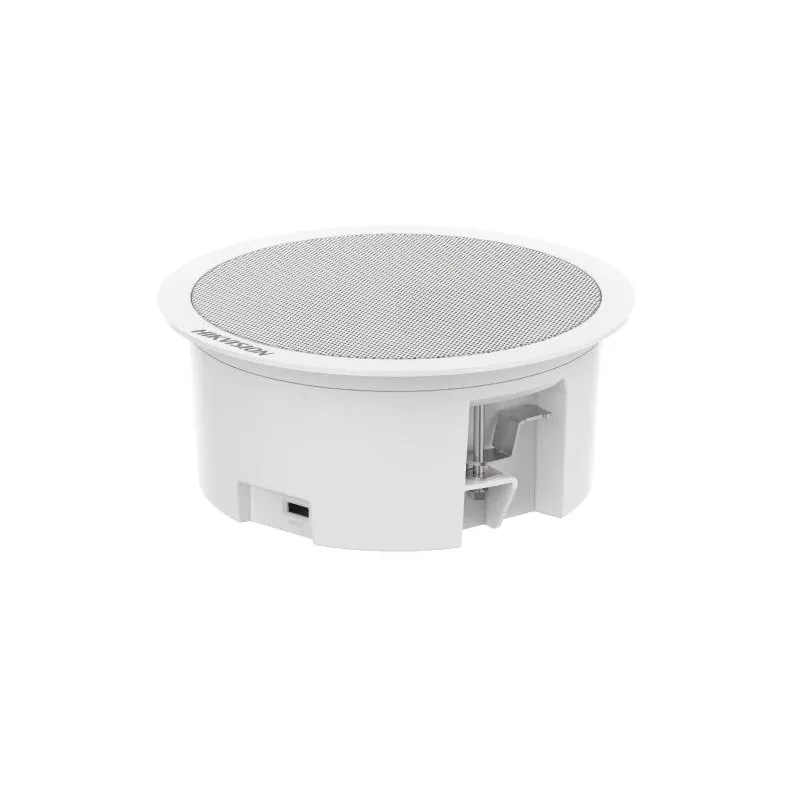

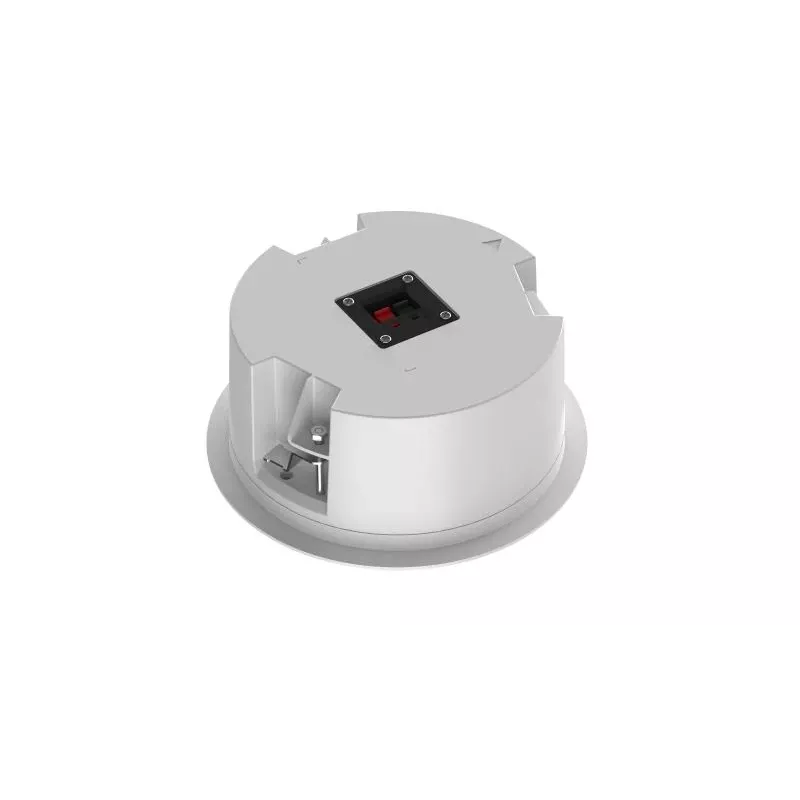

Hikvision DS-QAZ0206G1-S Diffusore di rete da soffitto 6 W bianco cablato

Install the Hikvision DS-QAZ0206G1-S in a retail store, office corridor, or classroom to broadcast clear announcements and background music over your IP network. This white ceiling speaker delivers 6 W of rated power through a 5.25-inch full-range driver, ensuring intelligible voice and pleasant audio across the coverage area. Power it directly from a PoE switch (IEEE 802.3af) or a 12 VDC supply, and connect it via the built-in RJ45 Ethernet port for simple integration into existing network infrastructure.

Key specifications

• Rated power output: 6 W
• Speaker unit: 5.25 inch full-range
• Frequency response: 120 Hz – 18 kHz
• Sound pressure level: 90 dB (1W/1m)
• Connectivity: Wired (RJ45 10/100M Ethernet)
• Power over Ethernet: IEEE 802.3af, Class 3
• Alternative power: 12 VDC
• Audio input: 3.5 mm line in
• Audio compression: G.711, G.722, G.726, MP2L2, AAC, PCM
• Network protocols: TCP/IP, UDP, HTTP, DHCP, DNS, RTP, RTSP, SIP
• Material: ABS
• Colour: White
• Mounting: Ceiling, hole diameter 165 mm
• Operating temperature: -10 °C to 55 °C
• Power consumption: max. 7 W
• Operating humidity: 10% to 90% non-condensing

Why choose it

The DS-QAZ0206G1-S combines reliable network audio distribution with straightforward PoE installation. Its wide frequency response and high sensitivity make it suitable for both voice paging and background music, while the ABS housing ensures durability in indoor environments.

Ideal use cases

• IP-based public address systems in commercial buildings
• Background music in retail and hospitality venues
• Announcements in educational and healthcare facilities

Good to know

This speaker supports SIP protocol for integration with VoIP phone systems, enabling direct paging from desk phones. The 3.5 mm line input allows connection of local audio sources when network streaming is not required.
