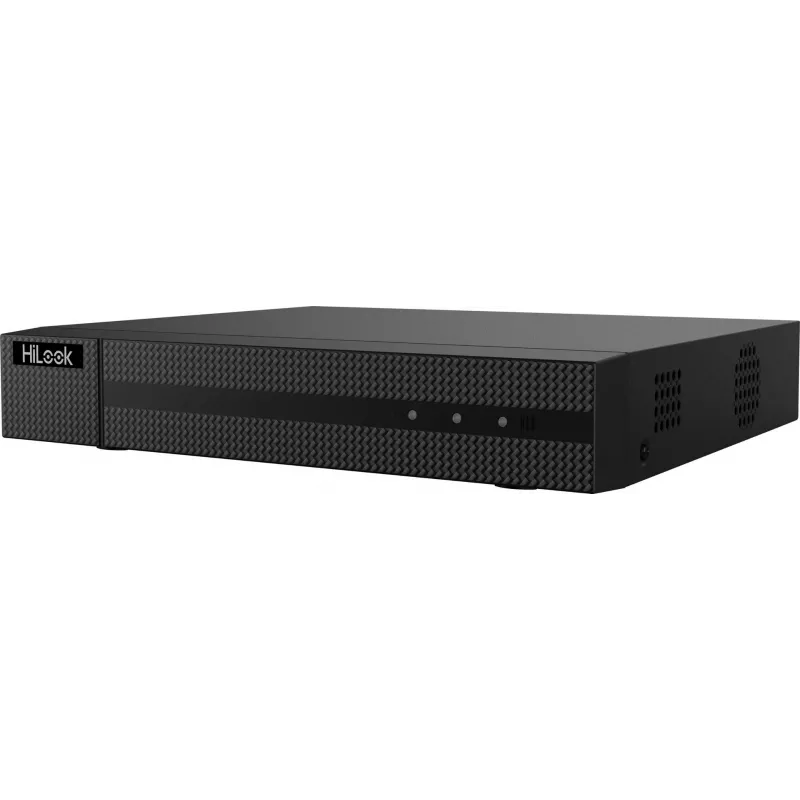

Hikvision DVR-204U-M1/T Registratore DVR HiLook 4 canali 8MP 5-in-1

The Hikvision DVR-204U-M1/T is a high-performance 4-channel 5-in-1 DVR from the HiLook series, designed for reliable video surveillance. It supports up to 8MP resolution and combines analog and IP camera inputs for flexible system setup.

Advantages

This DVR offers exceptional value with its 5-in-1 technology, supporting HDTVI, AHD, HDCVI, and CVBS analog cameras, plus two additional IP channels. The H.265 Pro+ compression reduces bandwidth and storage requirements without compromising image quality. With a single SATA interface supporting up to 10TB, it provides ample storage for extended recording.

Suitable for

• Small to medium-sized businesses
• Retail stores and offices
• Residential security systems
• Warehouses and storage facilities

Key specifications

• Video Input: 4-ch BNC (analog) + 2-ch IP (up to 6 total)
• Max Analog Resolution: 8MP
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Video Output: 1x HDMI (up to 4K), 1x VGA
• Audio: 1-ch RCA input, 1-ch RCA output, two-way audio
• Storage: 1x SATA, up to 10TB per HDD
• Network: 1x RJ45 10/100/1000 Mbps
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Power: 12 VDC, ≤10W (without HDD)
• Chassis: 1U Desktop

Recommendations

For optimal performance, pair this DVR with Hikvision HiLook analog cameras and use high-quality BNC cables. Ensure the HDD is rated for 24/7 surveillance use. The DVR supports Coaxitron for remote camera control over coax.
