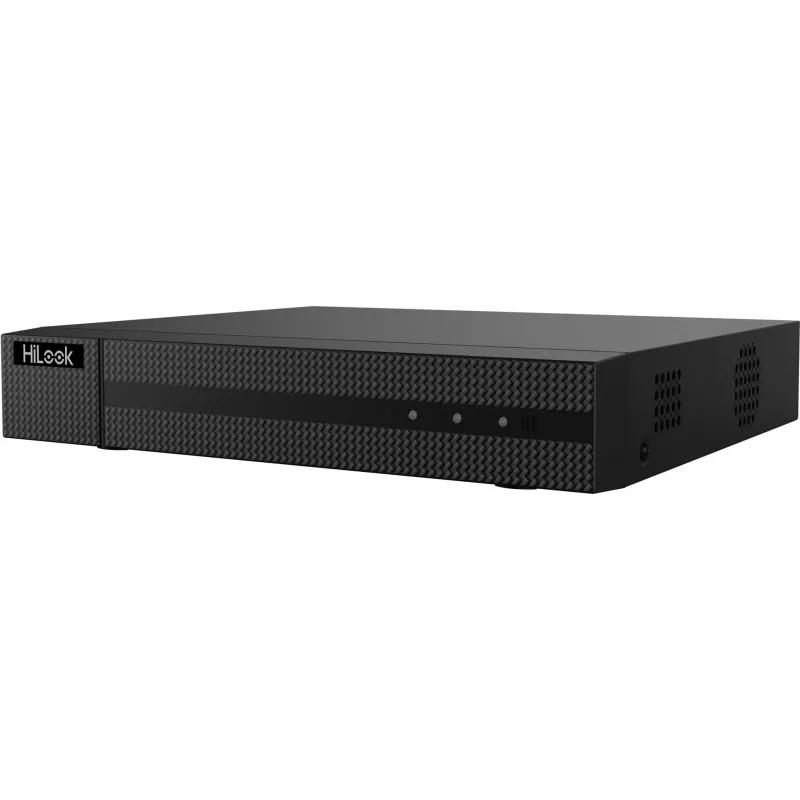

Hikvision HiLook DVR-4CH-5MP Registratore video digitale (DVR) Nero

The Hikvision HiLook DVR-4CH-5MP is a reliable and cost-effective digital video recorder designed for small to medium surveillance systems. It supports up to 4 analog cameras with resolutions up to 5 MP, and can be expanded with 1 additional IP camera when analog inputs are disabled. Featuring H.265 Pro+ compression, this DVR ensures efficient storage and bandwidth usage without compromising video quality.

Advantages

This DVR offers a perfect balance of performance and affordability. With support for multiple analog camera types (HDTVI, AHD, HDCVI, CVBS), it provides flexibility in camera selection. The H.265 Pro+ compression technology reduces storage requirements by up to 50% compared to H.264, while maintaining high-quality video. The compact design and low power consumption make it ideal for home or small business use.

Suitable for

• Small retail stores
• Office surveillance
• Home security systems
• Warehouse monitoring

Key specifications

• 4 analog video input channels (BNC, 1.0 Vp-p, 75 Ω)
• 1 IP video input channel (up to 6 MP, max 5 total with analog disabled)
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression
• Encoding resolution: 5 MP Lite, 4 MP Lite, 1080p, 720p, WD1, 4CIF, VGA, CIF
• Main stream frame rate: 12 fps at 5 MP Lite, 15 fps at 1080p
• 1 audio input (RCA) and 1 two-way audio (RCA)
• 1 HDMI output (1920×1080 @ 60 Hz), 1 VGA output (1920×1080 @ 60 Hz)
• 1 SATA interface for HDD up to 10 TB
• 1 RJ45 10/100 Mbps Ethernet port
• 2 USB 2.0 ports
• Power supply: 12 VDC, consumption ≤ 8 W (without HDD)

Recommendations

For optimal performance, pair this DVR with Hikvision HiLook analog cameras and a high-quality surveillance-grade hard drive. Ensure proper ventilation and use a stable 12 VDC power source.
