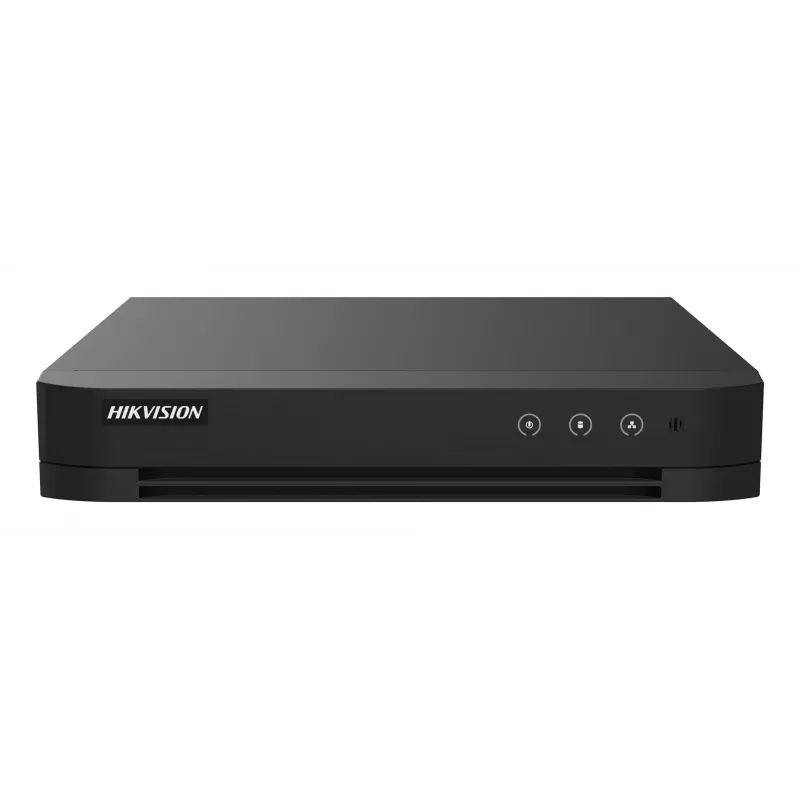

Hikvision iDS-7204HQHI-M1/T DVR AcuSense 5-in-1 a 4 canali

The Hikvision iDS-7204HQHI-M1/T is a high-performance 4-channel 5-in-1 AcuSense DVR that supports HDTVI, AHD, CVI, CVBS, and IP cameras. With advanced motion detection 2.0 and perimeter protection, it provides accurate human and vehicle analysis, reducing false alarms. This DVR is ideal for small to medium-sized surveillance systems requiring reliable and intelligent video recording.

Advantages

AcuSense technology ensures efficient event detection by filtering out irrelevant motion. The hybrid capability allows integration of up to 6 cameras (4 analog + 2 IP) with resolutions up to 6 MP. H.265 Pro+ compression saves storage space without compromising image quality. The compact 1U chassis fits easily into any setup.

Suitable for

• Retail stores
• Office buildings
• Residential properties
• Small warehouses

Key specifications

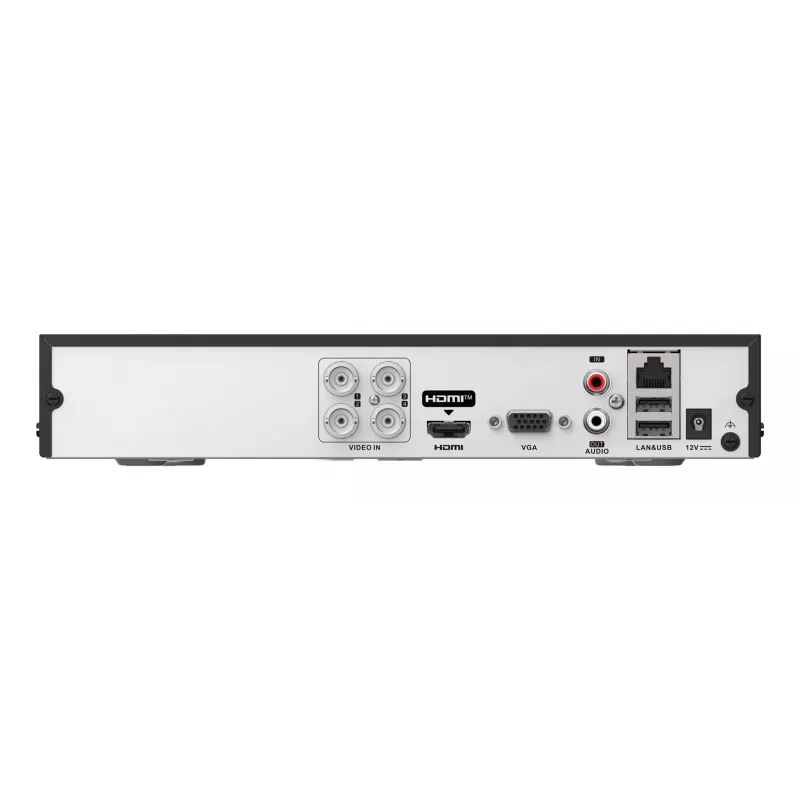

• Video Input: 4-ch BNC (HDTVI/AHD/CVI/CVBS) + 2-ch IP (up to 6-ch total)
• Analog Video Resolution: Up to 5 MP
• IP Video Resolution: Up to 6 MP
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio Input: 1-ch RCA (2-ch via coaxial)
• HDMI Output: 1-ch, up to 4K (3840 × 2160)
• VGA Output: 1-ch, up to 1920 × 1080
• SATA Interface: 1 SATA, up to 10 TB
• Network Interface: 1 RJ45 10/100 Mbps
• USB Interface: 2 × USB 2.0
• Power Supply: 12 VDC, ≤ 10 W (without HDD)
• Operating Temperature: -10 °C to +55 °C

Recommendations

For optimal performance, pair with Hikvision AcuSense cameras and a high-capacity surveillance HDD. Ensure proper ventilation and use a stable 12 VDC power source.
