Tiandy TC-R3210 48HA Registratore NVR IP 10 canali 8-PoE Lite

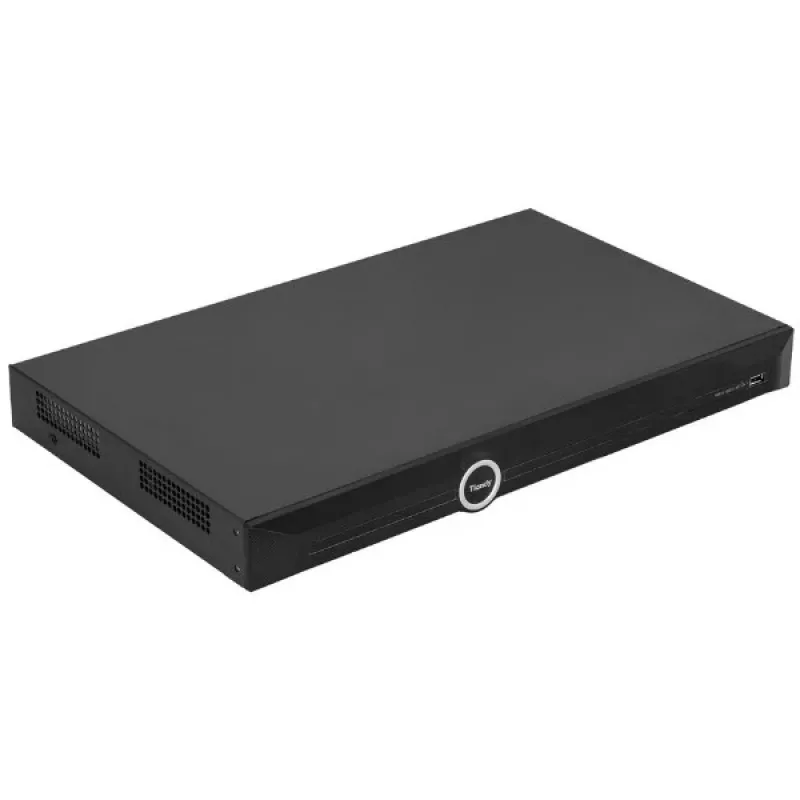

The Tiandy TC-R3210 48HA is a high-performance 10-channel IP NVR recorder designed for small to medium-sized surveillance systems. With 8 PoE Lite ports and a 120W PoE budget, it simplifies camera installation by providing both data and power over a single cable. Supporting up to 8MP (4K) resolution and H.265+ compression, this recorder delivers crisp, efficient video recording.

Advantages

Integrated PoE switch eliminates the need for separate power supplies, reducing installation costs. H.265+ compression saves up to 50% bandwidth and storage compared to H.264. The compact design fits easily into any network cabinet.

Suitable for

• Retail stores and small offices
• Warehouses and logistics centers
• Residential surveillance systems
• Any location requiring up to 10 IP cameras with PoE

Key specifications

• Video Input: 10 IP channels
• PoE Ports: 8 (IEEE 802.3af/at), 120W budget
• Recording Resolution: Up to 8MP (4K)
• Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI, 1x VGA
• Decoding: 1-ch@8MP, 4-ch@1080P
• Audio: 1x RCA In, 1x RCA Out
• Alarm: 4x In, 1x Out
• HDD: 1x SATA, up to 10TB
• Network: 1x RJ45 10/100Mbps
• USB: 2x USB 2.0
• Bandwidth: 80 Mbps incoming/outgoing
• Power Supply: DC 48V
• Operating Temperature: -10°C to 55°C
• Mobile App: Tiandy View Pro (TVP)

Recommendations

For optimal performance, use Tiandy PoE cameras and a high-quality SATA HDD (up to 10TB). Ensure the network switch supports at least 100Mbps per port. The recorder is compatible with Tiandy View Pro app for remote monitoring.
