HIROSE connettore RJ45 STP TM11 grigio 100 pezzi Cat. 5e - H7540.12-100

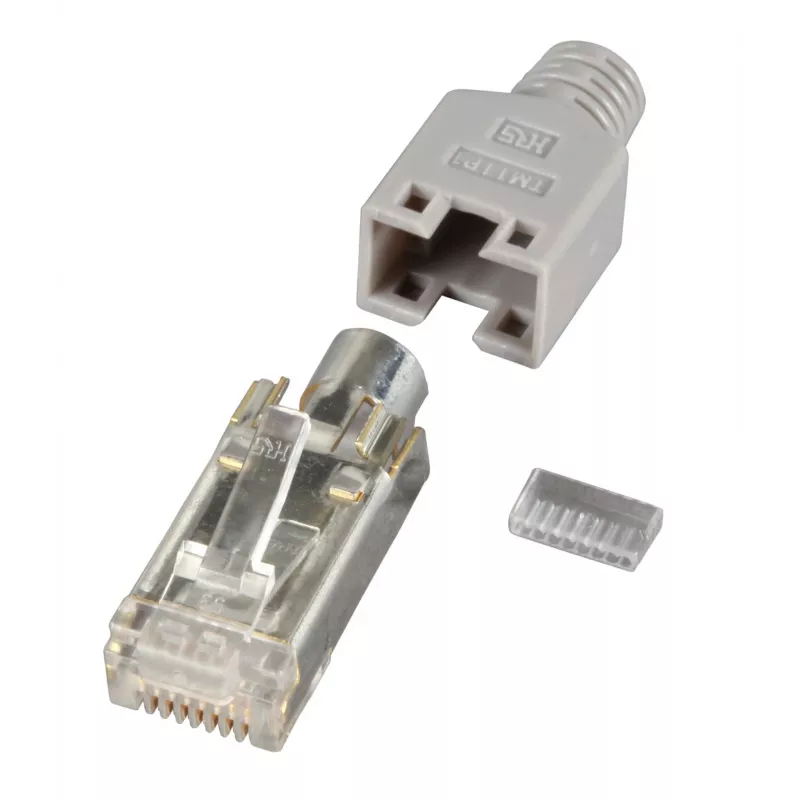

The HIROSE TM11 RJ45 plug is a high-quality shielded connector designed for reliable Ethernet network connections. This pack contains 100 pieces of grey STP (Shielded Twisted Pair) plugs, ideal for creating Cat. 5e patch cables. The connectors feature gold-plated contacts for optimal conductivity and corrosion resistance, and are compatible with both solid and stranded conductors (24-26 AWG) with a cable jacket diameter of 5.0-6.5 mm. The integrated strain relief ensures durable cable retention.

Advantages

These RJ45 plugs offer excellent shielding performance, reducing electromagnetic interference for stable data transmission. The robust polycarbonate housing and phosphor bronze contacts ensure long-lasting reliability. With a mating cycle rating of 750, they are suitable for frequent plugging and unplugging. The UL 94V-0 flammability rating adds safety in various environments.

Suitable for

• Ethernet networking and data transmission applications
• Structured cabling systems requiring Cat. 5e performance
• Custom patch cable assembly for IT professionals
• Industrial and commercial network installations

Key specifications

• Connector Type: RJ45 Plug
• Shielding: STP (Shielded Twisted Pair)
• Category: Cat. 5e
• Number of Positions: 8P8C
• Termination Method: Crimp
• Color: Grey
• Quantity: 100 pieces per pack
• Contact Plating: Gold (50µin)
• Contact Material: Phosphor Bronze
• Housing Material: Polycarbonate (PC)
• Conductor Gauge: 24-26 AWG
• Cable Jacket Diameter: 5.0-6.5 mm
• Operating Temperature: -10°C to +60°C
• Mating Cycles: 750
• Flammability Rating: UL 94V-0
• RoHS Compliant: Yes
• Manufacturer Series: HIROSE TM11

Recommendations

For optimal performance, use with Cat. 5e or higher twisted pair cable and a suitable crimping tool. Ensure proper cable preparation and insertion to maintain shielding integrity.
