Alimentatore 12V, 8.5A, 100W, IP67

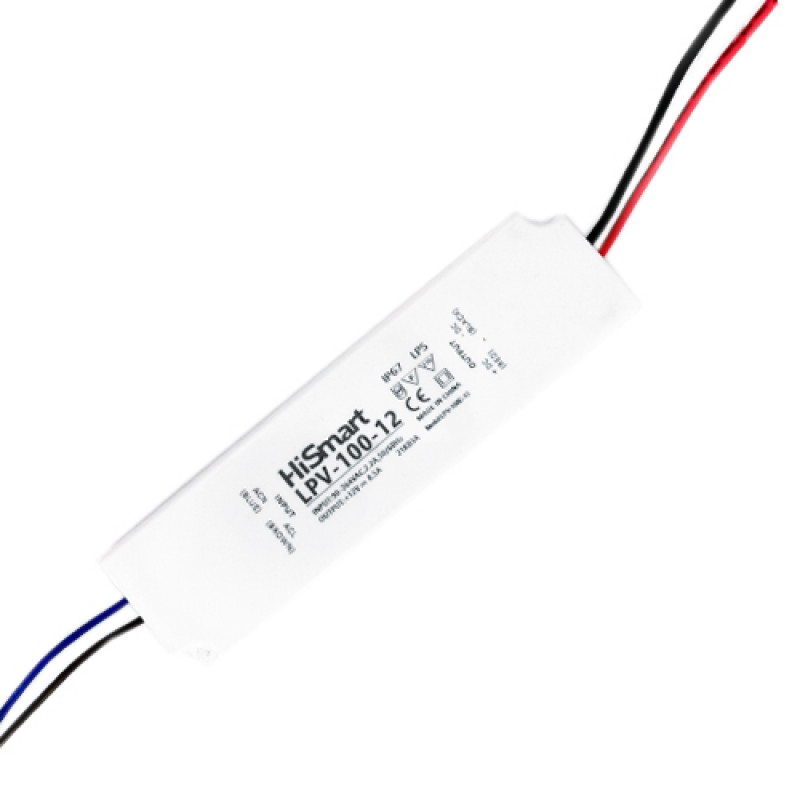

The HISMART LPV-100-12 stands out as a robust 100-watt constant voltage LED driver, engineered for demanding environments where moisture and dust are a concern. Its fully sealed IP67-rated aluminum housing ensures reliable operation even when exposed to the elements, making it a superior choice over open-frame power supplies for outdoor signage, architectural lighting, and industrial applications.

Highlights

• Delivers a stable 12V DC output at up to 8.5A, providing 100W of clean power for LED strips, modules, and other low-voltage devices.
• IP67 ingress protection: completely protected against dust and capable of withstanding temporary immersion in water, ideal for harsh conditions.
• Wide AC input range of 100-240V with active power factor correction (>0.9) ensures compatibility with global mains supplies and efficient energy use.
• Built-in safeguards against overload, short circuit, over voltage, and over temperature protect both the driver and connected equipment.
• Passive cooling via free air convection—no noisy fans—and a high MTBF of over 50,000 hours for maintenance-free longevity.

In daily use

Installation is straightforward thanks to pre-wired input and output leads, eliminating the need for terminal blocks. The compact, low-profile design fits into tight spaces, while the rugged enclosure shrugs off vibration and temperature swings from -20°C to +50°C. With efficiency above 85% and low ripple (<150mVp-p), your LEDs will run flicker-free and bright for years. CE and RoHS certifications provide peace of mind for commercial projects.

Full specifications

• Brand: HISMART
• Model: LPV-100-12
• Output voltage: 12V DC
• Output current: 8.5A
• Output power: 100W
• Input voltage: 100-240V AC, 50/60Hz
• Efficiency: >85%
• Power factor: >0.9
• IP rating: IP67
• Cooling: Free air convection
• Operating temperature: -20°C to +50°C
• Housing material: Aluminum alloy
• Protections: Overload, short circuit, over voltage, over temperature
• Ripple & noise: <150mVp-p
• MTBF: >50,000 hours
• Certifications: CE, RoHS
• Dimming: Non-dimmable

Final note

For installers and integrators seeking a dependable, weatherproof power solution, the HISMART LPV-100-12 delivers consistent performance without compromise. Its sealed design and comprehensive protections make it a set-and-forget component in any 12V LED system.
