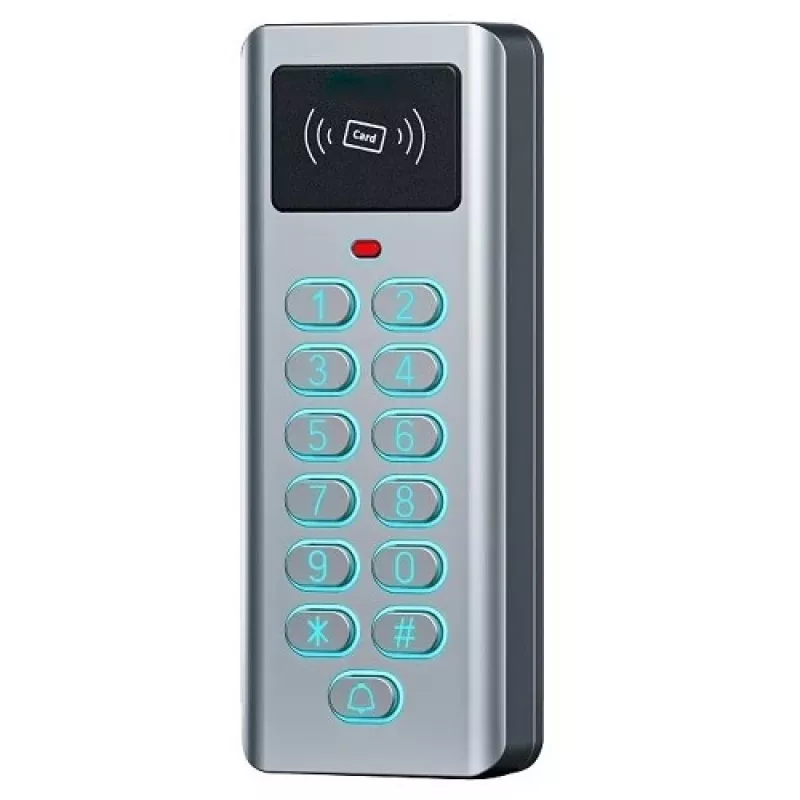

HISMART TV993741 tastiera per controllo accessi con lettore carte EM 125kHz e controller integrato

This access control keypad with integrated EM 125 kHz proximity reader and controller delivers a complete, all-in-one security solution for doors, gates, and restricted zones. Its standout capability is supporting up to 2,000 users with three flexible authentication modes — PIN, card, or card and PIN — enabling precise access management without extra hardware.

Advantages

The integrated controller eliminates the need for a separate control board, simplifying installation and reducing wiring errors. The surface-mounted ABS case meets IP54 ingress protection, suitable for indoor and sheltered outdoor use. A backlit keypad ensures clear visibility in low light, while built-in door open and tamper alarms provide immediate notification of security breaches.

Suitable for

• Small to medium-sized offices and commercial premises
• Residential complexes and shared facilities
• Server rooms, storage areas, and restricted equipment enclosures
• Semi-outdoor entrances where weather resistance is required

Key specifications

• Authentication: PIN, EM proximity card, or card and PIN
• User capacity: up to 2,000 users
• Card compatibility: EM-ID 125 kHz
• Integrated controller: yes
• Output interface: relay output and Wiegand 26/34 input/output
• Adjustable door open time: 0–99 seconds
• Operating voltage: 12 V DC
• Standby current: <100 mA; active current: <150 mA
• Operating temperature: -20 °C to 60 °C
• Operating humidity: 10 % to 90 %

Recommendations

For reliable, cost-effective access control in offices or residential buildings, the HISMART TV993741 offers a straightforward installation and flexible user management. Pair it with an electric strike or magnetic lock for a complete door entry system.
