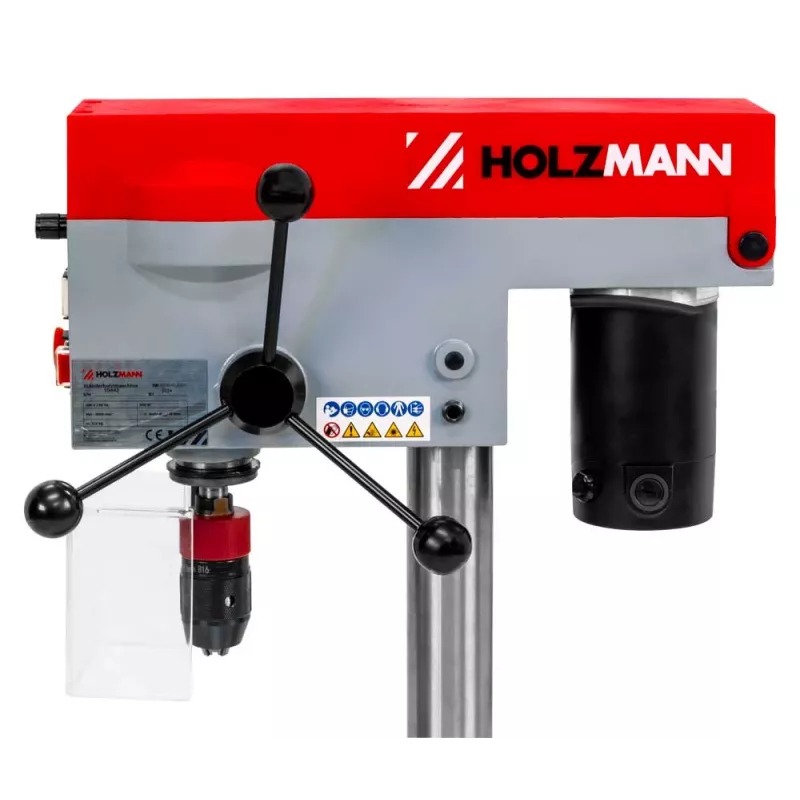

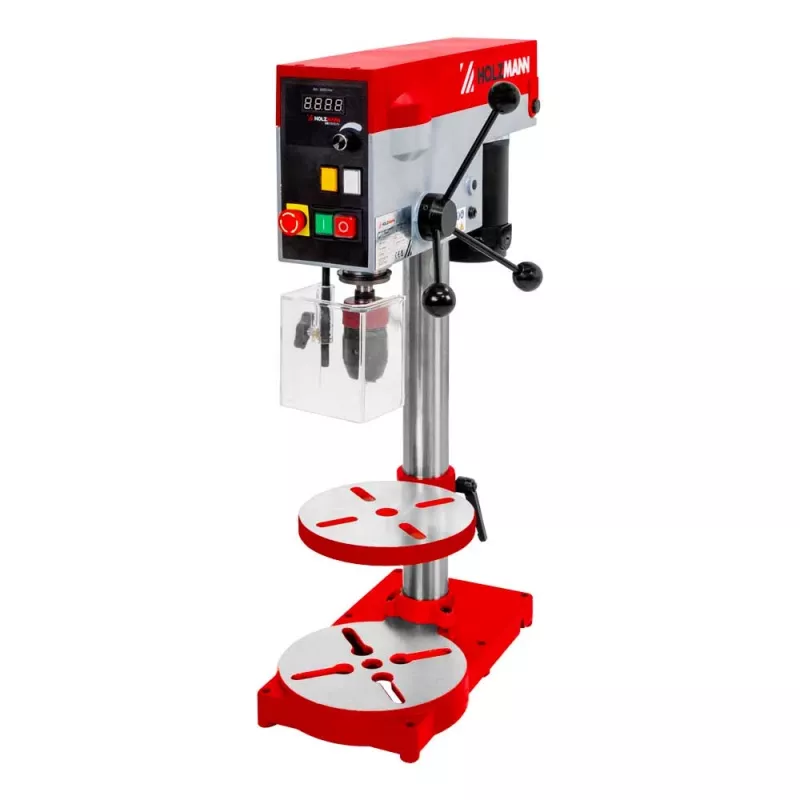

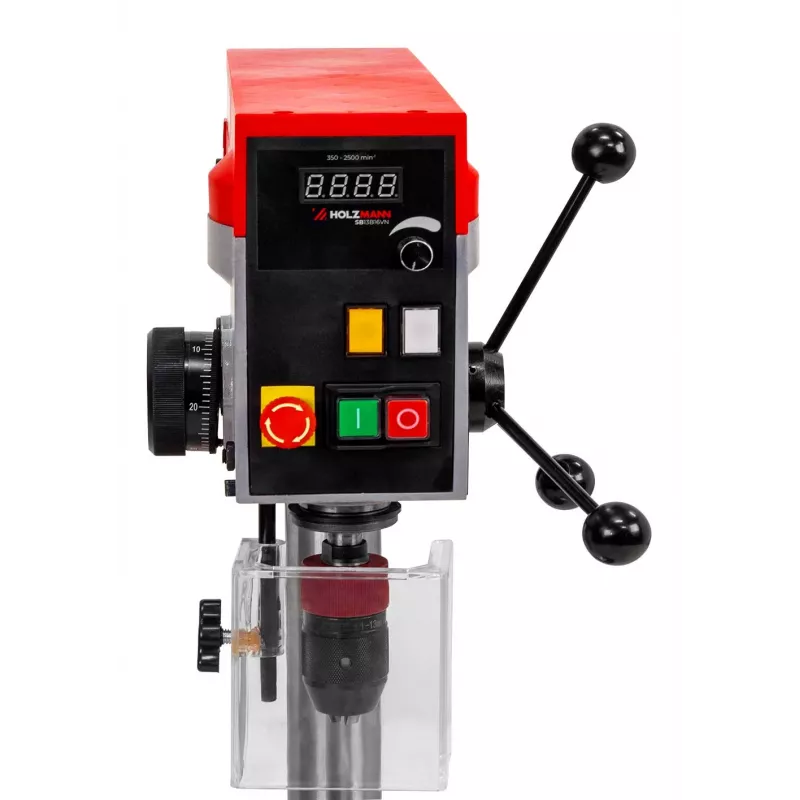

Holzmann Maschinen SB13B16VN_230V trapano a colonna 300 W 230 V

The Holzmann Maschinen SB13B16VN_230V is a compact bench drill built around a 300 W motor and a B16 spindle taper, giving it a 13 mm drilling capacity in steel. Its five-speed gearbox spans 500 to 2500 rpm, so you can match speed to material without changing belts mid-job. The 160 x 160 mm work table tilts ±45° and rotates 360°, while the 46 mm column and 104 mm throat depth keep the head rigid during heavier cuts.

Highlights

• 300 W motor with 5 spindle speeds (500–2500 rpm)
• 13 mm max drilling capacity in steel, B16 spindle taper
• Keyed chuck 1–13 mm, spindle stroke 50 mm
• Work table 160 x 160 mm, tilts ±45° and rotates 360°
• Max distance spindle-to-table 200 mm, spindle-to-base 290 mm
• Compact footprint: base plate 315 x 200 mm, overall height 580 mm

In daily use

The SB13B16VN_230V suits workshops where bench space is tight but precision matters. The 360° rotating table and ±45° tilt let you angle workpieces for angled holes without a separate fixture. With a 50 mm spindle stroke and 200 mm clearance to the table, it handles drilling in small metal parts, wood, and plastics. The keyed chuck grips bits from 1 to 13 mm, covering most common twist drills and Forstner bits.

Full specifications

• Motor power (S1): 300 W
• Voltage: 230 V / 50 Hz
• Max drilling capacity (steel): 13 mm
• Spindle taper: B16
• Chuck capacity: 1–13 mm, keyed
• Number of spindle speeds: 5
• Spindle speed range: 500–2500 rpm
• Spindle stroke: 50 mm
• Throat depth: 104 mm
• Work table size: 160 x 160 mm
• Max distance spindle to table: 200 mm
• Max distance spindle to base: 290 mm
• Column diameter: 46 mm
• Table tilt: ±45°
• Table rotation: 360°
• Overall height: 580 mm
• Base plate size: 315 x 200 mm
• Noise level: < 80 dB(A)

Final note

The SB13B16VN_230V delivers a full-size drilling envelope in a bench-top package, with the rigidity of a 46 mm column and the flexibility of a tilting, rotating table.
